AWR6843AOPEVM: The different BSS firmware with same config at 1DFFT output different.

Bryan Sun

Part Number: AWR6843AOPEVM

Hi Experts,

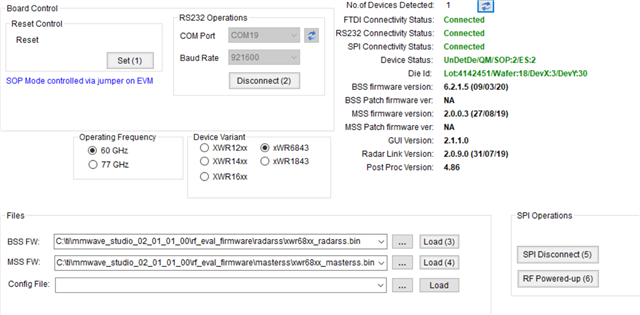

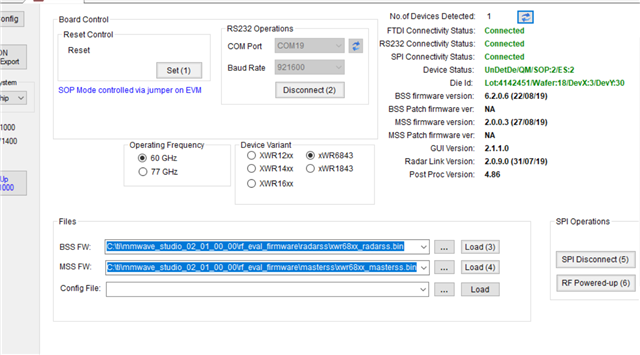

The different BSS firmware with same config at 1DFFT output will have about 5dbFs different. As my point, with same config consider this temperature drift, will not lead such big different. I want know the aspects lead this different. The BSS firmwares(6.2.0.6 and 6.2.1.5, one is local studio_02_01_00_00 another is local studio_02_01_01_00) are describe as below:

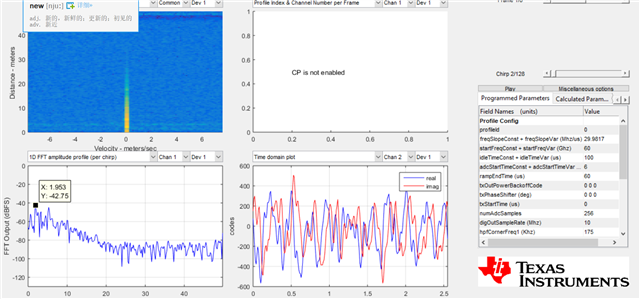

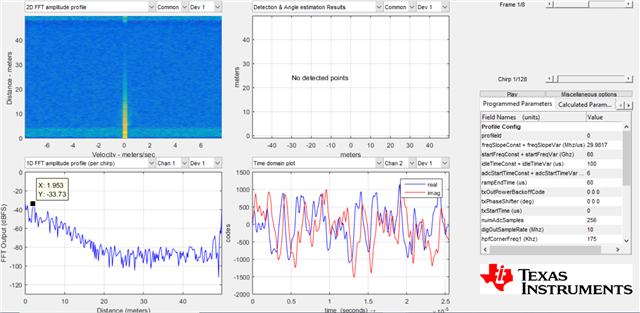

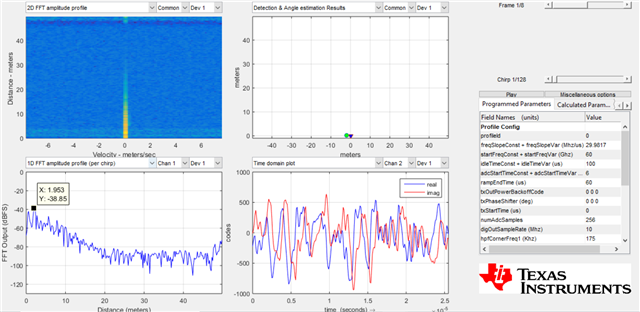

What' s more the config is default config, and test result is below.

over 4 years ago

0 zigang Yang over 4 years ago

TI__Mastermind 40555 points

HI, there:

The newer version of the firmware added the power-up calibration for TX gain and RX gain, which can result in your final received signal power difference.

Best,

Zigang

0 Bryan Sun over 4 years ago in reply to zigang Yang

TI__Intellectual 2415 points

Hi, zigang

Thanks for you response. Compare with new and old version, I have three questions here, the picture as below.

Q1.Why the old version which without calibration have the higher signal power and the effect of power-up calibration.

+1 zigang Yang over 4 years ago in reply to Bryan Sun

TI__Mastermind 40555 points

The calibration meant to remove the device variation.

And the received power that shows in the figure is not the TX power difference only, it is affected by loop back gain which includes both TX and RX gain.

Best,

Zigang
