Part Number: LDC1000EVM

Hello,

i buy two LDC1000EVM from TI. One Board run. The second board is faulty. Testet Both on Same PC with Win-7 System.

on the faulty Board it come Sound when i Connect to PC. The red and Green LED Blink, Then Both LED Turn off. How

to do?

over 3 years ago

0 Justin Beigel over 3 years ago

TI__Mastermind 18545 points

Hello,

Can you try to perform a firmware update on the faulty board by going through the Sensing Solutions EVM GUI? Additional instructions on updating the firmware are in the EVM user's guide section 1.2.9.

Also, how does the EVM show in the PC's device manager?

Thank you,

Justin Beigel

0 Frank Schaller over 3 years ago in reply to Justin Beigel

Prodigy 10 points

Hello Justin,

i try Firmware update on Faulty LDC1000EVM. No Action. Herr are pictures from device Manager.

0 Justin Beigel over 3 years ago in reply to Frank Schaller

TI__Mastermind 18545 points

Hello,

You may have to reinstall the driver for that EVM. You can do this by reinstalling the GUI as administrator or just uninstalling and reinstalling the driver. More information on that can be found in the following E2E post: https://e2e.ti.com/support/data-converters-group/data-converters/f/data-converters-forum/716036/ldc1000evm-msp430-usb-driver-unknown

Best Regards,

Justin Beigel

0 Frank Schaller over 3 years ago in reply to Justin Beigel

Prodigy 10 points

Hello,

i reinstall the Full SW Package. Nothing changed. One Board Works Fine. The second Board don‘t work.

Regards Frank

0 Justin Beigel over 3 years ago in reply to Frank Schaller

TI__Mastermind 18545 points

Hello Frank,

Sorry you are still having issues. Can you confirm if the non-working EVM is still showing as "MSP430-USB Example"?

Thank you,

Justin Beigel

0 Frank Schaller over 3 years ago in reply to Justin Beigel

Prodigy 10 points

Hello Justin,

same message like before. The Otter ldc1000evm work on Same pc without and Problem.

regards Frank

0 Justin Beigel over 3 years ago in reply to Frank Schaller

TI__Mastermind 18545 points

Hello Frank,

If the EVM is still showing the "MSP430-USB Example" prompt for the driver, then the USB driver didn't successfully change with the SW reinstall. Try manually changing the driver by going through the device manager. The EVM driver is located in path C:\ti\Sensing Solutions EVM GUI-(version #)\EVM Driver by default. Where (version #) is replaced with the version number of the sensing solution GUI. Version 1.10.0 is the most current version. The driver name is evm.inf.

Best Regards,

Justin Beigel

0 Frank Schaller over 3 years ago in reply to Justin Beigel

Prodigy 10 points

Hello Justin,

i install the whole Software Package a few times new. Nothing changed.

One LDC1000EVM work. Second LDC1000EVM don‘t work.

Regards Frank

0 Justin Beigel over 3 years ago in reply to Frank Schaller

TI__Mastermind 18545 points

Hello Frank,

You could try re-flashing the EVM by putting it into BSL mode and flashing it through the Python firmware upgrader. Here are some more detailed instructions for that:

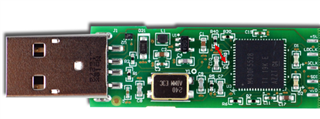

Put the EVM into BSL mode by shorting C6 and R40 together before powering up the EVM
Once shorted, connect the EVM to the PC. Once the EVM powers on, it should go into BSL mode.
Download the Python Firmware Upgrader tool: Python_Firmware_Upgrader.zip
Run Python_Firmware_UpgraderGUI.exe

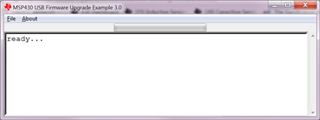

If the device is connected and in BSL mode the screen should display "ready..."
If this is not the case, ensure that the device is in BSL mode (no LEDs will be on) and click File -> Rescan HID Bus
Choose File -> Open User Firmware and navigate to the proper EVM firmware file
The Sensing Solutions GUI comes with the most up to date firmware files in the following folder path: C:\ti\Sensing Solutions EVM GUI-1.10.0\EVM Firmware.
When successfully completed the screen should read "Programming: OK"

At this point, the EVM should be recognized by the Sensing Solutions GUI and connect properly. Between reflashing the EVM and manually updating the USB driver, the issue should be resolved. If you still have issues, it is possible that the board is damaged.

Best Regards,

Justin Beigel
