It consists of AWR6843ISK-ODS Antenna 、 MMWAVEICBOOST and DCA1000.
It became rader capture when I did postprocessing
It is in condition whether you cannot adjust the range whether a reduced scale does not match
Not a scan of around 20m, I want to scan a near place of the 1m neighborhood

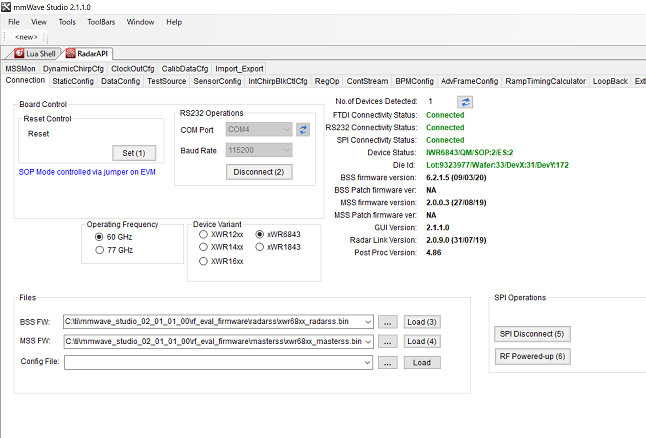

test connecting log
｛
GM: Constructor
GM: Mon Nov 15 18:11:43 2021
RSTD.Transmit("/Settings")
[18:11:44]
[18:11:44] ### Running Startup script: "C:\ti\mmwave_studio_02_01_01_00\mmWaveStudio\Scripts\Startup.lua" ###
[18:11:44] RSTD.SetAndTransmit ("/Settings/Scripter/Display DateTime" , "1")
[18:11:44] RSTD.SetAndTransmit ("/Settings/Scripter/DateTime Format" , "HH:mm:ss")
[18:11:44] Scripter ignored: Attempt to UnBuild() again or before Build.
[18:11:44] RSTD.SetVar ("/Settings/Clients/Client 0/Dll" , "C:\\ti\\mmwave_studio_02_01_01_00\\mmWaveStudio\\Clients\\\\LabClient.dll")
[18:11:44] RSTD.SetVar ("/Settings/Clients/Client 0/Use" , "TRUE")
[18:11:44] RSTD.SetVar ("/Settings/Clients/Client 1/Use" , "FALSE")
[18:11:44] RSTD.SetVar ("/Settings/Clients/Client 2/Use" , "FALSE")
[18:11:44] RSTD.SetVar ("/Settings/Clients/Client 3/Use" , "FALSE")
[18:11:44] RSTD.SetVar ("/Settings/Clients/Client 4/Use" , "FALSE")
[18:11:44] RSTD.SetVar ("/Settings/AL Client/AL Dll" , "C:\\ti\\mmwave_studio_02_01_01_00\\mmWaveStudio\\RunTime\\SAL.dll")
[18:11:44] RSTD.SetVar ("/Settings/Clients/Client 0/GuiDll" , "")
[18:11:44] RSTD.SetVar ("/Settings/AutoUpdate/Enabled" , "TRUE")
[18:11:44] RSTD.SetVar ("/Settings/AutoUpdate/Interval" , "1")
[18:11:44] RSTD.SetVar ("/Settings/Monitors/UpdateDisplay" , "TRUE")
[18:11:44] RSTD.SetVar ("/Settings/Monitors/OneClickStart" , "TRUE")
[18:11:44] RSTD.SetVar ("/Settings/Automation/Automation Mode" , "false")
[18:11:44] RSTD.Transmit("/")
[18:11:44] RSTD.SaveSettings(): Settings saved to "C:\Users\ttrpc009\AppData\Roaming\RSTD\config.xml"
[18:11:44] RSTD.Build()
[18:11:44] RSTD.SaveSettings(): Settings saved to "C:\Users\ttrpc009\AppData\Roaming\RSTD\config.xml"
[18:11:44] RSTD.Transmit("/")
[18:11:44] RSTD.AL_Build()
[18:11:44] RSTD.AL_LoadXml()
[18:11:44] RSTD.Transmit("/")
[18:11:44] RSTD.AL_Init()
[18:11:44] RSTD.Clients_Build()
[18:11:44] GM: Init
[18:11:44] GM: Loaded 'C:\ti\mmwave_studio_02_01_01_00\mmWaveStudio\Clients\\LabClient.dll'
[18:11:44] GM: 1 Guest (s) init
[18:11:44] GM: 1 Module(s) init
[18:11:44] GM: 2 Tab (s) init
[18:11:44] RSTD.Client_LoadXml()
[18:11:44] [RadarAPI]: ar1.selectRadarMode(0)
[18:11:44] [RadarAPI]: Status: Passed
[18:11:44] Matlab Runtime Engine is installed
[18:11:44] [RadarAPI]: Starting Matlab Engine..
[18:11:50] [RadarAPI]: Matlab Engine Started!
[18:11:52] [RadarAPI]: ar1.selectCascadeMode(0)
[18:11:52] [RadarAPI]: Status: Passed
[18:11:52] [RadarAPI]: ar1.LoadSettings('C:\Users\ttrpc009\AppData\Roaming\RSTD\ar1gui.ini')
[18:11:52] TESTING = false
[18:11:52] RstdNet: Port 2777: Listening..
[18:11:52]
[18:11:52] ***Script completed successfully.***
[18:12:06] [RadarAPI]: Opening Gpio Control Port()
[18:12:06] [RadarAPI]: Status: Passed
[18:12:06] [RadarAPI]: Opening Board Control Port()
[18:12:06] [RadarAPI]: Status: Passed
[18:12:08] [RadarAPI]: ar1.FullReset()
[18:12:08] [RadarAPI]: Status: Passed
[18:12:08] [RadarAPI]: Closing Board Control Port()
[18:12:08] [RadarAPI]: Status: Passed
[18:12:08] [RadarAPI]: Closing Gpio Control Port()
[18:12:08] [RadarAPI]: Status: Passed
[18:12:08] [RadarAPI]: ar1.SOPControl(2)
[18:12:08] [RadarAPI]: Status: Passed
[18:12:10] [RadarAPI]: ar1.Connect(4,115200,1000)
[18:12:11] [RadarAPI]: ar1.Calling_IsConnected()
[18:12:12] [RadarAPI]: ar1.SelectChipVersion("IWR6843")
[18:12:12] [RadarAPI]: Status: Passed
[18:12:12] [RadarAPI]: ar1.frequencyBandSelection("60G")
[18:12:12] [RadarAPI]: ar1.SelectChipVersion("IWR6843")
[18:12:12] [RadarAPI]: Status: Passed
[18:12:12] Device Status : IWR6843/QM/SOP:2/ES:2
[18:12:12] [RadarAPI]: ar1.SaveSettings('C:\Users\ttrpc009\AppData\Roaming\RSTD\ar1gui.ini')
[18:12:28] [RadarAPI]: ar1.DownloadBSSFw("C:\\ti\\mmwave_studio_02_01_01_00\\rf_eval_firmware\\radarss\\xwr68xx_radarss.bin")
[18:12:28] [RadarAPI]: Downloading BSS ROM RPRC Binary..
[18:13:16] [RadarAPI]: ar1.GetBSSFwVersion()
[18:13:16] [RadarAPI]: BSSFwVersion:(06.02.01.05 (09/03/20))
[18:13:33] [RadarAPI]: ar1.DownloadMSSFw("C:\\ti\\mmwave_studio_02_01_01_00\\rf_eval_firmware\\masterss\\xwr68xx_masterss.bin")
[18:13:33] [RadarAPI]: Downloading MSS RPRC Binary..
[18:13:52] [RadarAPI]: ar1.GetMSSFwVersion()
[18:13:52] [RadarAPI]: MSSFwVersion:(02.00.00.03 (27/08/19))
[18:13:54] [RadarAPI]: ar1.PowerOn(0, 1000, 0, 0)
[18:13:54] [RadarAPI]: Status: Passed
[18:13:54] MSS power up done async event received!
[18:13:56] [RadarAPI]: ar1.SelectChipVersion("IWR6843")
[18:13:56] [RadarAPI]: Status: Passed
[18:13:56] [RadarAPI]: ar1.SelectChipVersion("IWR6843")
[18:13:56] [RadarAPI]: Status: Passed
[18:13:56] Device Status : IWR6843/QM/SOP:2/ES:2
[18:13:56] [RadarAPI]: ar1.RfEnable()
[18:13:56] BSS power up done async event received!
[18:13:56] [RadarAPI]: Status: Passed
[18:13:56] [RadarAPI]: ar1.GetMSSFwVersion()
[18:13:56] [RadarAPI]: MSSFwVersion:(02.00.00.03 (27/08/19))
[18:13:57] [RadarAPI]: ar1.GetBSSFwVersion()
[18:13:57] [RadarAPI]: BSSFwVersion:(06.02.01.05 (09/03/20))
[18:14:00] [RadarAPI]: ar1.ChanNAdcConfig(1, 1, 0, 1, 1, 1, 1, 2, 2, 0)
[18:14:00] [RadarAPI]: Status: Passed
[18:14:02] [RadarAPI]: ar1.LPModConfig(0, 0)
[18:14:02] [RadarAPI]: Status: Passed
[18:14:03] [RadarAPI]: ar1.RfInit()
[18:14:03] RF Init async event received!
[18:14:03] [RadarAPI]: Status: Passed
[18:14:03] [RadarAPI]: Time stamp, Temperture: 6799,53; APLL Status, Update: 1, 0; SynthVCO1 Status, Update: 1, 1; SynthVCO2 Status, Update: 1, 1; LODist Status, Update: 1, 1; RxADCDC Status, Update: 1, 1; HPFcutoff Status, Update: 1, 1; LPFcutoff Status, Update: 1, 1; PeakDetector Status, Update: 1, 1; TxPower Status, Update: 1, 1; RxGain Status, Update: 1, 1; TxPhase Status, Update: 1, 1; RxIQMM Status, Update: 1, 1;
[18:14:05] [RadarAPI]: ar1.DataPathConfig(513, 1216644097, 0)
[18:14:05] [RadarAPI]: Status: Passed
[18:14:06] [RadarAPI]: ar1.LvdsClkConfig(1, 1)
[18:14:06] [RadarAPI]: Status: Passed
[18:14:07] [RadarAPI]: ar1.LVDSLaneConfig(0, 1, 1, 0, 0, 1, 0, 0)
[18:14:07] [RadarAPI]: Status: Passed
[18:14:10] [RadarAPI]: ar1.ProfileConfig(0, 60, 100, 6, 60, 0, 0, 0, 0, 0, 0, 29.982, 0, 256, 10000, 0, 131072, 30)
[18:14:10] [RadarAPI]: Status: Passed
[18:14:12] [RadarAPI]: ar1.ChirpConfig(0, 0, 0, 0, 0, 0, 0, 1, 0, 0)
[18:14:12] [RadarAPI]: Status: Passed
[18:14:14] Test Source Already Disabled...!!!
[18:14:14] [RadarAPI]: ar1.DisableTestSource(0)
[18:14:14] [RadarAPI]: Status: Passed
[18:14:14] [RadarAPI]: ar1.FrameConfig(0, 0, 8, 128, 40, 0, 0, 1)
[18:14:14] [RadarAPI]: Status: Passed
[18:14:16] [RadarAPI]: ar1.GetCaptureCardDllVersion()
[18:14:16] [RadarAPI]: Sending dll_version command to DCA1000
[18:14:16] [RadarAPI]:
[18:14:16] DLL Version : 1.0
[18:14:16] [RadarAPI]: ar1.SelectCaptureDevice("DCA1000")
[18:14:16] [RadarAPI]: Status: Passed
[18:14:25] [RadarAPI]: ar1.CaptureCardConfig_EthInit("192.168.33.30", "192.168.33.180", "12:34:56:78:90:12", 4096, 4098)
[18:14:25] [RadarAPI]: ar1.CaptureCardConfig_Mode(1, 2, 1, 2, 3, 30)
[18:14:25] [RadarAPI]: ar1.CaptureCardConfig_PacketDelay(25)
[18:14:25] [RadarAPI]: Sending fpga command to DCA1000
[18:14:25] [RadarAPI]:
[18:14:25] FPGA Configuration command : Success
[18:14:25] [RadarAPI]: Sending record command to DCA1000
[18:14:26] [RadarAPI]:
[18:14:26] Configure Record command : Success
[18:14:26] [RadarAPI]: ar1.GetCaptureCardFPGAVersion()
[18:14:26] [RadarAPI]: Sending fpga_version command to DCA1000
[18:14:26] [RadarAPI]:
[18:14:26]
[18:14:26] FPGA Version : 2.8 [Record]
[18:14:26]
[18:14:37] [RadarAPI]: ar1.CaptureCardConfig_StartRecord("C:\\ti\\mmwave_studio_02_01_01_00\\mmWaveStudio\\PostProc\\adc_data.bin", 1)
[18:14:37] [RadarAPI]: Sending start_record command to DCA1000
[18:15:03] [RadarAPI]: ar1.StartFrame()
[18:15:03] [RadarAPI]: Status: Passed
[18:15:03] Frame start async event received!
[18:15:04] [RadarAPI]: Frame Ended
[18:15:06] [RadarAPI]:
[18:15:06] Frame End async event received!
[18:15:06] [RadarAPI]:
[18:15:06] Start Record command : Success
[18:15:06]
[18:15:06] Record is completed
[18:15:06]
[18:15:06] Record stop is done successfully
[18:17:24] [RadarAPI]: ar1.CaptureCardConfig_StartRecord("C:\\ti\\mmwave_studio_02_01_01_00\\mmWaveStudio\\PostProc\\adc_data_Raw_0.bin", 1)
[18:17:24] [RadarAPI]: Sending start_record command to DCA1000
[18:17:31] [RadarAPI]: ar1.StartFrame()
[18:17:31] [RadarAPI]: Status: Passed
[18:17:31] Frame start async event received!
[18:17:31] [RadarAPI]: Frame Ended
[18:17:33] [RadarAPI]:
[18:17:33] Frame End async event received!
[18:17:33] [RadarAPI]:
[18:17:33] Start Record command : Success
[18:17:33]
[18:17:33] Record is completed
[18:17:33]
[18:17:33] Record stop is done successfully
[18:17:47] [RadarAPI]: ar1.StartMatlabPostProc("C:\\ti\\mmwave_studio_02_01_01_00\\mmWaveStudio\\PostProc\\adc_data_Raw_0.bin")
[18:17:47] [RadarAPI]: No of files Captured: 1, Total no of frames for each device : 8
[18:18:14] Test Source Already Disabled...!!!
[18:18:14] [RadarAPI]: ar1.DisableTestSource(0)
[18:18:14] [RadarAPI]: Status: Passed
[18:18:14] [RadarAPI]: ar1.FrameConfig(0, 0, 100, 128, 40, 0, 0, 1)
[18:18:14] [RadarAPI]: Status: Passed
[18:18:24] [RadarAPI]: ar1.CaptureCardConfig_StartRecord("C:\\ti\\mmwave_studio_02_01_01_00\\mmWaveStudio\\PostProc\\adc_data_Raw_0.bin", 1)
[18:18:24] [RadarAPI]: Sending start_record command to DCA1000
[18:18:29] [RadarAPI]: ar1.StartFrame()
[18:18:29] [RadarAPI]: Status: Passed
[18:18:29] Frame start async event received!
[18:18:33] [RadarAPI]: Frame Ended
[18:18:36] [RadarAPI]:
[18:18:36] Frame End async event received!
[18:18:36] [RadarAPI]:
[18:18:36] Start Record command : Success
[18:18:36]
[18:18:36] Record is completed
[18:18:36]
[18:18:36] Record stop is done successfully
[18:18:36] [RadarAPI]: ar1.StartMatlabPostProc("C:\\ti\\mmwave_studio_02_01_01_00\\mmWaveStudio\\PostProc\\adc_data_Raw_0.bin")
[18:18:36] [RadarAPI]: No of files Captured: 1, Total no of frames for each device : 100
[18:34:57] [RadarAPI]: ar1.CaptureCardConfig_StartRecord("C:\\ti\\mmwave_studio_02_01_01_00\\mmWaveStudio\\PostProc\\adc_data_Raw_0.bin", 1)
[18:34:57] [RadarAPI]: Sending start_record command to DCA1000
[18:35:07] [RadarAPI]: ar1.StartFrame()
[18:35:07] [RadarAPI]: Status: Passed
[18:35:07] Frame start async event received!
[18:35:11] [RadarAPI]: Frame Ended
[18:35:13] [RadarAPI]:
[18:35:13] Start Record command : Success
[18:35:13]
[18:35:13] Record is completed
[18:35:13]
[18:35:13] Record stop is done successfully
[18:35:13] Frame End async event received!
[18:35:13] [RadarAPI]:
[18:35:16] [RadarAPI]: ar1.StopFrame()
[18:35:16] Status: Failed, Error Type: FRAME ARE ALREADY STOPPED WHEN THE FRAME_STOP COMMAND WAS ISSUED
[18:35:38] [RadarAPI]: ar1.StartMatlabPostProc("C:\\ti\\mmwave_studio_02_01_01_00\\mmWaveStudio\\PostProc\\adc_data_Raw_0.bin")
[18:35:38] [RadarAPI]: No of files Captured: 1, Total no of frames for each device : 100
[18:37:17] [RadarAPI]: ar1.CaptureCardConfig_StartRecord("C:\\ti\\mmwave_studio_02_01_01_00\\mmWaveStudio\\PostProc\\adc_data_Raw_0.bin", 1)
[18:37:17] [RadarAPI]: Sending start_record command to DCA1000
[18:37:23] [RadarAPI]: ar1.StartFrame()
[18:37:23] [RadarAPI]: Status: Passed
[18:37:23] Frame start async event received!
[18:37:27] [RadarAPI]: Frame Ended
[18:37:30] [RadarAPI]:
[18:37:30] Start Record command : Success
[18:37:30]
[18:37:30] Record is completed
[18:37:30]
[18:37:30] Record stop is done successfully
[18:37:30] Frame End async event received!
[18:37:30] [RadarAPI]:
[18:37:33] [RadarAPI]: ar1.StartMatlabPostProc("C:\\ti\\mmwave_studio_02_01_01_00\\mmWaveStudio\\PostProc\\adc_data_Raw_0.bin")
[18:37:33] [RadarAPI]: No of files Captured: 1, Total no of frames for each device : 100
[18:38:03] [RadarAPI]: ar1.CaptureCardConfig_StartRecord("C:\\ti\\mmwave_studio_02_01_01_00\\mmWaveStudio\\PostProc\\adc_data_Raw_0.bin", 1)
[18:38:03] [RadarAPI]: Sending start_record command to DCA1000
[18:38:07] [RadarAPI]: ar1.StartFrame()
[18:38:08] [RadarAPI]: Status: Passed
[18:38:08] Frame start async event received!
[18:38:12] [RadarAPI]: Frame Ended
[18:38:14] [RadarAPI]:
[18:38:14] Frame End async event received!
[18:38:14] [RadarAPI]:
[18:38:14] Start Record command : Success
[18:38:14]
[18:38:14] Record is completed
[18:38:14]
[18:38:14] Record stop is done successfully
[18:38:18] [RadarAPI]: ar1.StartMatlabPostProc("C:\\ti\\mmwave_studio_02_01_01_00\\mmWaveStudio\\PostProc\\adc_data_Raw_0.bin")
[18:38:18] [RadarAPI]: No of files Captured: 1, Total no of frames for each device : 100
[18:39:22] [RadarAPI]: ar1.CaptureCardConfig_StartRecord("C:\\ti\\mmwave_studio_02_01_01_00\\mmWaveStudio\\PostProc\\adc_data_Raw_0.bin", 1)
[18:39:22] [RadarAPI]: Sending start_record command to DCA1000
[18:39:26] [RadarAPI]: ar1.StartFrame()
[18:39:26] [RadarAPI]: Status: Passed
[18:39:26] Frame start async event received!
[18:39:30] Frame End async event received!
[18:39:30] [RadarAPI]: Frame Ended
[18:39:32] [RadarAPI]:
[18:39:32] [RadarAPI]:
[18:39:32] Start Record command : Success
[18:39:32]
[18:39:32] Record is completed
[18:39:32]
[18:39:32] Record stop is done successfully
[18:39:32] [RadarAPI]: ar1.StartMatlabPostProc("C:\\ti\\mmwave_studio_02_01_01_00\\mmWaveStudio\\PostProc\\adc_data_Raw_0.bin")
[18:39:32] [RadarAPI]: No of files Captured: 1, Total no of frames for each device : 100
[18:42:12] [RadarAPI]: ar1.CaptureCardConfig_StartRecord("C:\\ti\\mmwave_studio_02_01_01_00\\mmWaveStudio\\PostProc\\adc_data_Raw_0.bin", 1)
[18:42:12] [RadarAPI]: Sending start_record command to DCA1000
[18:42:20] [RadarAPI]: ar1.StartFrame()
[18:42:20] [RadarAPI]: Status: Passed
[18:42:20] Frame start async event received!
[18:42:24] [RadarAPI]: Frame Ended
[18:42:26] [RadarAPI]:
[18:42:26] Start Record command : Success
[18:42:26]
[18:42:26] Record is completed
[18:42:26]
[18:42:26] Record stop is done successfully
[18:42:26] Frame End async event received!
[18:42:26] [RadarAPI]:
[18:42:27] [RadarAPI]: ar1.StartMatlabPostProc("C:\\ti\\mmwave_studio_02_01_01_00\\mmWaveStudio\\PostProc\\adc_data_Raw_0.bin")
[18:42:27] [RadarAPI]: No of files Captured: 1, Total no of frames for each device : 100
[18:46:23] [RadarAPI]: ar1.SetTestSource(1, 1, 0, 0, 0, 0, -327, 0, -327, 327, 327, 327, -2.5, 327, 327, 0, 0, 0, 0, -327, 0, -327, 327, 327, 327, -95, 0, 0, 0.5, 0, 1, 0, 1.5, 0, 0, 0, 0, 0, 0, 0)
[18:46:23] [RadarAPI]: Status: Passed
[18:46:49] [RadarAPI]: ar1.CaptureCardConfig_StartRecord("C:\\ti\\mmwave_studio_02_01_01_00\\mmWaveStudio\\PostProc\\adc_data_Raw_0.bin", 1)
[18:46:49] [RadarAPI]: Sending start_record command to DCA1000
[18:46:54] [RadarAPI]: ar1.StartFrame()
[18:46:54] [RadarAPI]: Status: Passed
[18:46:54] Frame start async event received!
[18:46:58] [RadarAPI]: Frame Ended
[18:47:01] [RadarAPI]:
[18:47:01] Start Record command : Success
[18:47:01]
[18:47:01] Record is completed
[18:47:01]
[18:47:01] Record stop is done successfully
[18:47:01] Frame End async event received!
[18:47:01] [RadarAPI]:
[18:47:04] [RadarAPI]: ar1.StartMatlabPostProc("C:\\ti\\mmwave_studio_02_01_01_00\\mmWaveStudio\\PostProc\\adc_data_Raw_0.bin")
[18:47:04] [RadarAPI]: No of files Captured: 1, Total no of frames for each device : 100
[18:48:53] [RadarAPI]: ar1.SetTestSource(4, 3, 0, 0, 0, 0, -327, 0, -327, 327, 327, 327, -2.5, 327, 327, 0, 0, 0, 0, -327, 0, -327, 327, 327, 327, -95, 0, 0, 0.5, 0, 1, 0, 1.5, 0, 0, 0, 0, 0, 0, 0)
[18:48:53] [RadarAPI]: Status: Passed
[18:48:58] [RadarAPI]: ar1.CaptureCardConfig_StartRecord("C:\\ti\\mmwave_studio_02_01_01_00\\mmWaveStudio\\PostProc\\adc_data_Raw_0.bin", 1)
[18:48:58] [RadarAPI]: Sending start_record command to DCA1000
[18:49:01] [RadarAPI]: ar1.StartFrame()
[18:49:01] [RadarAPI]: Status: Passed
[18:49:01] Frame start async event received!
[18:49:05] [RadarAPI]: Frame Ended
[18:49:08] [RadarAPI]:
[18:49:08] Frame End async event received!
[18:49:08] [RadarAPI]:
[18:49:08] Start Record command : Success
[18:49:08]
[18:49:08] Record is completed
[18:49:08]
[18:49:08] Record stop is done successfully
[18:49:11] [RadarAPI]: ar1.StartMatlabPostProc("C:\\ti\\mmwave_studio_02_01_01_00\\mmWaveStudio\\PostProc\\adc_data_Raw_0.bin")
[18:49:11] [RadarAPI]: No of files Captured: 1, Total no of frames for each device : 100
[18:51:12] [RadarAPI]: ar1.CaptureCardConfig_StartRecord("C:\\ti\\mmwave_studio_02_01_01_00\\mmWaveStudio\\PostProc\\adc_data_Raw_0.bin", 1)
[18:51:12] [RadarAPI]: Sending start_record command to DCA1000
[18:51:14] [RadarAPI]: ar1.StartFrame()
[18:51:14] [RadarAPI]: Status: Passed
[18:51:14] Frame start async event received!
[18:51:18] [RadarAPI]: Frame Ended
[18:51:20] [RadarAPI]:
[18:51:20] Start Record command : Success
[18:51:20]
[18:51:20] Record is completed
[18:51:20]
[18:51:20] Record stop is done successfully
[18:51:20] Frame End async event received!
[18:51:20] [RadarAPI]:
[18:51:56] Test Source Already Disabled...!!!
[18:51:56] [RadarAPI]: ar1.DisableTestSource(0)
[18:51:56] [RadarAPI]: Status: Passed
[18:51:56] [RadarAPI]: ar1.FrameConfig(0, 0, 1000, 128, 40, 0, 0, 1)
[18:51:56] [RadarAPI]: Status: Passed
[18:52:00] [RadarAPI]: ar1.CaptureCardConfig_StartRecord("C:\\ti\\mmwave_studio_02_01_01_00\\mmWaveStudio\\PostProc\\adc_data_Raw_0.bin", 1)
[18:52:00] [RadarAPI]: Sending start_record command to DCA1000
[18:52:05] [RadarAPI]: ar1.StartFrame()
[18:52:05] [RadarAPI]: Status: Passed
[18:52:05] Frame start async event received!
[18:52:09] [RadarAPI]: Error: ファイルが別のプロセスで使用されているため、プロセスはファイルにアクセスできません。
[18:52:09] Trace:
[18:52:09] 場所 System.IO.__Error.WinIOError(Int32 errorCode, String maybeFullPath)
[18:52:09] 場所 System.IO.__Error.WinIOError()
[18:52:09] 場所 System.IO.File.InternalMove(String sourceFileName, String destFileName, Boolean checkHost)
[18:52:09] 場所 AR1xController.ChirpConfigTab.GetNumOfFilesCaptured(String adc_file_path)
[18:52:09] 場所 AR1xController.frmAR1Main.iStartMtlabPostProc()
[18:52:45] Frame End async event received!
[18:52:45] [RadarAPI]: Frame Ended
[18:52:47] [RadarAPI]:
[18:52:47] [RadarAPI]:
[18:52:47] Start Record command : Success
[18:52:47]
[18:52:47] Record is completed
[18:52:47]
[18:52:47] Record stop is done successfully
[18:52:54] [RadarAPI]: ar1.StartMatlabPostProc("C:\\ti\\mmwave_studio_02_01_01_00\\mmWaveStudio\\PostProc\\adc_data_Raw_0.bin")
[18:52:54] [RadarAPI]: No of files Captured: 1, Total no of frames for each device : 1000
[19:03:41] Test Source Already Disabled...!!!
[19:03:41] [RadarAPI]: ar1.DisableTestSource(0)
[19:03:41] [RadarAPI]: Status: Passed
[19:03:41] [RadarAPI]: ar1.FrameConfig(0, 0, 100, 128, 40, 0, 0, 1)
[19:03:41] [RadarAPI]: Status: Passed
[19:03:43] [RadarAPI]: ar1.CaptureCardConfig_StartRecord("C:\\ti\\mmwave_studio_02_01_01_00\\mmWaveStudio\\PostProc\\adc_data_Raw_0.bin", 1)
[19:03:43] [RadarAPI]: Sending start_record command to DCA1000
[19:03:47] [RadarAPI]: ar1.StartFrame()
[19:03:47] [RadarAPI]: Status: Passed
[19:03:47] Frame start async event received!
[19:03:51] [RadarAPI]: Frame Ended
[19:03:53] [RadarAPI]:
[19:03:53] Start Record command : Success
[19:03:53]
[19:03:53] Record is completed
[19:03:53]
[19:03:53] Record stop is done successfully
[19:03:53] Frame End async event received!
[19:03:53] [RadarAPI]:
[19:03:57] [RadarAPI]: ar1.StartMatlabPostProc("C:\\ti\\mmwave_studio_02_01_01_00\\mmWaveStudio\\PostProc\\adc_data_Raw_0.bin")
[19:03:57] [RadarAPI]: No of files Captured: 1, Total no of frames for each device : 100
[19:03:57] [RadarAPI]: Error:
[19:03:57]
[19:03:57] ... MWMCR::EvaluateFunction error ...
[19:03:57] 出力引数 "adc_file_name" (および他の引数もおそらく) を、"calc_rel_offset_and_file_name" の呼び出し中に代入することはできません。
[19:03:57] Error in => process_adc_data.m at line 79.
[19:03:57]
[19:03:57] ... Matlab M-code Stack Trace ...
[19:03:57] at
[19:03:57] file C:\Users\ttrpc009\AppData\Local\Temp\ttrpc009\mcrCache8.5.1\Matlab0\Processing_functions\read_adc_data.m, name read_adc_data_16xx, line 528.
[19:03:57] at
[19:03:57] file C:\Users\ttrpc009\AppData\Local\Temp\ttrpc009\mcrCache8.5.1\Matlab0\Processing_functions\read_adc_data.m, name read_adc_data, line 27.
[19:03:57] at
[19:03:57] file C:\Users\ttrpc009\AppData\Local\Temp\ttrpc009\mcrCache8.5.1\Matlab0\MatlabPostPr\process_adc_data.m, name process_adc_data, line 79.
[19:03:57]
[19:03:57]
[19:03:57] Trace:
[19:03:57] 場所 MathWorks.MATLAB.NET.Utility.MWMCR.EvaluateFunction(String functionName, Int32 numArgsOut, Int32 numArgsIn, MWArray[] argsIn)
[19:03:57] 場所 MathWorks.MATLAB.NET.Utility.MWMCR.EvaluateFunction(Int32 numArgsOut, String functionName, MWArray[] argsIn)
[19:03:57] 場所 MatlabPostProcGui.MatlabPostProcGUIClass.process_adc_data(MWArray adc_file_name, MWArray force_cont_stream_mode)
[19:03:57] 場所 AR1xController.frmAR1Main.iStartMtlabPostProc()
[19:04:07] [RadarAPI]: ar1.StartMatlabPostProc("C:\\ti\\mmwave_studio_02_01_01_00\\mmWaveStudio\\PostProc\\adc_data_Raw_0.bin")
[19:04:07] [RadarAPI]: No of files Captured: 1, Total no of frames for each device : 100
[19:04:07] [RadarAPI]: Error:
[19:04:07]
[19:04:07] ... MWMCR::EvaluateFunction error ...
[19:04:07] 出力引数 "adc_file_name" (および他の引数もおそらく) を、"calc_rel_offset_and_file_name" の呼び出し中に代入することはできません。
[19:04:07] Error in => process_adc_data.m at line 79.
[19:04:07]
[19:04:07] ... Matlab M-code Stack Trace ...
[19:04:07] at
[19:04:07] file C:\Users\ttrpc009\AppData\Local\Temp\ttrpc009\mcrCache8.5.1\Matlab0\Processing_functions\read_adc_data.m, name read_adc_data_16xx, line 528.
[19:04:07] at
[19:04:07] file C:\Users\ttrpc009\AppData\Local\Temp\ttrpc009\mcrCache8.5.1\Matlab0\Processing_functions\read_adc_data.m, name read_adc_data, line 27.
[19:04:07] at
[19:04:07] file C:\Users\ttrpc009\AppData\Local\Temp\ttrpc009\mcrCache8.5.1\Matlab0\MatlabPostPr\process_adc_data.m, name process_adc_data, line 79.
[19:04:07]
[19:04:07]
[19:04:07] Trace:
[19:04:07] 場所 MathWorks.MATLAB.NET.Utility.MWMCR.EvaluateFunction(String functionName, Int32 numArgsOut, Int32 numArgsIn, MWArray[] argsIn)
[19:04:07] 場所 MathWorks.MATLAB.NET.Utility.MWMCR.EvaluateFunction(Int32 numArgsOut, String functionName, MWArray[] argsIn)
[19:04:07] 場所 MatlabPostProcGui.MatlabPostProcGUIClass.process_adc_data(MWArray adc_file_name, MWArray force_cont_stream_mode)
[19:04:07] 場所 AR1xController.frmAR1Main.iStartMtlabPostProc()
[19:04:12] [RadarAPI]: ar1.StopFrame()
[19:04:12] Status: Failed, Error Type: FRAME ARE ALREADY STOPPED WHEN THE FRAME_STOP COMMAND WAS ISSUED
[19:04:23] [RadarAPI]: ar1.StartMatlabPostProc("C:\\ti\\mmwave_studio_02_01_01_00\\mmWaveStudio\\PostProc\\adc_data_Raw_0.bin")
[19:04:23] [RadarAPI]: No of files Captured: 1, Total no of frames for each device : 100
[19:04:23] [RadarAPI]: Error:
[19:04:23]
[19:04:23] ... MWMCR::EvaluateFunction error ...
[19:04:23] 出力引数 "adc_file_name" (および他の引数もおそらく) を、"calc_rel_offset_and_file_name" の呼び出し中に代入することはできません。
[19:04:23] Error in => process_adc_data.m at line 79.
[19:04:23]
[19:04:23] ... Matlab M-code Stack Trace ...
[19:04:23] at
[19:04:23] file C:\Users\ttrpc009\AppData\Local\Temp\ttrpc009\mcrCache8.5.1\Matlab0\Processing_functions\read_adc_data.m, name read_adc_data_16xx, line 528.
[19:04:23] at
[19:04:23] file C:\Users\ttrpc009\AppData\Local\Temp\ttrpc009\mcrCache8.5.1\Matlab0\Processing_functions\read_adc_data.m, name read_adc_data, line 27.
[19:04:23] at
[19:04:23] file C:\Users\ttrpc009\AppData\Local\Temp\ttrpc009\mcrCache8.5.1\Matlab0\MatlabPostPr\process_adc_data.m, name process_adc_data, line 79.
[19:04:23]
[19:04:23]
[19:04:23] Trace:
[19:04:23] 場所 MathWorks.MATLAB.NET.Utility.MWMCR.EvaluateFunction(String functionName, Int32 numArgsOut, Int32 numArgsIn, MWArray[] argsIn)
[19:04:23] 場所 MathWorks.MATLAB.NET.Utility.MWMCR.EvaluateFunction(Int32 numArgsOut, String functionName, MWArray[] argsIn)
[19:04:23] 場所 MatlabPostProcGui.MatlabPostProcGUIClass.process_adc_data(MWArray adc_file_name, MWArray force_cont_stream_mode)
[19:04:23] 場所 AR1xController.frmAR1Main.iStartMtlabPostProc()
[19:05:04] [RadarAPI]: ar1.CaptureCardConfig_StartRecord("C:\\ti\\mmwave_studio_02_01_01_00\\mmWaveStudio\\PostProc\\adc_data_Raw_0.bin", 1)
[19:05:04] [RadarAPI]: Sending start_record command to DCA1000
[19:05:09] [RadarAPI]: ar1.StartFrame()
[19:05:09] [RadarAPI]: Status: Passed
[19:05:09] Frame start async event received!
[19:05:13] [RadarAPI]: Frame Ended
[19:05:16] [RadarAPI]:
[19:05:16] Frame End async event received!
[19:05:16] [RadarAPI]:
[19:05:16] Start Record command : Success
[19:05:16]
[19:05:16] Record is completed
[19:05:16]
[19:05:16] Record stop is done successfully
[19:05:21] [RadarAPI]: ar1.StartMatlabPostProc("C:\\ti\\mmwave_studio_02_01_01_00\\mmWaveStudio\\PostProc\\adc_data_Raw_0.bin")
[19:05:21] [RadarAPI]: No of files Captured: 1, Total no of frames for each device : 100
[19:13:35] [RadarAPI]: ar1.CaptureCardConfig_StartRecord("C:\\ti\\mmwave_studio_02_01_01_00\\mmWaveStudio\\PostProc\\adc_data_Raw_0.bin", 1)
[19:13:36] [RadarAPI]: Sending start_record command to DCA1000
[19:13:43] [RadarAPI]: ar1.StartFrame()
[19:13:43] [RadarAPI]: Status: Passed
[19:13:43] Frame start async event received!
[19:13:47] [RadarAPI]: Frame Ended
[19:13:49] [RadarAPI]:
[19:13:49] Start Record command : Success
[19:13:49]
[19:13:49] Record is completed
[19:13:49]
[19:13:49] Record stop is done successfully
[19:13:49] Frame End async event received!
[19:13:49] [RadarAPI]:
[19:14:08] [RadarAPI]: ar1.StartMatlabPostProc("C:\\ti\\mmwave_studio_02_01_01_00\\mmWaveStudio\\PostProc\\adc_data_Raw_0.bin")
[19:14:08] [RadarAPI]: No of files Captured: 1, Total no of frames for each device : 100
[19:14:22] [RadarAPI]: ar1.CaptureCardConfig_StartRecord("C:\\ti\\mmwave_studio_02_01_01_00\\mmWaveStudio\\PostProc\\adc_data_Raw_0.bin", 1)
[19:14:22] [RadarAPI]: Sending start_record command to DCA1000
[19:14:27] [RadarAPI]: ar1.StartFrame()
[19:14:27] [RadarAPI]: Status: Passed
[19:14:28] Frame start async event received!
[19:14:31] [RadarAPI]: Frame Ended
[19:14:34] [RadarAPI]:
[19:14:34] Frame End async event received!
[19:14:34] [RadarAPI]:
[19:14:34] Start Record command : Success
[19:14:34]
[19:14:34] Record is completed
[19:14:34]
[19:14:34] Record stop is done successfully
[19:14:40] [RadarAPI]: ar1.StartMatlabPostProc("C:\\ti\\mmwave_studio_02_01_01_00\\mmWaveStudio\\PostProc\\adc_data_Raw_0.bin")
[19:14:40] [RadarAPI]: No of files Captured: 1, Total no of frames for each device : 100
[19:19:50] Test Source Already Disabled...!!!
[19:19:50] [RadarAPI]: ar1.DisableTestSource(0)
[19:19:50] [RadarAPI]: Status: Passed
[19:19:50] [RadarAPI]: ar1.FrameConfig(0, 0, 300, 128, 40, 0, 0, 1)
[19:19:50] [RadarAPI]: Status: Passed
[19:19:53] [RadarAPI]: ar1.CaptureCardConfig_StartRecord("C:\\ti\\mmwave_studio_02_01_01_00\\mmWaveStudio\\PostProc\\adc_data_Raw_0.bin", 1)
[19:19:53] [RadarAPI]: Sending start_record command to DCA1000
[19:20:02] [RadarAPI]: ar1.StartFrame()
[19:20:02] [RadarAPI]: Status: Passed
[19:20:02] Frame start async event received!
[19:20:14] [RadarAPI]: Frame Ended
[19:20:16] [RadarAPI]:
[19:20:16] Start Record command : Success
[19:20:16]
[19:20:16] Record is completed
[19:20:16]
[19:20:16] Record stop is done successfully
[19:20:16] Frame End async event received!
[19:20:16] [RadarAPI]:
[19:20:30] [RadarAPI]: ar1.StartMatlabPostProc("C:\\ti\\mmwave_studio_02_01_01_00\\mmWaveStudio\\PostProc\\adc_data_Raw_0.bin")
[19:20:30] [RadarAPI]: No of files Captured: 1, Total no of frames for each device : 300
[19:25:04] [RadarAPI]: ar1.CaptureCardConfig_StartRecord("C:\\ti\\mmwave_studio_02_01_01_00\\mmWaveStudio\\PostProc\\adc_data_Raw_0.bin", 1)
[19:25:04] [RadarAPI]: Sending start_record command to DCA1000
[19:25:09] [RadarAPI]: ar1.StartFrame()
[19:25:09] [RadarAPI]: Status: Passed
[19:25:09] Frame start async event received!
[19:25:21] [RadarAPI]: Frame Ended
[19:25:23] [RadarAPI]:
[19:25:23] Frame End async event received!
[19:25:23] [RadarAPI]:
[19:25:23] Start Record command : Success
[19:25:23]
[19:25:23] Record is completed
[19:25:23]
[19:25:23] Record stop is done successfully
[19:25:29] [RadarAPI]: ar1.StartMatlabPostProc("C:\\ti\\mmwave_studio_02_01_01_00\\mmWaveStudio\\PostProc\\adc_data_Raw_0.bin")
[19:25:29] [RadarAPI]: No of files Captured: 1, Total no of frames for each device : 300
[19:28:02] [RadarAPI]: ar1.CaptureCardConfig_StartRecord("C:\\ti\\mmwave_studio_02_01_01_00\\mmWaveStudio\\PostProc\\adc_data_Raw_0.bin", 1)
[19:28:02] [RadarAPI]: Sending start_record command to DCA1000
[19:28:08] [RadarAPI]: ar1.StartFrame()
[19:28:08] [RadarAPI]: Status: Passed
[19:28:08] Frame start async event received!
[19:28:20] Frame End async event received!
[19:28:20] [RadarAPI]: Frame Ended
[19:28:22] [RadarAPI]:
[19:28:22] [RadarAPI]:
[19:28:22] Start Record command : Success
[19:28:22]
[19:28:22] Record is completed
[19:28:22]
[19:28:22] Record stop is done successfully
[19:28:27] [RadarAPI]: ar1.StartMatlabPostProc("C:\\ti\\mmwave_studio_02_01_01_00\\mmWaveStudio\\PostProc\\adc_data_Raw_0.bin")
[19:28:27] [RadarAPI]: No of files Captured: 1, Total no of frames for each device : 300
[19:28:54] [RadarAPI]: ar1.CaptureCardConfig_StartRecord("C:\\ti\\mmwave_studio_02_01_01_00\\mmWaveStudio\\PostProc\\adc_data_Raw_0.bin", 1)
[19:28:54] [RadarAPI]: Sending start_record command to DCA1000
[19:28:59] [RadarAPI]: ar1.StartFrame()
[19:28:59] [RadarAPI]: Status: Passed
[19:28:59] Frame start async event received!
[19:29:11] [RadarAPI]: Frame Ended
[19:29:13] [RadarAPI]:
[19:29:13] Frame End async event received!
[19:29:13] [RadarAPI]:
[19:29:13] Start Record command : Success
[19:29:13]
[19:29:13] Record is completed
[19:29:13]
[19:29:13] Record stop is done successfully
[19:29:15] [RadarAPI]: ar1.StartMatlabPostProc("C:\\ti\\mmwave_studio_02_01_01_00\\mmWaveStudio\\PostProc\\adc_data_Raw_0.bin")
[19:29:15] [RadarAPI]: No of files Captured: 1, Total no of frames for each device : 300
[19:29:46] [RadarAPI]: ar1.CaptureCardConfig_StartRecord("C:\\ti\\mmwave_studio_02_01_01_00\\mmWaveStudio\\PostProc\\adc_data_Raw_0.bin", 1)
[19:29:46] [RadarAPI]: Sending start_record command to DCA1000
[19:29:52] [RadarAPI]: ar1.StartFrame()
[19:29:52] [RadarAPI]: Status: Passed
[19:29:52] Frame start async event received!
[19:30:04] [RadarAPI]: Frame Ended
[19:30:06] [RadarAPI]:
[19:30:06] Frame End async event received!
[19:30:06] [RadarAPI]:
[19:30:06] Start Record command : Success
[19:30:06]
[19:30:06] Record is completed
[19:30:06]
[19:30:06] Record stop is done successfully
[19:30:08] [RadarAPI]: ar1.StartMatlabPostProc("C:\\ti\\mmwave_studio_02_01_01_00\\mmWaveStudio\\PostProc\\adc_data_Raw_0.bin")
[19:30:08] [RadarAPI]: No of files Captured: 1, Total no of frames for each device : 300
[19:30:49] [RadarAPI]: ar1.CaptureCardConfig_StartRecord("C:\\ti\\mmwave_studio_02_01_01_00\\mmWaveStudio\\PostProc\\adc_data_Raw_0.bin", 1)
[19:30:49] [RadarAPI]: Sending start_record command to DCA1000
[19:30:57] [RadarAPI]: ar1.StartFrame()
[19:30:57] [RadarAPI]: Status: Passed
[19:30:57] Frame start async event received!
[19:31:09] [RadarAPI]: Frame Ended
[19:31:11] [RadarAPI]:
[19:31:11] Start Record command : Success
[19:31:11]
[19:31:11] Record is completed
[19:31:11]
[19:31:11] Record stop is done successfully
[19:31:11] Frame End async event received!
[19:31:11] [RadarAPI]:
[19:31:15] [RadarAPI]: ar1.StartMatlabPostProc("C:\\ti\\mmwave_studio_02_01_01_00\\mmWaveStudio\\PostProc\\adc_data_Raw_0.bin")
[19:31:15] [RadarAPI]: No of files Captured: 1, Total no of frames for each device : 300
[19:43:56] [RadarAPI]: ar1.StartMatlabPostProc("C:\\ti\\mmwave_studio_02_01_01_00\\mmWaveStudio\\PostProc\\adc_data_Raw_0.bin")
[19:43:56] [RadarAPI]: No of files Captured: 1, Total no of frames for each device : 300
｝
