IWR1843BOOST: Solid object detection in bin

Hi Shiyu,

To start, please have a look at the High Accuracy Level Sensing lab we offer as a part of the Industrial Radar Toolbox:

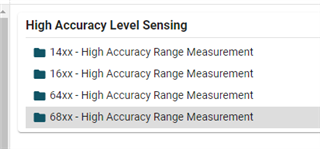

https://dev.ti.com/tirex/explore/node?node=AOchnpGU9eMIM0WTVs.vrw__VLyFKFf__LATEST

For this lab, you will not need the DCA1000.  Currently, there is no support for this lab to run on IWR1843BOOST (as you will see when you visit the link to the Toolbox).  You will need to port this lab to run on IWR1843.  For this you should look to be using the SDK 3.5.

Once you have a look at the toolbox and what we offer for the level sensing solution, please let me know if you have further questions.

Regards,

Brennan

Thank you very much for your reply.

Our test object is a solid silo instead of a liquid. What I want to confirm is whether the solid material detection can be achieved based on the existing equipment?If it can be achieved, how should it be achieved?If this is not possible, what equipment should we buy?

Hi Shiyu,

Any of the offerings listed on the Industrial Toolbox that I linked in my previous reply will allow you to achieve solid level sensing.  You could run it on the IWR1843, but like I mentioned before, you would need to port the lab for that specific device.  A key detail for solid level sensing is that you will need to enable multiple tx and/or multiple rx on the device when developing your application.

Regards,

Brennan

The demo program of 4 radar boards is given in the case. I want to know if I can port one of these programs to iwr1843boost for demonstration. If so, which program should I use and which parameters need to be modified?

HI!

In the case you sent me, I did not find the file（ "mmwave_automotive_toolbox_2_9_1\labs\lab0003_occupancy_detection）

[FAQ] AWR1843: Running AWR1642 code on AWR1843 - Sensors forum - Sensors - TI E2E support forums

The file I found in CCS is as shown in the figure below, and the version of CCS is 3.5.0

Can you provide me with the exact location of "mmwave_automotive_toolbox_2_9_1\labs\lab0003_occupancy_detection？

Hi Shiyu,

pls try to click the 3 dots as the picture shows and manage the version as 2.9.1.

download the version 2.9.1 toolbox and unzip it.

and you will find the lab003 in mmwave_automotive_toolbox_2_9_1\labs\lab0003_occupancy_detection

hi Ken Zhang，Very grateful for your help！

I have downloaded version 2.9.1 as shown in the figure below,But I did not find the folder \lab0003_occupancy_detection。

What i foundIs the Occupancy and Vital Signs Detection folder correct?

Hi

I mean click the download button of 2.9.1 and you will get a zipped package. which name is (mmwave_automotive_toolbox_2_9_1__win.zip).  if you unzip the file and you will find lab003 in the this path

mmwave_automotive_toolbox_2_9_1__win.zip\mmwave_automotive_toolbox_2_9_1\labs\lab_0003_occupancy_detection

thankyou，I have find it

Thank you Ken!

hi

Thank you very much for your help, I have found the relevant documents。Now I compare the two files od_demo_16xx_4zone_strong.cfg and od_demo_18xx_4zone_strong.cfg  and see some parameter changes as shown in the figure below.

The problem I have now is:

1.Which software is the XX.cfg file compiled by? Is it ccs or mmwavestidio or other software？

2.What is the specific meaning of each parameter in the od_demo_16xx_4zone_strong.cfg file? For example, what does chirpCfg 0 0 0 0 0 0 0 1 mean? May I ask what information I should refer to, can you send it to me?

3.How to write a cfg file according to my project requirements? How to find relevant reference materials？

Hi

1.Which software is the XX.cfg file compiled by? Is it ccs or mmwavestidio or other software？

CFG file is sent to the sensor via uart port by GUI (for example demo_visualizer) and the CLI related functions extracts useful parameters from the serial data received.

it is not compiled.

2.What is the specific meaning of each parameter in the od_demo_16xx_4zone_strong.cfg file? For example, what does chirpCfg 0 0 0 0 0 0 0 1 mean? May I ask what information I should refer to, can you send it to me?

Most lines  need to check SDK user guide.  Some specific lines need to check demo user guide.

3.How to write a cfg file according to my project requirements? How to find relevant reference materials？

Pls check this documents to learn more about basics of tuning mmw parameters.

The fundamentals of millimeter wave radar sensors (Rev. A) (ti.com.cn)

Intro to mmWave Sensing : FMCW Radars - Module 1 : Range Estimation | TI.com Video

hi，Brennan Hartigan

I have read the testing tutorial you recommended（https://dev.ti.com/tirex/explore/node?node=AOchnpGU9eMIM0WTVs.vrw__VLyFKFf__LATEST）。

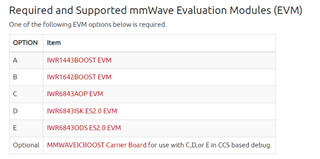

We are ready to repurchase a new millimeter wave radar board according to your recommended case。The problem now is that I don’t know which radar board to buy.

Based on the questions I asked in the forum, can you recommend me which radar board should be purchased on the premise of meeting the needs of use?

I have already purchased IWR1843BOOST before, so I hope that the newly purchased radar board can be connected with IWR1843BOOST to facilitate our further development and use in the future.

Shiyu,

Please see the Industrial mmWave Radar Sensors Overview webpage for more information to assist you in your board decision.

https://www.ti.com/sensors/mmwave-radar/industrial/overview.html

Please open a new thread for any further questions, as this discussion is no longer about the original subject.

Regards,

Brennan
