TMP116EVM: dimension

Kailyn Chen

Genius 9560 points

Part Number: TMP116EVM
Other Parts Discussed in Thread: TMP116,

Hello，

Could you please provide the TMP116 EVM dimension? I didn't find it in EVM user's guide. Thanks.

Best regards

Kailyn

over 3 years ago

+1 Josh Wyatt over 3 years ago

TI__Guru* 91206 points

Dear Kailyn -

Thanks for the post - the TMP116EVM measures approximately 7.8cm long overall (including the USB connector) and 2cm wide (main part of PCB), and with the portion of the PCB where the TMP116 is mounted being approximately 7.5mm wide.

0 Kailyn Chen over 3 years ago in reply to Josh Wyatt

TI__Genius 9560 points

Hi Josh。

Thank you very much for your information.

Our customer asked that if we could provide the 2D or 3D picture to help him to fix the PCB board？

Best regards

Kailyn

0 Josh Wyatt over 3 years ago in reply to Kailyn Chen

TI__Guru* 91206 points

Dear Kailyn -

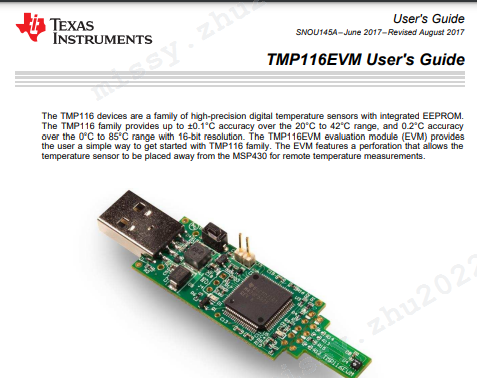

2D images are on pages 20 and 21, here: https://www.ti.com/lit/ug/snou145a/snou145a.pdf

0 Will Wang47 over 3 years ago in reply to Josh Wyatt

TI__Expert 7690 points

Hi Josh,

Could you help provide the layout for detailed dimension board size? I'll send a mail to you.

Thanks and Best regards,

Will

0 Josh Wyatt over 3 years ago in reply to Will Wang47

TI__Guru* 91206 points

Will -

I got your email and replied.
