LM96163: How to trigger ALERT pin signal during over Tachometer limit?

Paul Yeh

Part Number: LM96163

Hi team,

My customer uses this part to do FAN speed monitor but when FAN speed is over Tachometer limit setting but there is no Alert signal output.

Could you advise how to program internal register for correct step?

Based on customer's observation, they found TACH Alarm bit is 1 in REG0x2 and Alert Status' TACH bit is changed. but HW Alert pin is no changed.

Thanks

over 3 years ago

0 Ren Schackmann over 3 years ago

TI__Mastermind 43805 points

Hi Paul,

The TCHAM bit in ALERT Mask register 0x16 must be set for TACH to affect the ALERT pin. This bit is not set by default.

thanks,

ren

0 Paul Yeh over 3 years ago in reply to Ren Schackmann

TI__Genius 16185 points

Ren,

One thing need your clarify.

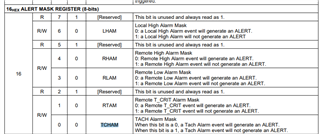

0x16 ALERT Mask Default is set to 0xA4, and this TCHAM bit Default is set to 0,
And from the description of the file, the ALERT signal will be generated only if the bit is set to 0.
Not sure if I misunderstood this part? Thanks

0 Ren Schackmann over 3 years ago in reply to Paul Yeh

TI__Mastermind 43805 points

Hi Paul,

Could you please check if toggling this bit solves your problem? This TCHAM bit and the ALTMSK in the Configuration register are the only relevant settings.

thanks,

ren
