IWR1843BOOST: Antenna design

Marvn Arcangel

Part Number: IWR1843BOOST
Other Parts Discussed in Thread: IWR1843

Hi Team,

Our customer is using IWR1843BOOST and would like to know the following:

Can they use that chip IWR1843 alone to check the antenna functionality?

In regard to the antenna design, the substrate properties of rogers3003 didn't match with the substrate property of rogers 3003 datasheets at 77 GHz. Would you kindly explain this?

Thanks in advance.

Regards,

Marvin

over 3 years ago

0 Angie Mitchell over 3 years ago

TI__Genius 10730 points

Hi Marvin,

Today is a holiday for our TI employees. We will look into this on Monday 4/18 when our employees return to the office.

Thank you,

Angie

0 Marvn Arcangel over 3 years ago in reply to Angie Mitchell

TI__Genius 12575 points

Hi Angie,

Thank you.

I am hoping that you can respond soon.

Regards,

Marvin

0 Sami Mardini over 3 years ago in reply to Marvn Arcangel

TI__Expert 4160 points

Hi Marvin,

Yes they can use IWR1843 to test the antenna functionality.

Can you elaborate more on the differences in RO3003 electrical properties?

Regards,

Sami

0 Marvn Arcangel over 3 years ago in reply to Sami Mardini

TI__Genius 12575 points

Hi Sami,

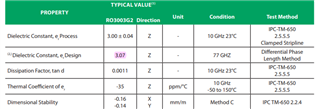

In the antenna design datasheet provided by TI, the rogers 3003 property is (εr =3.66 and tan δ =0.0037) as seen below,

while the property is different in the datasheet provided by rogers.

Upon checking, these are just typical values that represent the average value for the population of the property as listed on the footnote. Am I correct?

ro3003g2--data-sheet.pdf

Thank you and regards.

Marvin

0 Sami Mardini over 3 years ago in reply to Marvn Arcangel

TI__Expert 4160 points

Hi Marvin,

The xWR6843BOOST EVM uses RO4835 LoPro material and not RO3003. This must be a typo in the data sheet.

I would recommend using Er = 3.45 and Loss tangent = 0.0037.

Regards,

Sami
