LDC1614: Webench design: error when exporting to CAD?

AnBer

Part Number: LDC1614

Team,

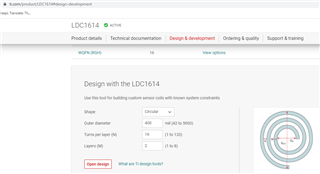

Customer is using the "Design & development/CAD/CAE symbols/Webench tool" from the product page:
https://www.ti.com/product/LDC1614#cad-cae-symbols

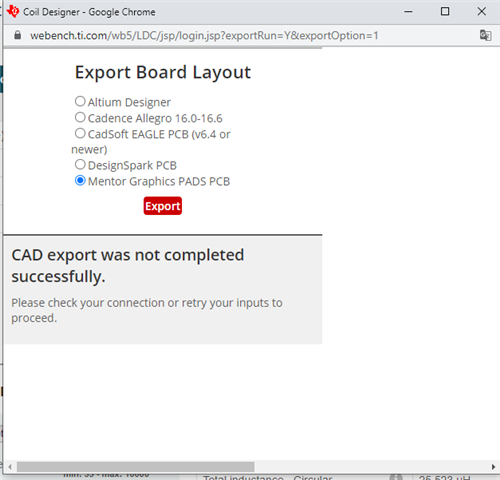

and getting an error when exporting it's design to Mentor PADS.
See link to design + error message posted by customer in the below reply.
Can you please help to fix the issue?

Thanks in advance,

over 3 years ago

0 Joerg Hagmeyer over 3 years ago

Prodigy 40 points

webench.ti.com/.../

0 John Miller - Sensing over 3 years ago in reply to Joerg Hagmeyer

TI__Mastermind 40295 points

Our primary coil design tool is now an Excel-based coil design tool you can download from here.
Some guidance and Help resources can be accessed within the tool, and there are a couple of blog posts that give guidance on the tool's use.
The blog How to use the LDC calculations tool gives an overview, and How you can use the LDC racetrack inductor designer tool provides a step-by-step example.
Unfortunately the Excel-based tool does not support an export of the coil design to a layout tool.

I hope this helps. Please let me know if you have any questions.

Regards,
John

0 AnBer over 3 years ago in reply to John Miller - Sensing

TI__Mastermind 30110 points

Hi John,

Thanks for the answer.
The Tools works apparently for Altium, but not for PADS.
May be a workaround would be to export only the Gerber file so that it might be used with any CAD tools.
Is it planned?
The automatic design coil generation can really save a lot of time so it make sense to fix it.

0 John Miller - Sensing over 3 years ago in reply to AnBer

TI__Mastermind 40295 points

It certainly makes sense, but currently there are no plans currently to have the tool export to Gerber files.
Regards,
John
