DRV5021: Error '1004' in Magnetic Sensing Proximity Tool (Rev. D)

Hi Isaac,

Thank you for the information.

I asked customer tried the file you sent on above link. And I found there was newer version(D->E) on TI.com so I also asked customer to try it. But still both came out the same message I showed in my post above.

The same message also happened to me when I tried to open the file you shared so maybe it is not excel version related issue?

Could you help confirm where else we should check? Please let me know if you need more information from customer. Such as operation system version, etc.

Thanks.

Regards,

Jo

Hi Isaac,

More information here, the same error occurred when I tried to enable macro with the file you shared.

After that, another error happened when I selected "Magnet Movement".

Thanks.

Regards,

Jo

Hello Jo,

Thanks for all the information!

Did you obtain the same error message when you attempted to open the tool that is up on the web in your computer?

Are you also using MS 365 or do you have the actual software installed in your system?

Can you provide both yours and the customer version of Windows? I know you said customer was using 32 bit is your version 64 bit?

Best,

Isaac

Hi Isaac,

It worked without problem for me with E version Tool on TI.com.

My system is 64bit, Microsoft Windows 10 Pro and version is 10.0.19044. Excel version is 2019, actual software installed in my system.

I'm confirming customer's Windows version, I'll let you know when I get it.

Just want to double check, does the tool proved working with 32bit Windows?

Thanks.

Regards,

Jo

Hello Jo,

Thats great to hear it worked out in your system, that is a similar version the tool was created in so I am not surprised you didnt have any issues on your end.

We do not have a 32 bit version of Windows to test out the tool so we are currently not aware if it operates well in this version. We have not gotten any threads on this so far so I do not have much feedback for performance on 32bit systems.

Best,

Isaac

Hi Isaac,

Thank you. I'm still getting system information from customer.

Just want to confirm, is there any minimum system requirement to run the excel simulation tool?

Thanks.

Regards,

Jo

Hello Jo,

Thank you, we are awaiting the customers response.

I am not sure on this one I would have to check with the rest of the team to see if we have a minimum system requirement for the tool.

Best,

Isaac

Hello Jo,

Just spoke to the team member that did most of the development on the tool and a minimum system requirement was not developed. Please send the customers system details once you obtain them to see if we can test a similar system.

Best,

Isaac

Hi Isaac,

Following is customer's system info. BTW, their system supports Marco.

Please let me know if any updates based on following info.

・System type：64 bit OS，x64 base processor

・Edition : Windows 10 Pro

・Version：21H2

・OS Build：19044.1706

・Experience：Windows Feature Experience Pack 120.2212.4170.0

Thanks.

Regards,

Jo

Hello Jo,

Thanks for the info here. Let me check with the team to see if we have something similar to test. Has the customer tried opening the MS office 365 on the desktop to see if they are getting the same error?

Best,

Isaac

Hi Isaac,

Customer is using desktop version MS office 365 and error occurs.

Look forward to your update. Thanks.

Regards,

Jo

Hello Jo,

Just to confirm is it still the same '1004 error' from above?

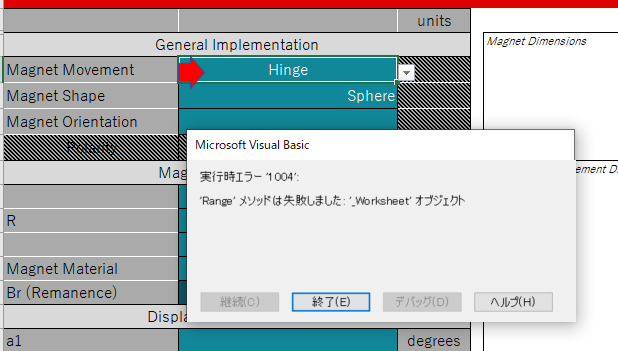

Would you be able to translate the error message in the picture below for us?

Best,

Isaac

Hi Isaac,

Same error happens to customer when he use D, E revision and the file you provided in another thread.

Following is translate of customer's error. Thanks.

Regards,

Jo

Hey Hung,

Has your customer attempted hitting the "Clear" button on row 50?  It could be that certain important variables were not initialized at start up, depending on when macros were enabled.  The "clear" button removes all menu entries and re-runs the function for defining certain variables used in the code.

Hi Patrick,

Marco is enabled before he opens the excel file and the error occurs right after he opens the excel file. He didn't hit any button and input anything to excel.

BTW, just for your information, customer wasn't able to install "Pspice for TI" before due to security management in their company.

I'm not sure if this is related, but will it help to enable "Trust access to VBA project object model"?

• Start Microsoft Excel
• On the Menu Bar select "File" > "[Excel] Options" > "Trust Center" > "Trust Center Settings..." > "Macro Settings"
• In the top section, select the radio button for "Disable all macros with notification"
• In the bottom section, check the box for "Trust access to VBA project object model"
• Click "OK" and "OK" to save the settings
• Close Excel

Thanks.

Regards,

Jo

Hello Jo,

Thanks for providing that information.  I do not have "Trust access to VBA project object model" selected on my computer, yet mine still works.

Is the version of the tool he is running never been run before (by you or himself).  I did get a similar error message after one successful run for certain tool entries.  This is related to certain cells getting overwritten.

Hi Patrick,

Please forget "Trust access to VBA project object model", I didn't select it and it worked for me too, I just thought maybe it is security related due to customer's computer setting.

Like I mentioned earlier, customer got the error message right after he opened the file before entering anything.

Look forward to any update to this error. Thanks.

Regards,

Jo

Thanks for the updates Jo!

I will make sure Patrick reviews the information provided as he works on trying to find a workaround!

Best,

Isaac

Hi Isaac,

Thank you. Appreciate the update from team.

Regards,

Jo

No worries Jo, glad to help out!

Best,

Isaac
