Sebum is attached to the new sensor I purchased.

We want to measure accurate electromagnetic wave characteristics using sensors.

However, the sebum adhering to the antenna becomes a dielectric, which adversely affects the characteristics of radio waves.

Therefore, accurate measurement cannot be performed, so please replace it with a new and clean antenna.

over 3 years ago

0 Cesar over 3 years ago

TI__Guru*** 148804 points

Hi,

As per the EVM manufacturer oxidation does not affect the electromangnetic performance of the board.

Have you made actual measurements with the board?

Thank you

Cesar

0 Ryuta Kawai over 3 years ago in reply to Cesar

Prodigy 70 points

It is up to you to prove that the electromangnetic perfomance are unaffected.
This is not problem with EVM behavior. The problem as a semiconductor company is that it offers products with fingerprints.

Thank you

0 CHETHAN KUMAR Y.B. over 3 years ago in reply to Ryuta Kawai

TI__Mastermind 25835 points

Hello Ryuta Kawai,

This behavior is due to immersion silver pcb surface finish. Known to have this behavior when exposed to air.

Please refer to below thread for more details.

https://e2e.ti.com/support/sensors-group/sensors/f/sensors-forum/939500/iwr1642-silver-oxidation---antenna-coating-or-alternate-finish/3470330?tisearch=e2e-sitesearch&keymatch=oxidation#3470330

Thanks and regards,

CHETHAN KUMAR Y.B.

0 Ryuta Kawai over 3 years ago in reply to CHETHAN KUMAR Y.B.

Prodigy 70 points

Thanks for your evidence.

I will contact you again.

Please give me some time.

0 CHETHAN KUMAR Y.B. over 3 years ago in reply to Ryuta Kawai

TI__Mastermind 25835 points

Hello Ryuta Kawai,

Thanks for your confirmation. Please reach out to us for any further issues.

Thanks and regards,

CHETHAN KUMAR Y.B.

0 Ryuta Kawai over 3 years ago in reply to CHETHAN KUMAR Y.B.

Prodigy 70 points

Hello, CHETHAN KUMAR Y.B.

Cannot pass through in-house inspection.Fingerprint are not attached by us, so ask for replacement.

The electromagnnetic perfomance inspection is then done.

Thank you

Ryuta Kawai

0 CHETHAN KUMAR Y.B. over 3 years ago in reply to Ryuta Kawai

TI__Mastermind 25835 points

Hello Ryuta Kawai,

Will check and come back to you.

Thanks and regards,

CHETHAN KUMAR Y.B.

0 Vivek Dham over 3 years ago in reply to CHETHAN KUMAR Y.B.

TI__Guru 58035 points

Hello Ryuta,

Are you referring to the marks on the EVM? The PCBs are cleaned after assembly to remove any excess flux around the components. This is a standard procedure. The "darkening" of these marks is due to the oxidation of the silver finish used on the PCB, as pointed out by Chethan above, which is proved to not cause any RF performance degradation.

Regards,

Vivek

0 Ryuta Kawai over 3 years ago in reply to Vivek Dham

Prodigy 70 points

Hello Vivek

The problem is not about RF performance. The problem is not pass in-house quality inspection.

So I'm asking you to replace it.

Thanks,

Ryuta Kawai

0 Vivek Dham over 3 years ago in reply to Ryuta Kawai

TI__Guru 58035 points

Hello Ryuta,

Please refer to the "IMPORTANT NOTICE AND DISCLAIMER" in the EVM user guide. If you have any specific quality checks for your particular application , we do not garuntee meeting those requirements. This is purely for evaluation purpose.

Regards,
Vivek

0 Vivek Dham over 3 years ago in reply to Vivek Dham

TI__Guru 58035 points

Hello Ryuta,

Do you have any further questions?

Regards,
Vivek

0 Ryuta Kawai over 3 years ago in reply to Vivek Dham

Prodigy 70 points

Hello Vivek、

We are currently evaluating the AWR2944EVM, but replacement is still essential.

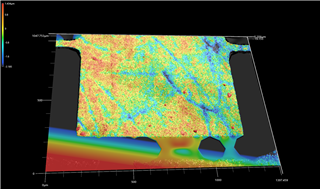

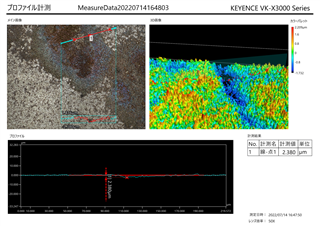

When observing the antenna with a laser microscope, linear scratches were confirmed in addition to fingerprints.

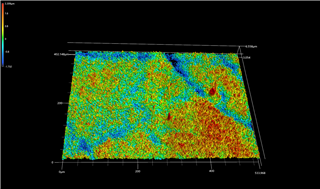

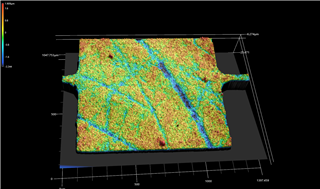

Red area for fingerprints, blue area for linear scratches.
Linear scratches are thought to be due to factors other than fingerprints.

"IMPORTANT NOTICE AND DISCLAIMER" also has no explanation about quality assurance.
Please specify the part you are pointing out

Please replace it for these reasons.

Thanks and regards,
Ryuta Kawai

0 Ryuta Kawai over 3 years ago in reply to Vivek Dham

Prodigy 70 points

Hello Vivek,

When can you answer my quastion?

Best regards,
Ryuta Kawai

0 Vivek Dham over 3 years ago in reply to Ryuta Kawai

TI__Guru 58035 points

Hello Ryuta,

I had a discussion with our manufacturer. The microscopic scratches are most likely caused during the cleaning process followed post the component soldering. This is done to remove any excess flux from the PCB.

Request you to continue your evaluation using the EVM you have and let us know if you face any issues in the evaluation.

Regards,

Vivek
