IWR6843AOP: Radar Radiation Pattern Diagram with 360 degress (-180 to 180)

Jack

Part Number: IWR6843AOP
Other Parts Discussed in Thread: IWR6843,

Hi TI Champs.

There's a request from Customer who is under product certification process.

Among the data requested by the certification company, the Radar radiation pattern is between -80 and +80 respectively on the existing IWR6843 datasheet

For domestic certification, we need data representing 360 degrees (-180 to +180).

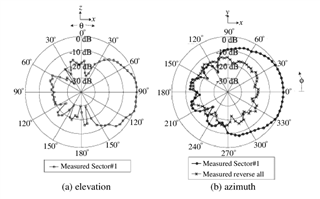

Please the Necessary equired data like below.

Thanks.

Regards,

Jack

IWR6843AOP로 설계된 제품에 대하여 인증의뢰 중입니다.

인증업체에서 요청한 자료중에 Radar 방사패턴이 기존 IWR6843 datasheet상에는 Azimute 및 Elevator 각각 -80 ~ +80사이 자료만 있는데,

국내인증을 위하여 360도(-180 ~ +180)가 표현된 자료가 필요합니다.

over 3 years ago

0 E. Shareef over 3 years ago

TI__Genius 16330 points

Forwarding your request to an expert on the subject. Please allow them a day to get back to you.

Thanks,

Shareef

0 Sami Mardini over 3 years ago

TI__Expert 4160 points

Hi Jack,

Is this a customer's board that they are trying to certify with our IWR6843AOP part/device?

Regards,

Sami

0 Jack over 3 years ago in reply to Sami Mardini

Mastermind 9105 points

Hi Sami.

Yes, It's for customer's board. They need 360degree data for their certification process.

0 Sami Mardini over 3 years ago in reply to Jack

TI__Expert 4160 points

Hi Jack,

If this is the customer's board then they need to run radiation pattern measurements on their side.

Regards,

Sami

0 Jack over 3 years ago in reply to Sami Mardini

Mastermind 9105 points

Hi Sami

Understood. But Customer still requests to provide 360degree based radian pattern diagram rather than 160degree(-80~80) since they does not design the customer antenna with AOP. Certification Team needs the data from DATASHEET of chipset.

Morever the client company has no equipment to measure the radian diagram, so please think about it again.

Thanks.

Regards,

Jack

0 Sami Mardini over 3 years ago in reply to Jack

TI__Expert 4160 points

Hi jack,

When we measure radiation pattern in the lab. We measure from -80 to +80 degree since we are interested in the antenna performance. We do not measure beyond these angles. The backscatter radiation will be a function of both the device package plus the actual PCB that the device is soldered on.

Regards,
Sami
