Dear Team,
I capture some data from DCA1000 and saved as .bin file. I used matlab script to change .bin file to .mat file. But I got some error can you help me regarding this. below are the matlab scripts and errors.
"
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
%
% (C) Copyright 2018 Texas Instruments, Inc.
%
% Redistribution and use in source and binary forms, with or without
% modification, are permitted provided that the following conditions
% are met:
%
% Redistributions of source code must retain the above copyright
% notice, this list of conditions and the following disclaimer.
%
% Redistributions in binary form must reproduce the above copyright
% notice, this list of conditions and the following disclaimer in the
% documentation and/or other materials provided with the
% distribution.
%
% Neither the name of Texas Instruments Incorporated nor the names of
% its contributors may be used to endorse or promote products derived
% from this software without specific prior written permission.
%
% THIS SOFTWARE IS PROVIDED BY THE COPYRIGHT HOLDERS AND CONTRIBUTORS
% "AS IS" AND ANY EXPRESS OR IMPLIED WARRANTIES, INCLUDING, BUT NOT
% LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR
% A PARTICULAR PURPOSE ARE DISCLAIMED. IN NO EVENT SHALL THE COPYRIGHT
% OWNER OR CONTRIBUTORS BE LIABLE FOR ANY DIRECT, INDIRECT, INCIDENTAL,
% SPECIAL, EXEMPLARY, OR CONSEQUENTIAL DAMAGES (INCLUDING, BUT NOT
% LIMITED TO, PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE,
% DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY
% THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT
% (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE
% OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE.
%
%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%%
%
% Overview:
% ===========
% This script reads a JSON file generated from Radar Studio which contains
% data card captured radar data and its cpature and front end parameters.
% It reads in data from binary file(s) name stored in JSON file and constructs
% raw data in frames, chirps and channels. It then performs range FFT to generate
% radar cube.
% If file name is provided to export raw ADC data or radar cube, it
% exports data in Matlab mat file.
% If debug plot option is enabled, it plots raw ADC data and radar cube
% data based on the selection of frame index, chirp index and RX channel.
%
%
% Matlab version:
% =================
% 2017a and later to support JSON files.
%
%
% Assumptions:
% ==============
% 1. Number of ADC bits is 16. (12 and 14 bits are not supported
% 2. Data logging mode
% - Raw
% 3. LVDS packet format
% - ADC
% 4. LVDS lanes
% - xWR12xx/xWR14xx : 4 lanes
% - xWR16xx/xWR18xx/xWR68xx : 2 lanes
% 5. Data capture data format
% - Complex only
% 6. Format
% - Format 0
% 7. Number of RX antenna
% - 1, 2, or 4
% 8. Frame configuration
% - Single frame
% 9. Catpure device
% - DCA1000 only
%
%
% Syntax:
% =========
% rawDataReader('JSON setup File name','raw data file name', 'radarCube data file name', 'debug plot')
% - 'JSON setup File name', JSON setup file
% - 'raw data file name', file to save the raw ADC data
% - 'radarCube data file name', file to save radar cube data
% - 'debug plot', flag to enable plot of raw data and radar cube
%
%
function rawDataReader(setupJsonFileName, rawDataFileName, radarCubeDataFileName, debugPlot)
close all;
% Global parameters
global Params;
global ui;
global dataSet;
global EXIT_KEY_PRESSED
EXIT_KEY_PRESSED = 0;
% Read configuration and setup files
setupJSON = jsondecode(fileread('68xx.setup.json'));
% Read mmwave JSON file
jsonMmwaveFileName = setupJSON.configUsed;
mmwaveJSON = jsondecode(fileread('68xx.mmwave.json'));
% Print parsed current system parameter
fprintf('mmwave Device:%s\n', setupJSON.mmWaveDevice);
% Read bin file name
binFilePath = setupJSON.capturedFiles.fileBasePath;
numBinFiles = length(setupJSON.capturedFiles.files);
if( numBinFiles < 1)
error('Bin File is not available');
end
Params.numBinFiles = numBinFiles;
for idx=1:numBinFiles
binFileName{idx} = strcat(binFilePath, '\', setupJSON.capturedFiles.files(idx).processedFileName);
end
% Generate ADC data parameters
adcDataParams = dp_generateADCDataParams(mmwaveJSON);
% Generate radar cube parameters
radarCubeParams = dp_generateRadarCubeParams(mmwaveJSON);
% Generate RF parameters
Params.RFParams = dp_generateRFParams(mmwaveJSON, radarCubeParams, adcDataParams);
Params.NSample = adcDataParams.numAdcSamples;
Params.NChirp = adcDataParams.numChirpsPerFrame;
Params.NChan = adcDataParams.numRxChan;
Params.NTxAnt = radarCubeParams.numTxChan;
Params.numRangeBins = radarCubeParams.numRangeBins;
Params.numDopplerBins = radarCubeParams.numDopplerChirps;
Params.rangeWinType = 0;
% Validate configuration
validConf = dp_validateDataCaptureConf(setupJSON, mmwaveJSON);
if(validConf == false)
error("Configuraion from JSON file is not Valid");
end
% Open raw data from file
Params.NFrame = 0;
for idx = 1:numBinFiles
[Params.fid_rawData(idx), errmsg] = fopen('adc_data.bin', 'r');
if(Params.fid_rawData(idx) == -1)
fprintf("Can not open Bin file %s, - %s\n",binFileName{idx}, errmsg);
error('Quit with error');
end
% Calculate number of Frames in bin File
try
Params.NFramePerFile(idx) = dp_getNumberOfFrameFromBinFile('adc_data.bin');
Params.NFrame = Params.NFrame + Params.NFramePerFile(idx);
catch
if(Params.NFramePerFile(idx) == 0)
error("Not enough data in binary file");
end
end
end
% Export data
dp_exportData('rawDataFileName.mat', 'radarCubeDataFileName.mat');
% Start example UI and update time domain/range Profile plots
if(debugPlot)
ui.figHandle = initDisplayPage(setupJSON.mmWaveDevice);
% Start up processing display page
% load and Plot the first frame
dp_updateFrameData(1);
ui_updateFramePlot();
% Wait for UI interactions
while (~EXIT_KEY_PRESSED)
pause(0.01);
end
close(ui.figHandle);
end
%close and delete handles before exiting
for idx = 1: numBinFiles
fclose(Params.fid_rawData(idx));
end
close all;
end
% ============================================================
% Configuration and Data File Parsing Functions
% ============================================================
% -----------------------------------------------------------------------
% Description: This function loads one frame data and perform range
% FFT
% Input: exportRawDataFile - file name to export raw data
% export1DFFTDataFile - file name to export 1D FFT data
% Output: mat files
% -----------------------------------------------------------------------
function dp_exportData(rawDataFileName, radarCubeDataFileName)
global dataSet
global Params
% Prepare data to be saved in mat-file
if ((~strcmp(rawDataFileName, '')) || (~strcmp(rawDataFileName, '')))
for frameIdx=1:Params.NFrame
dp_updateFrameData(frameIdx);
rawADCData{frameIdx} = dataSet.rawDataUint16;
radarCubeData{frameIdx} = single(dataSet.radarCubeData);
end
end
% Export raw ADC data
if (~strcmp(rawDataFileName, ''))
adcRawData.rfParams = Params.RFParams;
adcRawData.data = rawADCData;
adcRawData.dim.numFrames = Params.NFrame;
adcRawData.dim.numChirpsPerFrame = Params.adcDataParams.numChirpsPerFrame;
adcRawData.dim.numRxChan = Params.NChan;
adcRawData.dim.numSamples = Params.NSample;
% Save params and data to mat file
save (rawDataFileName, 'adcRawData', '-v7.3');
end
% Export rangeFFT data
if (~strcmp(rawDataFileName, ''))
radarCubeParams = Params.radarCubeParams;
radarCube.rfParams = Params.RFParams;
radarCube.data = radarCubeData;
radarCube.dim.numFrames = Params.NFrame;
radarCube.dim.numChirps = radarCubeParams.numTxChan * radarCubeParams.numDopplerChirps;
radarCube.dim.numRxChan = radarCubeParams.numRxChan;
radarCube.dim.numRangeBins = radarCubeParams.numRangeBins;
radarCube.dim.iqSwap = radarCubeParams.iqSwap;
% Save params and data to mat file
save (radarCubeDataFileName,'radarCube', '-v7.3');
end
end
% -----------------------------------------------------------------------
% Description: This function loads one frame data and perform range
% FFT
% Input: frameIdx - frame index
% Output: dataSet.rawFrameData(complex)
% dataSet.radarCubeData(complex)
% -----------------------------------------------------------------------
function dp_updateFrameData(frameIdx)
global Params
global dataSet
% Find binFin index
currFrameIdx = 0;
fidIdx = 0;
for idx = 1: Params.numBinFiles
if frameIdx <= (Params.NFramePerFile(idx) + currFrameIdx)
fidIdx = idx;
break;
else
currFrameIdx = currFrameIdx + Params.NFramePerFile(idx);
end
end
if(fidIdx <= Params.numBinFiles)
% Load raw data from bin file
rawDataComplex = dp_loadOneFrameData(Params.fid_rawData(fidIdx), Params.dataSizeOneFrame, frameIdx - currFrameIdx);
% Read in raw data in uint16
dataSet.rawDataUint16 = uint16(rawDataComplex);
% time domain data y value adjustments
timeDomainData = rawDataComplex - ( rawDataComplex >=2.^15).* 2.^16;
% reshape data based on capture configurations
dp_generateFrameData(timeDomainData);
% Perform rangeFFT
dataSet.radarCubeData = processingChain_rangeFFT(Params.rangeWinType);
end
end
% -----------------------------------------------------------------------
% Description: This function calcultes number of frames of data available
% in binary file
% Input: binFileName - binary file name
% Output: NFrame - number of Frames
% -----------------------------------------------------------------------
function [NFrame] = dp_getNumberOfFrameFromBinFile(binFileName)
global Params
try
binFile = dir(binFileName);
fileSize = binFile.bytes;
catch
error('Reading Bin file failed');
end
NFrame = floor(fileSize/Params.dataSizeOneFrame);
end
% -----------------------------------------------------------------------
% Description: This function load one frame data from binary file
% Input: fid_rawData - fid for binary file
% dataSizeOneFrame - size of one frame data
% frameIdx - frame index
% Output: rawData - one frame of raw ADC data
% -----------------------------------------------------------------------
function [rawData] = dp_loadOneFrameData(fid_rawData, dataSizeOneFrame, frameIdx)
% find the first byte of the frame
fseek(fid_rawData, (frameIdx - 1)*dataSizeOneFrame, 'bof');
try
% Read in raw data in complex single
rawData = fread(fid_rawData, dataSizeOneFrame/2, 'uint16=>single');
catch
error("error reading binary file");
end
if(dataSizeOneFrame ~= length(rawData)*2)
fprintf("dp_loadOneFrameData, size = %d, expected = %d \n",length(rawData), dataSizeOneFrame);
error("read data from bin file, have wrong length");
end
end
% -----------------------------------------------------------------------
% Description: This function validates configuration from JSON files
% Input: setupJson - setup JSON configuration structure
% mmwaveJSON - mmwave JSON configuration structure
% Output: confValid - true if the configuration is valid
% -----------------------------------------------------------------------
function [confValid] = dp_validateDataCaptureConf(setupJson, mmwaveJSON)
global Params
mmWaveDevice = setupJson.mmWaveDevice;
% Supported platform list
supportedPlatform = {'awr1642',...
'iwr1642',...
'awr1243',...
'iwr1243',...
'awr1443',...
'iwr1443',...
'awr1843',...
'iwr1843',...
'iwr6843'};
confValid = true;
% Validate if the device is supported
index = find(contains(supportedPlatform,mmWaveDevice));
if(index == 0)
fprintf("Platform not supported : %s \n", mmWaveDevice);
confValid = false;
end
% Validate the captureHardware
if(setupJson.captureHardware ~= 'DCA1000')
confValid = false;
fprintf("Capture hardware is not supported : %s \n", setupJson.captureHardware);
end
% Validate ADC_ONLY capture
if (mmwaveJSON.mmWaveDevices.rawDataCaptureConfig.rlDevDataPathCfg_t.transferFmtPkt0 ~= '0x1')
confValid = false;
fprintf("Capture data format is not supported : %s \n", mmwaveJSON.mmWaveDevices.rawDataCaptureConfig.rlDevDataPathCfg_t.transferFmtPkt0);
end
% Validate the dataLoggingMode
if(setupJson.DCA1000Config.dataLoggingMode ~= 'raw')
confValid = false;
fprintf("Capture data logging mode is not supported : %s \n", setupJson.DCA1000Config.dataLoggingMode);
end
% Validate the Capture configuration
Params.numLane = dp_numberOfEnabledChan(sscanf(mmwaveJSON.mmWaveDevices.rawDataCaptureConfig.rlDevLaneEnable_t.laneEn, '0x%x'));
Params.chInterleave = mmwaveJSON.mmWaveDevices.rawDataCaptureConfig.rlDevDataFmtCfg_t.chInterleave;
if ((mmWaveDevice == 'awr1443') | (mmWaveDevice == 'iwr1443') | (mmWaveDevice == 'awr1243') | (mmWaveDevice == 'iwr1243'))
if(Params.numLane ~= 4)
fprintf(" %d LVDS Lane is not supported for device : %s ", Params.numLane, mmWaveDevice);
confValid = false;
end
if(Params.chInterleave ~= 0)
fprintf(" Interleave mode %d is not supported for device : %s ", Params.chInterleave, mmWaveDevice);
confValid = false;
end
else
if(Params.numLane ~= 2)
fprintf(" %d LVDS Lane is not supported for device : %s ", Params.numLane, mmWaveDevice);
confValid = false;
end
if(Params.chInterleave ~= 1)
fprintf(" Interleave mode %d is not supported for device : %s ", Params.chInterleave, mmWaveDevice);
confValid = false;
end
end
end
% -----------------------------------------------------------------------
% Description: This function reshape raw binary data based on capture
% configuration, generates data in cell of
% [number of chirps, number of RX channels, number of ADC samples]
% Input: rawData - raw ADC data
% Output: frameData - reshaped ADC data
% -----------------------------------------------------------------------
function [frameData] = dp_generateFrameData(rawData)
global Params
global dataSet
if(Params.numLane == 2)
% Convert 2 lane LVDS data to one matrix
frameData = dp_reshape2LaneLVDS(rawData);
elseif (Params.numLane == 4)
% Convert 4 lane LVDS data to one matrix
frameData = dp_reshape4LaneLVDS(rawData);
else
fprintf("%d LVDS lane is not supported ", Params.numLane);
end
% checking iqSwap setting
if(Params.adcDataParams.iqSwap == 1)
% Data is in ReIm format, convert to ImRe format to be used in radarCube
frameData(:,[1,2]) = frameData(:,[2,1]);
end
% Convert data to complex: column 1 - Imag, 2 - Real
frameCplx = frameData(:,1) + 1i*frameData(:,2);
% initialize frameComplex
frameComplex = single(zeros(Params.NChirp, Params.NChan, Params.NSample));
% Change Interleave data to non-interleave
if(Params.chInterleave == 1)
% non-interleave data
temp = reshape(frameCplx, [Params.NSample * Params.NChan, Params.NChirp]).';
for chirp=1:Params.NChirp
frameComplex(chirp,:,:) = reshape(temp(chirp,:), [Params.NSample, Params.NChan]).';
end
else
% interleave data
temp = reshape(frameCplx, [Params.NSample * Params.NChan, Params.NChirp]).';
for chirp=1:Params.NChirp
frameComplex(chirp,:,:) = reshape(temp(chirp,:), [Params.NChan, Params.NSample]);
end
end
% Save raw data
dataSet.rawFrameData = frameComplex;
end
% -----------------------------------------------------------------------
% Description: This function counts number of enabled channels from
% channel Mask.
% Input: chanMask
% Output: Number of channels
% -----------------------------------------------------------------------
function [count] = dp_numberOfEnabledChan(chanMask)
MAX_RXCHAN = 4;
count = 0;
for chan= 0:MAX_RXCHAN - 1
bitVal = pow2(chan);
if (bitand(chanMask,bitVal) == (bitVal))
count = count + 1;
chanMask = chanMask-bitVal;
if(chanMask == 0)
break;
end
end
end
end
% -----------------------------------------------------------------------
% Description: This function generates ADC raw data Parameters
% Input: mmwaveJSON
% Output: adcDataParams
% -----------------------------------------------------------------------
function [adcDataParams] = dp_generateADCDataParams(mmwaveJSON)
global Params
frameCfg = mmwaveJSON.mmWaveDevices.rfConfig.rlFrameCfg_t;
adcDataParams.dataFmt = mmwaveJSON.mmWaveDevices.rfConfig.rlAdcOutCfg_t.fmt.b2AdcOutFmt;
adcDataParams.iqSwap = mmwaveJSON.mmWaveDevices.rawDataCaptureConfig.rlDevDataFmtCfg_t.iqSwapSel;
adcDataParams.chanInterleave = mmwaveJSON.mmWaveDevices.rawDataCaptureConfig.rlDevDataFmtCfg_t.chInterleave;
adcDataParams.numChirpsPerFrame = frameCfg.numLoops * (frameCfg.chirpEndIdx - frameCfg.chirpStartIdx + 1);
adcDataParams.adcBits = mmwaveJSON.mmWaveDevices.rfConfig.rlAdcOutCfg_t.fmt.b2AdcBits;
rxChanMask = sscanf(mmwaveJSON.mmWaveDevices.rfConfig.rlChanCfg_t.rxChannelEn, '0x%x');
adcDataParams.numRxChan = dp_numberOfEnabledChan(rxChanMask);
adcDataParams.numAdcSamples = mmwaveJSON.mmWaveDevices.rfConfig.rlProfiles.rlProfileCfg_t.numAdcSamples;
dp_printADCDataParams(adcDataParams);
% Calculate ADC data size
if(adcDataParams.adcBits == 2)
if (adcDataParams.dataFmt == 0)
% real data, one sample is 16bits=2bytes
gAdcOneSampleSize = 2;
elseif ((adcDataParams.dataFmt == 1) || (adcDataParams.dataFmt == 2))
% complex data, one sample is 32bits = 4 bytes
gAdcOneSampleSize = 4; %2 bytes
else
fprintf('Error: unsupported ADC dataFmt');
end
else
fprintf('Error: unsupported ADC bits (%d)', adcDataParams.adcBits);
end
dataSizeOneChirp = gAdcOneSampleSize * adcDataParams.numAdcSamples * adcDataParams.numRxChan;
Params.dataSizeOneFrame = dataSizeOneChirp * adcDataParams.numChirpsPerFrame;
Params.dataSizeOneChirp = dataSizeOneChirp;
Params.adcDataParams = adcDataParams;
end
% -----------------------------------------------------------------------
% Description: This function prints ADC raw data Parameters
% Input: adcDataParams
% Output: None
% -----------------------------------------------------------------------
function [] = dp_printADCDataParams(adcDataParams)
fprintf('Input ADC data parameters:\n');
fprintf(' dataFmt:%d\n',adcDataParams.dataFmt);
fprintf(' iqSwap:%d\n',adcDataParams.iqSwap);
fprintf(' chanInterleave:%d\n',adcDataParams.chanInterleave);
fprintf(' numChirpsPerFrame:%d\n',adcDataParams.numChirpsPerFrame);
fprintf(' adcBits:%d\n',adcDataParams.adcBits);
fprintf(' numRxChan:%d\n',adcDataParams.numRxChan);
fprintf(' numAdcSamples:%d\n',adcDataParams.numAdcSamples);
end
% -----------------------------------------------------------------------
% Description: This function generates radar cube data Matrix Parameters
% Input: mmwaveJSON
% Output: radarCubeParams
% -----------------------------------------------------------------------
function [radarCubeParams] = dp_generateRadarCubeParams(mmwaveJSON)
global Params
frameCfg = mmwaveJSON.mmWaveDevices.rfConfig.rlFrameCfg_t;
radarCubeParams.iqSwap = mmwaveJSON.mmWaveDevices.rawDataCaptureConfig.rlDevDataFmtCfg_t.iqSwapSel;
rxChanMask = sscanf(mmwaveJSON.mmWaveDevices.rfConfig.rlChanCfg_t.rxChannelEn, '0x%x');
radarCubeParams.numRxChan = dp_numberOfEnabledChan(rxChanMask);
radarCubeParams.numTxChan = frameCfg.chirpEndIdx - frameCfg.chirpStartIdx + 1;
radarCubeParams.numRangeBins = pow2(nextpow2(mmwaveJSON.mmWaveDevices.rfConfig.rlProfiles.rlProfileCfg_t.numAdcSamples));
radarCubeParams.numDopplerChirps = mmwaveJSON.mmWaveDevices.rfConfig.rlFrameCfg_t.numLoops;
% 1D Range FFT output : cmplx16ImRe_t x[numChirps][numRX][numRangeBins]
radarCubeParams.radarCubeFmt = 1; %RADAR_CUBE_FORMAT_1;
dp_printRadarCubeParams(radarCubeParams);
Params.radarCubeParams = radarCubeParams;
end
% -----------------------------------------------------------------------
% Description: This function prints radar cube data Matrix Parameters
% Input: mmwaveJSON
% Output: radarCubeParams
% -----------------------------------------------------------------------
function [] = dp_printRadarCubeParams(radarCubeParams)
fprintf('Radarcube parameters:\n');
fprintf(' iqSwap:%d\n',radarCubeParams.iqSwap);
fprintf(' radarCubeFmt:%d\n',radarCubeParams.radarCubeFmt);
fprintf(' numDopplerChirps:%d\n',radarCubeParams.numDopplerChirps);
fprintf(' numRxChan:%d\n',radarCubeParams.numRxChan);
fprintf(' numTxChan:%d\n',radarCubeParams.numTxChan);
fprintf(' numRangeBins:%d\n',radarCubeParams.numRangeBins);
end
% -----------------------------------------------------------------------
% Description: This function generates mmWave Sensor RF parameters
% Input: mmwaveJSON, radarCubeParams, adcDataParams
% Output: None
% -----------------------------------------------------------------------
function [RFParams] = dp_generateRFParams(mmwaveJSON, radarCubeParams, adcDataParams)
C = 3e8;
profileCfg = mmwaveJSON.mmWaveDevices.rfConfig.rlProfiles.rlProfileCfg_t;
RFParams.startFreq = profileCfg.startFreqConst_GHz;
% Slope const (MHz/usec)
RFParams.freqSlope = profileCfg.freqSlopeConst_MHz_usec;
% ADC sampling rate in Msps
RFParams.sampleRate = profileCfg.digOutSampleRate / 1e3;
% Generate radarCube parameters
RFParams.numRangeBins = pow2(nextpow2(adcDataParams.numAdcSamples));
RFParams.numDopplerBins = radarCubeParams.numDopplerChirps;
RFParams.bandwidth = abs(RFParams.freqSlope * profileCfg.numAdcSamples / profileCfg.digOutSampleRate);
RFParams.rangeResolutionsInMeters = C * RFParams.sampleRate / (2 * RFParams.freqSlope * RFParams.numRangeBins * 1e6);
RFParams.dopplerResolutionMps = C / (2*RFParams.startFreq * 1e9 *...
(profileCfg.idleTimeConst_usec + profileCfg.rampEndTime_usec ) *...
1e-6 * radarCubeParams.numDopplerChirps * radarCubeParams.numTxChan);
RFParams.framePeriodicity = mmwaveJSON.mmWaveDevices.rfConfig.rlFrameCfg_t.framePeriodicity_msec;
end
% -----------------------------------------------------------------------
% Description: This function reshape raw data for 2 lane LVDS capture
% Input: rawData - raw ADC data from binary file
% Output: frameData
% -----------------------------------------------------------------------
function [frameData] = dp_reshape2LaneLVDS(rawData)
% Convert 2 lane LVDS data to one matrix
rawData4 = reshape(rawData, [4, length(rawData)/4]);
rawDataI = reshape(rawData4(1:2,:), [], 1);
rawDataQ = reshape(rawData4(3:4,:), [], 1);
frameData = [rawDataI, rawDataQ];
end
% -----------------------------------------------------------------------
% Description: This function reshape raw data for 4 lane LVDS capture
% Input: rawData - raw ADC data from binary file
% Output: frameData
% -----------------------------------------------------------------------
function [frameData] = dp_reshape4LaneLVDS(rawData)
% Convert 4 lane LVDS data to one matrix
rawData8 = reshape(rawData, [8, length(rawData)/8]);
rawDataI = reshape(rawData8(1:4,:), [], 1);
rawDataQ = reshape(rawData8(5:8,:), [], 1);
frameData= [rawDataI, rawDataQ];
end
% ============================================================
% Processing Chain Functions
% ============================================================
% -----------------------------------------------------------------------
% Description: This function is part of processing Chain to perform
% range FFT operation.
% Input: frameData in complex(time domain)
% Output: radarCube
% -----------------------------------------------------------------------
function [radarCubeData] = processingChain_rangeFFT(rangeWinType)
global Params
global dataSet
global ui
NChirp = Params.NChirp;
NChan = Params.NChan;
NRangeBin = Params.numRangeBins;
% generate windowing
switch rangeWinType
case 1 %hann
win = hann(Params.NSample);
case 2 %blackman
win = blackman(Params.NSample);
otherwise
win = rectwin(Params.NSample);
end
radarCubeData = single(zeros(NChirp,NChan,NRangeBin));
for chirpIdx=1:Params.NChirp
for chIdx = 1: Params.NChan
frameData(1,:) = dataSet.rawFrameData(chirpIdx,chIdx,:);
frameData = fft(frameData .* win', NRangeBin);
radarCubeData(chirpIdx,chIdx,:) = frameData(1,:);
end
end
end
% ============================================================
% ============================================================
% User Interface Functions
% ============================================================
% ============================================================
% -----------------------------------------------------------------------
% Description: Callback function for linear plot checkbox
% -----------------------------------------------------------------------
function ui_checkbox_LinRangeProf_Callback(hObject, ~, ~)
global ui
if (get(hObject,'Value') == get(hObject,'Max'))
ui.rangePanel.linearPlot = 1;
else
ui.rangePanel.linearPlot = 0;
end
% Update plot
ui_RangeProfile_updatePlot();
end
% -----------------------------------------------------------------------
% Description: Callback function for key press for UI, if 'q' is
% pressed, exit from the script
% -----------------------------------------------------------------------
function myKeyPressFcn(~, event)
global EXIT_KEY_PRESSED
if lower(event.Key) == 'q'
EXIT_KEY_PRESSED = 1;
end
end
% -----------------------------------------------------------------------
% Description: UI initialization
% -----------------------------------------------------------------------
function [figHandle] = initDisplayPage(platformType)
global ui
%Setup the main figure
figHandle = figure(1);
clf(figHandle);
set(figHandle,'Name',strcat('Texas Instruments mmWave device - ', upper(platformType), ' Post Processing Tool'),'NumberTitle','off');
warning off MATLAB:HandleGraphics:ObsoletedProperty:JavaFrame
jframe=get(figHandle,'javaframe');
jIcon=javax.swing.ImageIcon('texas_instruments.gif');
jframe.setFigureIcon(jIcon);
set(figHandle, 'Color', [0.8 0.8 0.8]);
set(figHandle, 'KeyPressFcn', @myKeyPressFcn)
% Preset panel positions in percentage
timeDomainPanelPos = [0.0,0.4,0.5,0.6];
rangePlotPanelPos = [0.5,0.4,0.5,0.6];
% Adding panels
ui.hTimedomainPanel = uipanel('Title','Time Domain Plot', 'FontSize',12, 'Units','norm', 'Pos',timeDomainPanelPos);
ui.hRangePlotPanel = uipanel('Title','Range Profile Plot', 'FontSize',12, 'Units','norm', 'Pos',rangePlotPanelPos);
% Adding Control panels
ui.hControlPanel = uipanel('Title','Post Processing Control', 'FontSize',12, 'Units','norm', 'Pos',[0,0,.25,0.4]);
% Adding Configuration panels
ui.hChirpParamPanel = uipanel('Title','mmWave RF Configuration', 'FontSize',12, 'Units','norm', 'Pos',[0.25,0,.25,0.4]);
ui.hAdcParamPanel = uipanel('Title','mmWave ADC data Configuration', 'FontSize',12, 'Units','norm', 'Pos',[0.5,0,.25,0.4]);
ui.hRadarCubeParamPanel = uipanel('Title','mmWave Radar Cube Configuration', 'FontSize',12, 'Units','norm', 'Pos',[0.75,0,.25,0.4]);
% Adding Configuration Table
ui_displayConfParams();
% Setup Control panel
ui_setupControlPanel();
% Setup Plot panels
ui_setupTimeDomainPanel();
ui_setupRangeProfilePanel();
%ui_setupDopplerPlotPanel();
pause(0.00001);
set(jframe,'Maximized',1);
pause(0.00001);
end
% -----------------------------------------------------------------------
% Description: This function update current frame time domain and range profile plot
% with current chirp and channel index settings
% -----------------------------------------------------------------------
function ui_updateFramePlot()
global Params
global dataSet
global ui
% Plot Time domain and range profile
chirpFFTData = zeros(Params.NChan, Params.numRangeBins);
for ch= 1: Params.NChan
chirpFFTData(ch,:) = dataSet.radarCubeData(ui.rangePanel.chirpIdx, ch, :);
% Plot 1D range Profile
ui_plot1DRangeProfile(ch, ui.rangePanel.chirpIdx, ui.rangePanel.linearPlot);
% Plot time domain signal
ui_plotTimeDomainData(ui.timeDomainPanel.chanIdx, ui.timeDomainPanel.chirpIdx);
end
end
% -----------------------------------------------------------------------
% Description: Callback function for frame Edit window
% -----------------------------------------------------------------------
function ui_ControlPanel_frameEdit_Callback(~, ~)
global Params
global ui
if ((str2double(ui.ctrlPanel.frameNumber.String) <= Params.NFrame) && ...
(str2double(ui.ctrlPanel.frameNumber.String) >= 1))
% Keep the original setting
else
set(ui.ctrlPanel.frameNumber, 'String',num2str(ui.ctrlPanel.frameIdx));
end
ui.ctrlPanel.frameIdx = str2double(ui.ctrlPanel.frameNumber.String);
% Update data and Plot
dp_updateFrameData(ui.ctrlPanel.frameIdx);
ui_updateFramePlot();
end
% -----------------------------------------------------------------------
% Description: Function to setup control panel
% -----------------------------------------------------------------------
function [] = ui_setupControlPanel()
global Params
global ui
% Default frame index
ui.ctrlPanel.frameIdx = 1;
% Create frameSliderText
uiCtrlPosition = [0.05 0.9 .35 .05];
uicontrol(ui.hControlPanel, 'Style', 'text', 'String', ['Frame Index(1-' num2str(Params.NFrame) ')'],...
'FontSize', 9,...
'FontWeight','bold',...
'Units','normalized',...
'Position', uiCtrlPosition);
uiCtrlPosition = [0.4 0.9 .15 .05];
ui.ctrlPanel.frameNumber = uicontrol(ui.hControlPanel, 'Style', 'edit', 'Value', 1,...
'Units','normalized',...
'Position', uiCtrlPosition,...
'Max', Params.NFrame,...
'Min', 1,...
'Callback', @ui_ControlPanel_frameEdit_Callback);
set(ui.ctrlPanel.frameNumber, 'String',num2str(ui.ctrlPanel.frameIdx));
% Adding Windowing radio button
uiCtrlPosition = [.05 0.5 .4 .3];
ui.ctrlPanel.windowSel = uibuttongroup(ui.hControlPanel,'Visible','on',...
'Title', 'Range Windowing',...
'FontSize', 9,...
'Position',uiCtrlPosition,...
'SelectionChangedFcn', @ui_radioButton_winType_Callback);
uiCtrlPosition = [.05 0.1 0.9 .25];
uicontrol(ui.ctrlPanel.windowSel, 'Style', 'radioButton', ...
'String','Rect',...
'FontSize', 9,...
'FontWeight','bold',...
'Units','normalized',...
'Position', uiCtrlPosition,...
'HandleVisibility', 'off');
uiCtrlPosition = [.05 0.7 0.9 .25];
uicontrol(ui.ctrlPanel.windowSel, 'Style', 'radioButton', 'String', 'Hanning',...
'FontSize', 9,...
'FontWeight','bold',...
'Units','normalized',...
'Position', uiCtrlPosition,...
'HandleVisibility', 'off');
uiCtrlPosition = [.05 0.4 0.9 .25];
uicontrol(ui.ctrlPanel.windowSel, 'Style', 'radioButton', ...
'String','Blackman',...
'FontSize', 9,...
'FontWeight','bold',...
'Units','normalized',...
'Position', uiCtrlPosition,...
'HandleVisibility', 'off');
ui.ctrlPanel.rangeWinType = 0;
end
function ui_radioButton_winType_Callback(~,~)
global ui
global Params
switch ui.ctrlPanel.windowSel.SelectedObject.String
case 'Hanning'
Params.rangeWinType = 1;
case 'Blackman'
Params.rangeWinType = 2;
case 'Rect'
Params.rangeWinType = 0;
otherwise
Params.rangeWinType = 0;
end
% Update plot
dp_updateFrameData(ui.ctrlPanel.frameIdx);
ui_RangeProfile_updatePlot();
end
% -----------------------------------------------------------------------
% Description: Setup Time domain plot panel
% -----------------------------------------------------------------------
function [] = ui_setupTimeDomainPanel()
global Params
global ui
% Create UIAxes
ui.timeDomainPanel.hTabGroup = uitabgroup(ui.hTimedomainPanel, 'Position', [0.1 0.20 0.8 0.8]);
for chan = 1: Params.NChan
ui.tsPanel(chan).htab = uitab(ui.timeDomainPanel.hTabGroup, 'Title', ['Chan' num2str(chan)]);
ui.tsPanel(chan).hax = axes('Parent', ui.tsPanel(chan).htab );
axis(ui.tsPanel(chan).hax, [1 Params.NSample -50000 50000]);
title(ui.tsPanel(chan).hax , 'Time Domain Plot')
set(ui.tsPanel(chan).hax ,'Color',[0 0 0.5]);
ui.tsPanel(chan).hplot = plot(ui.tsPanel(chan).hax , 0,0,'g.', 'Marker', '.','MarkerSize',5);
ui.tsPanel(chan).hplot = plot(ui.tsPanel(chan).hax,...
(1:Params.NSample),...
zeros(length((1:Params.NSample)),2),...
'-');
hline = findobj(ui.tsPanel(chan).hplot, 'type', 'line');
set(hline(1),'LineStyle','-', 'color',[0 0 1]);
set(hline(2),'LineStyle',':', 'color',[1 0 0]);
hold on;
xlabel('Sample index');
ylabel('ADC time domain output');
title('Time Domain Output');
grid on;
end
ui.timeDomainPanel.chanIdx = 1;
ui.timeDomainPanel.hTabGroup.SelectedTab = ui.tsPanel(1).htab;
set(ui.timeDomainPanel.hTabGroup, 'SelectionChangedFcn', @ui_TimeDoman_tabGroup_Callback);
% Create ChirpSlider
uiCtrlPosition = [0.1 0.1 .1 .04];
uicontrol(ui.hTimedomainPanel, 'Style', 'text', 'String', 'Chirp Index',...
'FontSize', 9,...
'FontWeight','bold',...
'Units','normalized',...
'Position', uiCtrlPosition);
uiCtrlPosition = [0.2 0.1 .05 .04];
ui.timeDomainPanel.ChirpNumber = uicontrol(ui.hTimedomainPanel, 'Style', 'edit', 'Value', 1,...
'Units','normalized',...
'Position', uiCtrlPosition,...
'Max', Params.NChirp,...
'Min', 1,...
'Callback', @ui_Timedomain_chirpEdit_Callback);
uiCtrlPosition = [0.25 0.1 .15 .04];
ui.timeDomainPanel.ChirpSlider = uicontrol(ui.hTimedomainPanel, 'Style', 'slider', 'String', 'Chirp Index',...
'Units','normalized',...
'Position', uiCtrlPosition,...
'Value', 1,...
'Callback', @ui_Timedomain_chirpIdx_Callback);
ui.timeDomainPanel.ChirpSlider.Max = 1;
ui.timeDomainPanel.ChirpSlider.Value = 0;
ui.timeDomainPanel.chirpIdx = 1;
set(ui.timeDomainPanel.ChirpNumber, 'String',num2str(ui.timeDomainPanel.chirpIdx));
end
% -----------------------------------------------------------------------
% Description: Callback function to set time domain plot channel index from
% channels tab group
% -----------------------------------------------------------------------
function ui_TimeDoman_tabGroup_Callback(~, ~)
global ui
% Set channel index from active tab title
switch ui.timeDomainPanel.hTabGroup.SelectedTab.Title
case 'Chan1'
ui.timeDomainPanel.chanIdx = 1;
case 'Chan2'
ui.timeDomainPanel.chanIdx = 2;
case 'Chan3'
ui.timeDomainPanel.chanIdx = 3;
case 'Chan4'
ui.timeDomainPanel.chanIdx = 4;
otherwise
end
% Upate time domain plot with updated channel index
ui_plotTimeDomainData(ui.timeDomainPanel.chanIdx, ui.timeDomainPanel.chirpIdx);
end
% -----------------------------------------------------------------------
% Description: Callback function to set time domain plot chirp index from
% chirp index edit window
% -----------------------------------------------------------------------
function ui_Timedomain_chirpEdit_Callback(~, ~)
global Params
global ui
if ((str2double(ui.timeDomainPanel.ChirpNumber.String) <= Params.NChirp) && ...
(str2double(ui.timeDomainPanel.ChirpNumber.String) >= 1))
else
set(ui.timeDomainPanel.ChirpNumber, 'String',num2str(ui.timeDomainPanel.chirpIdx));
end
% Update chirp index
ui.timeDomainPanel.chirpIdx = str2double(ui.timeDomainPanel.ChirpNumber.String);
set(ui.timeDomainPanel.ChirpSlider, 'Value', ui.timeDomainPanel.chirpIdx/Params.NChirp);
% Upate time domain plot
ui_plotTimeDomainData(ui.timeDomainPanel.chanIdx, ui.timeDomainPanel.chirpIdx);
end
% -----------------------------------------------------------------------
% Description: Callback function to set time domain plot chirp index from
% chirp index slider
% -----------------------------------------------------------------------
function ui_Timedomain_chirpIdx_Callback(~, ~)
global Params
global ui
ui.timeDomainPanel.chirpIdx = round(ui.timeDomainPanel.ChirpSlider.Value * Params.NChirp, 0);
if ui.timeDomainPanel.chirpIdx == 0
ui.timeDomainPanel.chirpIdx = 1;
end
% Update chirp index
set(ui.timeDomainPanel.ChirpNumber, 'String',num2str(ui.timeDomainPanel.chirpIdx));
% Update time domain plot
ui_plotTimeDomainData(ui.timeDomainPanel.chanIdx, ui.timeDomainPanel.chirpIdx);
end
% -----------------------------------------------------------------------
% Description: Setup range profile Panel
% -----------------------------------------------------------------------
function [] = ui_setupRangeProfilePanel()
global Params
global ui
% Create UIAxes
ui.rangePanel.hTabGroup = uitabgroup(ui.hRangePlotPanel, 'Position', [0.1 0.20 0.8 0.8]);
for chan = 1:Params.NChan
ui.rpPanel(chan).htab = uitab(ui.rangePanel.hTabGroup, 'Title', ['Chan' num2str(chan)]);
ui.rpPanel(chan).hax = axes('Parent', ui.rpPanel(chan).htab );
axis(ui.rpPanel(chan).hax, [0 Params.numRangeBins * Params.RFParams.rangeResolutionsInMeters 0 Params.numRangeBins]);
set(ui.rpPanel(chan).hax ,'Color',[0 0 0.5]);
%ui.rpPanel(chan).hplot = plot(ui.rpPanel(chan).hax , 0,0,'g.');
rangeBin = linspace(0, Params.numRangeBins * Params.RFParams.rangeResolutionsInMeters, Params.numRangeBins);
ydata = zeros(Params.numRangeBins, 1).';
ui.rpPanel(chan).hplot = plot(ui.rpPanel(chan).hax,...
rangeBin,...
ydata,...
'-');
hline = findobj(ui.rpPanel(chan).hplot, 'type', 'line');
set(hline(1),'LineStyle','-', 'color',[0 0 1]);
hold on;
xlabel('Range (m)');
ylabel('Range FFT output (dB)');
title('Range Profile');
grid on;
end
ui.rangePanel.chanIdx = 1;
ui.rangePanel.hTabGroup.SelectedTab = ui.rpPanel(1).htab;
set(ui.rangePanel.hTabGroup, 'SelectionChangedFcn', @ui_RangeProfile_tabGroup_Callback);
% Adding Linear control radio button
uiCtrlPosition = [.5 0.1 .15 .03];
uicontrol(ui.hRangePlotPanel, 'Style', 'checkbox', 'String', 'Linear scale',...
'FontSize', 9,...
'FontWeight','bold',...
'Units','normalized',...
'Position', uiCtrlPosition,...
'Value', 0,...
'Callback', @ui_checkbox_LinRangeProf_Callback);
ui.rangePanel.linearPlot = 0;
% Create ChirpSlider
uiCtrlPosition = [0.1 0.1 .1 .04];
uicontrol(ui.hRangePlotPanel, 'Style', 'text', 'String', 'Chirp Index',...
'FontSize', 9,...
'FontWeight','bold',...
'Units','normalized',...
'Position', uiCtrlPosition);
uiCtrlPosition = [0.2 0.1 .05 .04];
ui.rangePanel.ChirpNumber = uicontrol(ui.hRangePlotPanel, 'Style', 'edit', 'Value', 1,...
'Units','normalized',...
'Position', uiCtrlPosition,...
'Max', Params.NChirp,...
'Min', 1,...
'Callback', @ui_RangeProfile_chirpEdit_Callback);
uiCtrlPosition = [0.25 0.1 .15 .04];
ui.rangePanel.ChirpSlider = uicontrol(ui.hRangePlotPanel, 'Style', 'slider', 'String', 'Chirp Index',...
'Units','normalized',...
'Position', uiCtrlPosition,...
'Value', 1,...
'Callback', @ui_RangeProfile_chirpIdx_Callback);
ui.rangePanel.ChirpSlider.Max = 1;
ui.rangePanel.ChirpSlider.Value = 0;
ui.rangePanel.chirpIdx = 1;
set(ui.rangePanel.ChirpNumber, 'String',num2str(ui.rangePanel.chirpIdx));
end
% -----------------------------------------------------------------------
% Description: Callback function to update chan index from range
% profile tab group
% -----------------------------------------------------------------------
function ui_RangeProfile_chirpEdit_Callback(~, ~)
global Params
global ui
if ((str2double(ui.rangePanel.ChirpNumber.String) <= Params.NChirp) && ...
(str2double(ui.rangePanel.ChirpNumber.String) >= 1))
else
set(ui.rangePanel.ChirpNumber, 'String',num2str(ui.rangePanel.chirpIdx));
end
ui.rangePanel.chirpIdx = str2double(ui.rangePanel.ChirpNumber.String);
set(ui.rangePanel.ChirpSlider, 'Value', ui.rangePanel.chirpIdx/Params.NChirp);
ui_RangeProfile_updatePlot();
end
% -----------------------------------------------------------------------
% Description: callback function to update chan index from debug GUI
% -----------------------------------------------------------------------
function ui_RangeProfile_tabGroup_Callback(~, ~)
global ui
switch ui.rangePanel.hTabGroup.SelectedTab.Title
case 'Chan1'
ui.rangePanel.chanIdx = 1;
case 'Chan2'
ui.rangePanel.chanIdx = 2;
case 'Chan3'
ui.rangePanel.chanIdx = 3;
case 'Chan4'
ui.rangePanel.chanIdx = 4;
otherwise
return
end
ui_RangeProfile_updatePlot();
end
% -----------------------------------------------------------------------
% Description: Callback function to update chirp index from debug UI chirp
% text box
% -----------------------------------------------------------------------
function ui_RangeProfile_chirpIdx_Callback(~, ~)
global Params
global ui
ui.rangePanel.chirpIdx = round(ui.rangePanel.ChirpSlider.Value * Params.NChirp, 0);
if ui.rangePanel.chirpIdx == 0
ui.rangePanel.chirpIdx = 1;
end
% Update chirp index from UI
set(ui.rangePanel.ChirpNumber, 'String',num2str(ui.rangePanel.chirpIdx));
% Update range profile plot
ui_RangeProfile_updatePlot();
end
% -----------------------------------------------------------------------
% Description: Update range Profile plot with updated chanIdx and chirpIdx
% from debug GUI
% -----------------------------------------------------------------------
function ui_RangeProfile_updatePlot()
global ui
ui_plot1DRangeProfile(ui.rangePanel.chanIdx, ui.rangePanel.chirpIdx, ui.rangePanel.linearPlot);
end
% ------------------------------------------------------------------------
% Description: Plot time domain data Imginary and real data.
% Two plots for each channel, one for Imginary data, one for
% real data.
% Input: chanIdx - RX channel index
% chirpIdx - one chirp of range profile data for all
% RX channels.
% ------------------------------------------------------------------------
function [] = ui_plotTimeDomainData(chanIdx, chirpIdx)
global ui
global dataSet
currChDataQ = real(dataSet.rawFrameData(chirpIdx,chanIdx,:));
currChDataI = imag(dataSet.rawFrameData(chirpIdx,chanIdx,:));
% Time domain data plot
if(ishandle(ui.tsPanel(chanIdx).hplot))
set(ui.tsPanel(chanIdx).hplot, {'Ydata'}, num2cell([currChDataI(:) currChDataQ(:)].', 2));
end
end
% -----------------------------------------------------------------------
% Description: Plot range FFT results using given one chirp of range profile data.
%
% Input: chanIdx - RX channel index
% chirpIdx - one chirp of range profile data for all
% RX channels.
% linearMode - Two options of the plot: linear and log
% -----------------------------------------------------------------------
function [] = ui_plot1DRangeProfile(chanIdx, chirpIdx, linearMode)
global ui
global dataSet
rangeProfileData = dataSet.radarCubeData(chirpIdx, chanIdx , :);
if (linearMode == 1)
channelData = abs(rangeProfileData(:));
else
chFFT = rangeProfileData(:);
channelData = 20 * log10 (abs(chFFT));
end
% Plot channel range plot data
if(ishandle(ui.rpPanel(chanIdx).hplot))
set(ui.rpPanel(chanIdx).hplot, {'Ydata'}, {channelData});
end
end
% -----------------------------------------------------------------------
% Description: Display configuration parameters on display panel
% -----------------------------------------------------------------------
function ui_displayConfParams()
global Params
global ui
radarCubeParams = Params.radarCubeParams;
adcDataParams =Params.adcDataParams;
RFParams = Params.RFParams;
dat = {'Start Frequency (Ghz)', RFParams.startFreq;...
'Slope (MHz/us)', RFParams.freqSlope;...
'Samples per chirp', adcDataParams.numAdcSamples;...
'Chirps per frame', adcDataParams.numChirpsPerFrame;...
'Sampling rate (Msps)', RFParams.sampleRate;...
'Bandwidth (GHz)', RFParams.bandwidth;...
'Range resolution (m)', RFParams.rangeResolutionsInMeters;...
'Velocity resolution (m/s)', RFParams.dopplerResolutionMps;...
'Number of Tx (MIMO)', radarCubeParams.numTxChan;...
'Frame periodicity (msec)', RFParams.framePeriodicity;...
};
columnname = {' Parameter (Units) ', ' Value '};
columnformat = {'char', 'numeric'};
uitable(ui.hChirpParamPanel,'Units','normalized','Position',...
[0.1 0.05 0.8 0.9], 'Data', dat,...
'ColumnName', columnname,...
'ColumnFormat', columnformat,...
'ColumnWidth', 'auto',...
'RowName',[]);
% Convert dataFmt to string
if((adcDataParams.dataFmt == 0) || ...
(adcDataParams.dataFmt == 3))
dataFmtString = 'Real';
else
dataFmtString = 'Complex';
end
% Convert iqswap mode to string
if(adcDataParams.iqSwap == 0)
iqSwapString = 'IQ';
else
iqSwapString = 'QI';
end
% Convert interleave mode to string
if(adcDataParams.chanInterleave == 0)
chanInterleaveString = 'Interleave';
else
chanInterleaveString = 'non-Interleave';
end
% Convert adcBits to string
if(adcDataParams.adcBits == 0)
adcBitsString = '12 bits';
elseif(adcDataParams.adcBits == 1)
adcBitsString = '14 bits';
elseif(adcDataParams.adcBits == 2)
adcBitsString = '16 bits';
else
error 'adcBits (%d) is not supported';
end
adcDataTbl = {'dataFmt', dataFmtString;...
'iqSwap', iqSwapString;...
'chanInterleave', chanInterleaveString;...
'numChirpsPerFrame', num2str(adcDataParams.numChirpsPerFrame);...
'adcBits', adcBitsString;...
'numRxChan', num2str(adcDataParams.numRxChan);...
'numAdcSamples', num2str(adcDataParams.numAdcSamples);
};
columnname = {' Parameter (Units) ', ' Value '};
columnformat = {'char', 'numeric'};
uitable(ui.hAdcParamPanel,'Units','normalized','Position',...
[0.1 0.05 0.8 0.9], 'Data', adcDataTbl,...
'ColumnName', columnname,...
'ColumnFormat', columnformat,...
'ColumnWidth', 'auto',...
'RowName',[]);
if(radarCubeParams.iqSwap == 0)
iqSwapString = 'IQ';
else
iqSwapString = 'QI';
end
if(radarCubeParams.radarCubeFmt == 1)
radarFmtString = 'FMT1';
else
radarFmtString = 'UnKnown';
end
radarCubeTbl = {'iqSwap', iqSwapString;...
'numRxChan', num2str(radarCubeParams.numRxChan);...
'numTxChan', num2str(radarCubeParams.numTxChan);...
'numRangeBins', num2str(radarCubeParams.numRangeBins);...
'numDopplerChirps', num2str(radarCubeParams.numDopplerChirps);...
'radarCubeFmt', radarFmtString;...
};
columnname = {' Parameter (Units) ', ' Value '};
columnformat = {'char', 'numeric'};
uitable(ui.hRadarCubeParamPanel,'Units','normalized','Position',...
[0.1 0.05 0.8 0.9], 'Data', radarCubeTbl,...
'ColumnName', columnname,...
'ColumnFormat', columnformat,...
'ColumnWidth', 'auto',...
'RowName',[]);
end"
" Not enough input arguments.
Error in rawDataReader (line 163)
if(debugPlot) "
Second question:

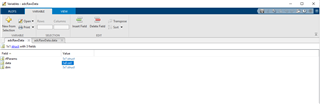

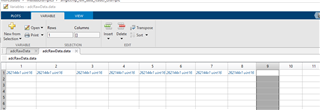

> I also got two .mat files rawdatafilename and rawcubedatafilename. But I don't know which one is my raw data because which I got different results as shown below.
Thank you
kind regards,
Fahad
