IWR6843ISK-ODS: Info on RF shield design

balaji s

Part Number: IWR6843ISK-ODS

Hi TI,

We are designing an RF Shield for a customized IWR6843-ODS Board and the Hardware measures are taken care as per the requirements mentioned in https://www.ti.com/lit/an/spracp3c/spracp3c.pdf?ts=1664182704738&ref_url=https%253A%252F%252Fwww.google.com%252F .

Can you provide us the details on the shield material, height and thickness that you would recommend ?

over 2 years ago

0 Sami Mardini over 2 years ago

TI__Expert 4150 points

Hi Balaji,

You can work with a shield vendor to help with the detail. I have seen a shield that was made of Brass with Nickel Plating. Thickness was about 0.3 mm. The height we about 4.5 mm. You need to be careful with the height to make sure it would not interfere with the FOV of the antennas. I recommend that you run HFSS simulation. I would also recommend adding thin RF absorber material inside the shield enclosure near the top side to help reduce internal wave scattering.

Regards,
Sami

0 balaji s over 2 years ago in reply to Sami Mardini

Prodigy 20 points

Hi Sami,

Thanks for your suggestions.

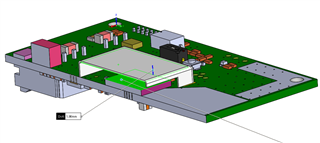

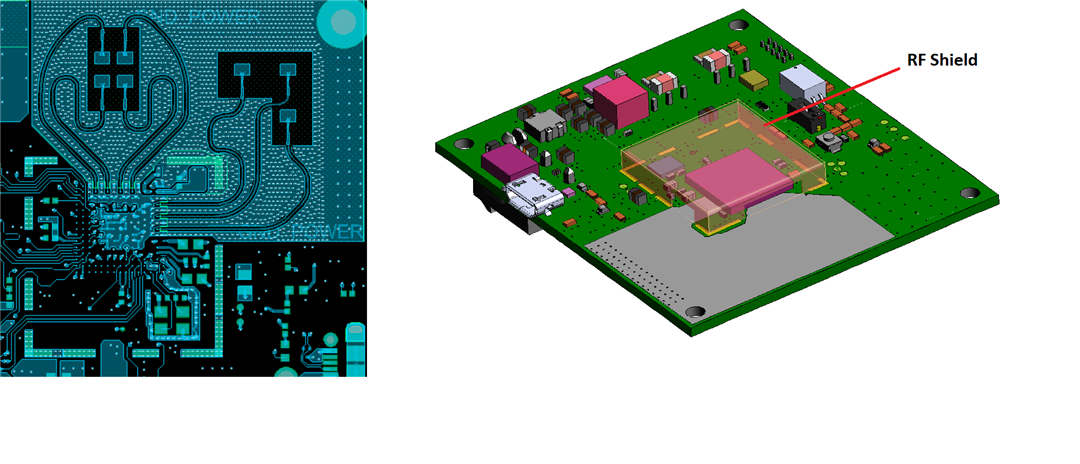

We have made the layout update for the shield placement and also attached the layout image and the 3D shield model.

Kindly take look of the shield placement and provide us with your feedback.

0 Sami Mardini over 2 years ago in reply to balaji s

TI__Expert 4150 points

Hi Balaji,

Visually it looks OK. I would also recommend adding the following high loss thin microwave absorber material inside the shield box. That material would help absorb radiated energy inside the RF shield box. You can place the material toward the inner ceiling of the shield.

https://www.laird.com/sites/default/files/2021-07/RFP-DS-GDS FR 12182020.pdf

Regards,

Sami

0 balaji s over 2 years ago in reply to Sami Mardini

Prodigy 20 points

Hi Sami,

Thanks for your quick response.

On the absorber part, what is the thickness of the material that you would recommend to use.

Shield Height : 3.5mm

Air Gap : 1.98 mm (Between Shield inner ceiling and SoC)

0 Sami Mardini over 2 years ago in reply to balaji s

TI__Expert 4150 points

Hi Balagi,

I will go with 0.5 mm thick absorber.

Regards,

Sami
