IWR6843AOPEVM: which 8 antennas are used in first caponBF(estimating the amzimuth angle)?and why inverse matrics is 4*4?

Gmsy Bryant

Part Number: IWR6843AOPEVM

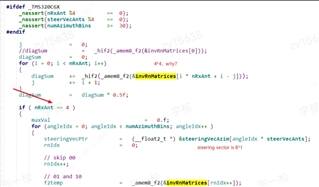

Hi,I want to know,the raHeatmap() funtion in 3D people counting demo(C:\TI\mmwave_industrial_toolbox_4_11_0\labs\common\src\dpu\capon3d\modules\DoA\CaponBF2D\src),the docx file told me that 8 Antennas are used in the Wall-mount mode ,the dimension of steering vector is 8*1,but the inverse matrics is 4*4 and the nRxAnt is 4,isn't it contradictory?Ant I want to know which 8 antennas are used in the first CaponBF i.e. estimating the amzimuth angle in 6843AOP?

thank you very much!

over 2 years ago

0 Nathan Block over 2 years ago

TI__Mastermind 37805 points

Hi,

On line 212 of the same RADARDEMO_aoaEst2DCaponBF_heatmapEst.c file that you're referring to there is a case for the 8 antennas on the ISK. 4 Antennas is for the ODS or AoP antenna patterns.

Best,

Nate

0 Gmsy Bryant over 2 years ago in reply to Nathan Block

Expert 1650 points

Then,I want to know why 4 antennas for AOP,In my opinion ,8 or 12 antennas are more better for CaponBF?

Best regards

0 Nathan Block over 2 years ago in reply to Gmsy Bryant

TI__Mastermind 37805 points

AoP is better for ceiling mount where you need to distinguish between targets in both elevation and azimuth angles. ISK is better at wall-mount when you're really only distinguishing between targets in the azimuth direction.

Best,

Nate
