AWR6843AOPEVM: Meaning of the RADARDEMO_aoaEst2DCaponBF_dopperEstInput() function

Shihyu Hung

Part Number: AWR6843AOPEVM

Hi, TI team,

What is the actual physical meaning of the function: "RADARDEMO_aoaEst2DCaponBF_dopperEstInput()"?

In "3D_people_counting_demo_implementation_guide" document, It claims to apply the Capon beamforming before the Doppler FFT, but I just can't get it clear enough.

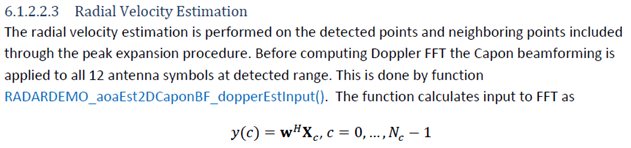

Here is the formula shown in page 46 in the document:

Thanks

Shihyu.

over 2 years ago

0 Nathan Block over 2 years ago

TI__Mastermind 37805 points

Hi Shihyu,

I think this function is named RADARDEMO_aoaEst2DCaponBF_dopperEstInput because it estimates the input to the doppler FFT. Is that what you're asking? Applying the capon beamforming is just this vector matrix product as shown in the equation.

Best,

Nate

0 Shihyu Hung over 2 years ago in reply to Nathan Block

Intellectual 260 points

Hi Nate,

And why the signal Xc should be multiplied by transposed matrix w?

Shihyu.

+1 Nathan Block over 2 years ago in reply to Shihyu Hung

TI__Mastermind 37805 points

The w vectors are the steering vectors generated from the Capon beamforming. The X is the signal. This is to extract angle information from the signal to ensure you're looking at the same angle over multiple chirps to do velocity estimation.

Best,

Nate

0 Shihyu Hung over 2 years ago in reply to Nathan Block

Intellectual 260 points

OK~ I get it!

Nate, thanks a lot!
