AWR2243: monitor function temperature measured

Bryan Sun

Part Number: AWR2243

Hi Experts:

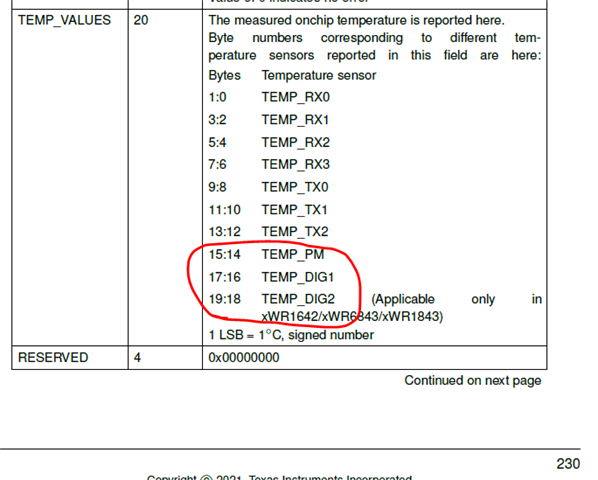

As AWR2243 ICD document located C:\ti\mmwave_mcuplus_sdk_04_03_00_01\mmwave_dfp_02_02_04_00\docs\mmWave-Radar-Interface-Control.pdf, AWR_MONITORING_TEMPERATURE_REPORT_AE_SB will include TEMP_PM, TEMP_DIG1, TEMP_DIG2, what block for these measured temperature report.

Thanks

over 2 years ago

0 Pradipta Bandyopadhyay over 2 years ago

TI__Mastermind 32845 points

Hi,

Can you clarify your question or kindly explain the query in more detail. I am not clearly understanding your issue currently.

Thanks,

Pradipta.

0 Bryan Sun over 2 years ago in reply to Pradipta Bandyopadhyay

TI__Intellectual 2405 points

Hi Pradipta

Sorry for not so clear. I want's know these temperature values correspond to the temperature of which modules. Especially TEMP_PM, TEMP_DIG1, TEMP_DIG2.

Thanks

0 Pradipta Bandyopadhyay over 2 years ago

TI__Mastermind 32845 points

Hi Bryan,

As stated in the documentation TEMP_DIG2 is not applicable for 2243 device. The TEMP_PM is the power management system on the device, and this temperature will correspond to this section. The TEMP_DIG1 will correspond to the temperature near the digital section on the device.

Thanks,

Pradipta.

0 Bryan Sun over 2 years ago in reply to Pradipta Bandyopadhyay

TI__Intellectual 2405 points

Thanks
