AWR1843BOOST: Relationship between AWR1843 and SOP

Hello ,

There are only two main relevent SOP modes for the user.

SOP5 -> SOP[2:0] = 101 : This mode is used to put the Awr1843 device into flashing mode. That is you use this mode to write your application binary to the serial flash connected to the AWR1843 device. This writing is done using the UART interface.

SOP4 -> SP{2:0] = 001 : This mode is the functional mode, where the Awr1843 will load the flashed application from the serial flash and execute it.

regards,

vivek

Thank you for your reply.

Thank you for your reply regarding the signaling.
I have two questions below.

Q1.How does it work in other modes?

Q2.How is each voltage signal exchanged in the mode I posted?
For example, from what pin is 3 V output, etc.

Hello Hiroyuki San,

Others modes are only for debug or internal development.

Q2.How is each voltage signal exchanged in the mode I posted?
For example, from what pin is 3 V output, etc.

I am not sure I understand the question. If you asking about the supply pin for the IOs, there are VIO pins that on the chip. These are the pins that provide supply to all the interface IOs, including SOP lines.

regards,

vivek

Thank you for your reply
It seems that it is necessary to measure the signal voltage again.

For the time being, the power supply of AWR1843 on Custom follows the datasheet except that L13 is dropped to GND.

https://www.ti.com/lit/ds/symlink/awr1843.pdf?ts=1674516131152&ref_url=https%253A%252F%252Fwww.google.com%252F

(It is listed in Table 7.2 of the following document.)

Hi, thanks for your reply.
I understand your suggestion.

Where was the remark that it should be open?

Hi, I'm very sorry that I missed the datasheet.

By the way, in the case of AWR1843Boost, I think that it is grounded, but is that a problem?
The reason for my judgment is that the connector between the IC supplied to the pin for Vpp on the first page is DNP.
(Judging from page 9 of the attachment)

PROC051D(001)_Sch.PDF

By the way, the data sheet that Abata posted was not written to me.

Please tell us which version of the datasheet you read.

It was not listed in the datasheet on the page you specified.
Is it really the AWR1843 datasheet?

By the way, is there anything that shows that Vpp is floating with AWR1843Boost?

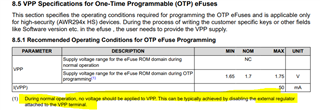

Am sorry, the VPP requirements we added in our latest AWR2944 device datasheet, but are not included in our older device versions like AWR1843. But the same requirement is valid for all our radar devices.

Regards,
Vivek

Hi, thanks for your reply.

Thank you for your valuable opinion.
I just can't see any evidence of floating the AWR1843Boost Vpp pin.
I would like you to tell me about that too.
