IWR1443: IWR1443: Alternative stackup without changing antenna design from IWR1443BOOST.

Oscar Gomez Fuente

Expert 2066 points

Part Number: IWR1443

Hi everyone,

Can I change this stack up slightly different from the official one without changing the design of the antennas?

Official stackup:

Alternative:

Best regards,

Óscar.

over 2 years ago

0 CHETHAN KUMAR Y.B. over 2 years ago

TI__Mastermind 25835 points

Hello,

Antenna material should be low pro material. As long as RF material is same same antenna design could be reused.

Thanks and regards,

CHETHAN KUMAR Y.B.

0 Oscar Gomez Fuente over 2 years ago in reply to CHETHAN KUMAR Y.B.

Expert 2066 points

Hi Chetham,

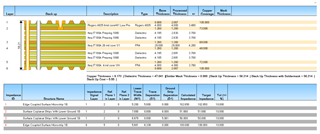

I was reviewing the stack-up and I found this document: PROC010B_Stack_Up.pdf from this link: IWR1443BOOST Layout and Design Files

The stack-up is different:

The material is FR4 370HR vs IT180A.

What is the right material to use?

Best regards,

Óscar.

+1 CHETHAN KUMAR Y.B. over 2 years ago in reply to Oscar Gomez Fuente

TI__Mastermind 25835 points

Hello Óscar,

Top layer (Where Antenna is etched) material need to be RO4835LOPRO material, Inner layer material could either FR4 370HR or IT180A material. Inner layer material will not affect the antenna design. Reference design has been developed with both the stackps.

Thanks and regards,

CHETHAN KUMAR Y.B.
