IWR6843ISK-ODS: What is the minimum SNR for radar detection targets?

Liang Kun

Part Number: IWR6843ISK-ODS

In mmwave_industrial_toolbox_4_10_0/labs/People_Counting/docs/3D_people_counting_detection_layer_tuning_guide.pdf, we find that the detection range of the radar to the target is affected by the SNR detection range. What is the minimum SNR for radar detection targets? What is the maximum SNR that a radar signal can generate?

over 2 years ago

0 Pedrhom Nafisi over 2 years ago

TI__Mastermind 22577 points

Hello,

Due to SNR being a ratio, there is not exactly a max or minimum SNR ratio as your signal and noise values are going to change depending on chirp configuration. If you are looking into details in terms of detection of various object sizes, we have a document on RCS (radar cross-section) and detection performance across different kinds of objects.

https://www.ti.com/lit/an/swra593a/swra593a.pdf

You can use the mmWaveSensing estimator to get stats on your chirp configuration's performance and then do data collection with various CFAR thresholds to get SNR detection that meets your application.

Best Regards,

Pedrhom

0 Liang Kun over 2 years ago in reply to Pedrhom Nafisi

Prodigy 211 points

Hello,

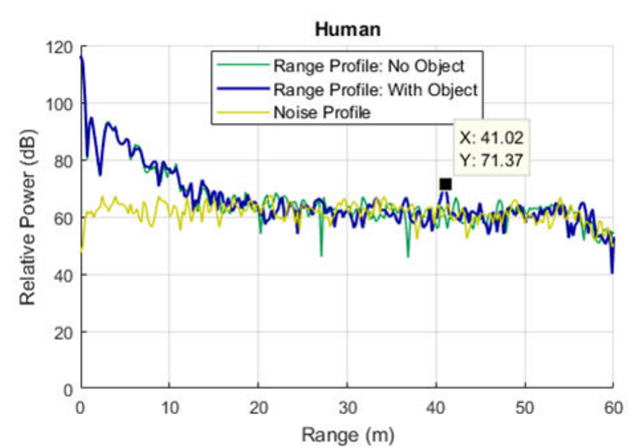

In https://www.ti.com/lit/an/swra593a/swra593a.pdf, I find that we can use mmWave demo visualizer to get the Range Profile and Noise profile as shown in figure below. I want know if we can get SNR using the Range profile and Noise profile value. And which fomula can we use?

Regards,

Liang

0 Pedrhom Nafisi over 2 years ago in reply to Liang Kun

TI__Mastermind 22577 points

Hello Liang,

Lets go back a little bit.

https://www.ti.com/lit/an/swra553a/swra553a.pdf

This document on chirp parameters will be very helpful to you, and I would pay most attention to page three which goes over SNR and max range.

The mmWave Sensor calculates the SNR for you for every point, the mmWave Demo Visualizer just doesn't visualize it. If you want to see everything the mmWave Sensor can output, check out the UART Data Output document in the Radar Toolbox on the TI Resource Explorer. SNR is in "Side Info for Detected Points"

https://dev.ti.com/tirex/explore/node?a=1AslXXD__1.00.00.26&node=A__ADnbI7zK9bSRgZqeAxprvQ__radar_toolbox__1AslXXD__1.00.00.26

Within the downloadable Radar Toolbox I would also suggest trying the Industrial Visualizer under tools to get an idea of the point cloud and how each point has its own SNR value.

Best Regards,

Pedrhom
