AWRL6432BOOST: AWRL6432BOOST Tx Beampattern

Junghwan Son

Part Number: AWRL6432BOOST

Hi, TI

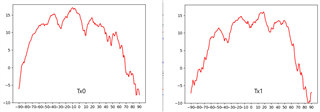

When measuring the Tx beam pattern of the AWRL6432Boost at 60GHz (CW), there is a pattern in which a null points in the H-Plane (az-plane) as shown below.

Are the measurement results below similar to those measured by TI? Also, is it possible to share the result of measuring the Tx beam pattern?

Thanks

Son Junghwan

over 2 years ago

0 Kevin Ortiz over 2 years ago

TI__Expert 3525 points

Hi Son Junghwan,

Sincere apologies for the delay. We are looking into this and will update within the next 48 hours.

Best Regards,
Kevin

0 zigang Yang over 2 years ago

TI__Mastermind 40335 points

HI, there:

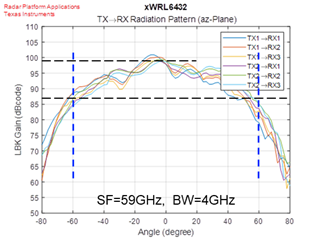

Here attached the one plots. All the TX-RX antenna pairs are included. 4G chirps are used for this measurement.

Best,

Zigang

0 Junghwan Son over 2 years ago

Prodigy 20 points

Hi, zigang Yang


I think that the plot you attched is the result of combining the effects of both Tx and Rx antenna, as we have already shown in the TI document.

We want to know that the reasonw why null points occur in H-pol and we believe that this comes from the chip.

I would like TI to confirm that the degree of null we measured is correct from only Tx antenna side.

Thanks
Son Junghwan

0 zigang Yang over 2 years ago in reply to Junghwan Son

TI__Mastermind 40335 points

Hi, there:

Sorry for the delay, I was off for a while due to family reasons. I will contact internally to get this information.

Thank you for your patience.

Best,

Zigang

0 zigang Yang over 2 years ago in reply to zigang Yang

TI__Mastermind 40335 points

HI,

Sorry, I just got informed that we do not testing the TX radiation pattern by itself, other than AOP board. But when you looked at the our loopback results, you can tell the difference between RXs are small. The nulls majorly comes from TX channel, and there is a clear correlation between your TX results with our loopback results. The null location is very similar.
