HDC3021: 3D file dimension is different with with 2D datasheet description

Feng bin Su

Part Number: HDC3021

Hi team,

We are designing in the HDC3021 in their design. They found that the 3D file dimension as attached is different with with 2D datasheet description.

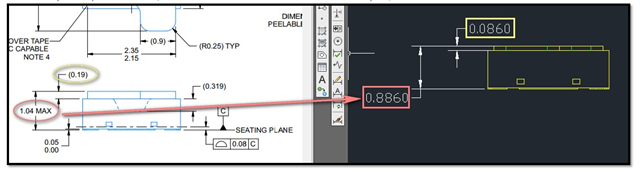

Please help to clarify below difference, the 3D file dimension is different with 2D datasheet description. Otherwise, we will not sure how to build the socket into customer's library.

Thanks.

ul_PHDC3021DEHT.zip

Regards,

Ben

over 2 years ago

0 Josh Wyatt over 2 years ago

TI__Guru* 91206 points

Dear Ben -

Please see page 38 of DS.

https://www.ti.com/lit/ds/symlink/hdc3021.pdf

0 Feng bin Su over 2 years ago in reply to Josh Wyatt

TI__Expert 8760 points

Hi Josh,

For HDC3021DEHR, would it package type is DEH? We only can see DEH package at ti.com.

Regards,

Ben

0 Josh Wyatt over 2 years ago in reply to Feng bin Su

TI__Guru* 91206 points

Ben -

I see your point - please allow a day or so to get some clarification from packaging on this.

0 Feng bin Su over 2 years ago in reply to Josh Wyatt

TI__Expert 8760 points

Josh,

Thanks. Let me know if there is any update. Thanks.

Regards,

Ben

0 Josh Wyatt over 2 years ago in reply to Feng bin Su

TI__Guru* 91206 points

Feng -

Sorry for the delay - we had a holiday here in US yesterday.

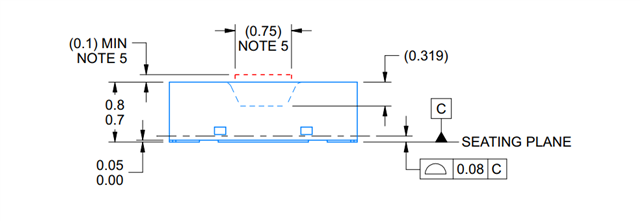

Here is a preview of the updated drawing for the DEH package type.
