IWR6843AOP: Requirement on component placement around IWR6843AOP

Chris Meng

Part Number: IWR6843AOP

Hi,

My customer is working on IWR6843AOP design. They want to know if there is any requirement on component placement around IWR6843AOP. What's the nearest distance which can place the component around IWR6843AOP? Is there any height requirement for the component?

I already informed customer about below errata.

Thanks,

Chris

over 2 years ago

0 Ankit Mohanty over 2 years ago

TI__Genius 9570 points

Hi Chris,

The minimum horizontal clearance is 1mil and minimum vertical clearance is 10 mil. Kindly refer to design rules in Altium sources files for IWR6843AOP EVM design for component clearance.

Regards

Ankit

0 Chris Meng over 2 years ago in reply to Ankit Mohanty

TI__Mastermind 37666 points

Ankit,

I may not describe the question clearly. What customer wants to know is the layout guideline/requirement for placing components, such as capacities, resistors, other IC, around AOP device.

Would you pls check again?

Thanks,

Chris

0 Ankit Mohanty over 2 years ago in reply to Chris Meng

TI__Genius 9570 points

Hi Chris,

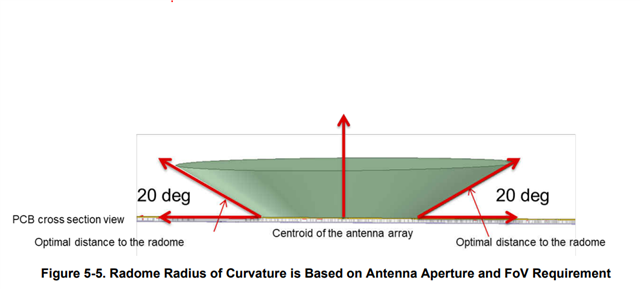

The components must not be placed at a height above the antenna. Also, it must be taken care that the antenna radiations are not being affected by the components placed i.e the component size must not interfere with the field of view of the antenna, I am attaching a reference picture for antenna FOV wrt to radome design but the understanding will be the same in this case.

For other requirements regarding the component placement around the IWR6843AOP you can refer to the IWR6843AOP EVM design guidelines.

https://www.ti.com/lit/zip/swrr166

https://www.ti.com/lit/zip/sprr418

Regards

Ankit
