AWR1843: AWR1843 JTAC connection error in CCS tool

Ben

Part Number: AWR1843

Hi,

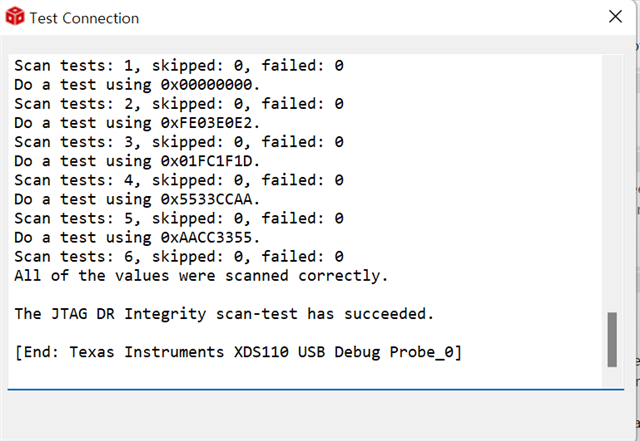

I got the succeeded JTAG connection message at the test connection in CCS.

But, debug mode, doesn't connector.

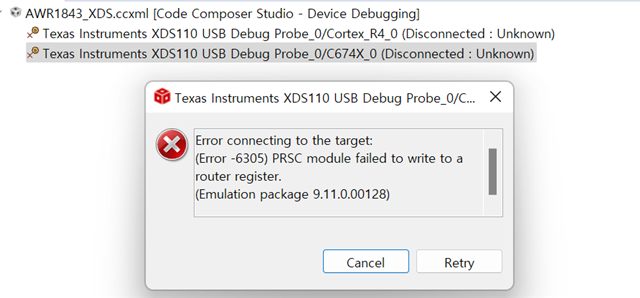

Error -6305

Which is means PRSC module failed? What am i missing point for connection to debug mode?

- SOP : 011 / 101 tested. Both of SOP setting was returned same message.

Thanks.

+1 Pradipta Bandyopadhyay over 2 years ago

Hi Ben,

1) Can you confirm if you have followed all the steps in the SDK user guide under this section "How to connect mmWave EVM to CCS using JTAG" ?

Also, you should be in functional mode (001 SOP settings) to connect to the cores.

2) Also please confirm if you have flashed the device ?

3) How you have flashed the device ?

4) What files you have flashed to the device ?

Thanks,

Pradipta.

0 Ben over 2 years ago in reply to Pradipta Bandyopadhyay

Hi Pradipta

Thanks your guide, I checked following your comments.

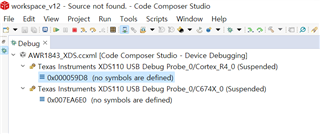

It worked after set 001 SOP. Also I have flashed firmware to device as CCS debugging version already.

Thanks.
