IWRL6432: Inquiry about Presence Detection Demo

Takayuki Miyazaki
Genius 10120 points
Part Number: IWRL6432

Hi Experts,

Our customer is evaluating “Presence Detection Demo” with IWRL6432BOOST, they’re encountering the following issue. this means, the point cloud is not displayed. I attached customer’s cfg file (MyPD.cfg). The terminal log is as follows.

Fullscreen cmd.txt Download
Join
Device reset successful and ready for reconfig!!
127.0.0.1 - - [06/Jun/2023 19:04:26] "GET /visualizer/api/reset HTTP/1.1" 200 -
127.0.0.1 - - [06/Jun/2023 19:04:26] "POST /visualizer/api/cfg-file/save HTTP/1.1" 200 -
<VisualizerCore(Thread-29, started daemon 5308)>
Stopping Serial thread
Stopping Frame Parser thread
Visualizer Core Stopped
a
C
Successfully connected to COM4 ...
Start parsing messages ...
Visualizer Core Started
Requesting for versions
Command to device : version

Command to device : sensorStop 0

Command to device : channelCfg 7 3 0

Command to device : chirpComnCfg 20 0 0 128 4 35.00 0

Command to device : chirpTimingCfg 6.0 20 0 16.00 61.00

Command to device : frameCfg 1 0 3000.00 1 50.00 0

Command to device : guiMonitor 2 2 0 0 0 1 0 0 1 1 1

Command to device : sigProcChainCfg 32 8 2 0 4 4 0 0.1

Command to device : cfarCfg 2 4 3 2 0 12.0 0 0.5 0 1 1 1

Command to device : aoaFovCfg -40 40 -30 30

Command to device : rangeSelCfg 0.1 20.0

Command to device : clutterRemoval 1

Command to device : compRangeBiasAndRxChanPhase 0.0 1.0 0.0 -1.0 0.0 1.0 0.0 -1.0 0.0 1.0 0.0 -1.0 0.0

Command to device : adcDataSource 0 adc_data_0001_CtestAdc6Ant.bin

Command to device : adcLogging 0

Command to device : lowPowerCfg 0

Command to device : factoryCalibCfg 1 0 40 0 0x1ff000

Command to device : mpdBoundaryBox 1 -10.0 10.0 0 20.0 -1.0 3.0

Command to device : sensorPosition 0 0 0 0 0

Command to device : baudRate 115200

Command to device : sensorStart 0 0 0 0

sensorStop 0

Done

mmwDemo:/>channelCfg 7 3 0

Done

mmwDemo:/>chirpComnCfg 20 0 0 128 4 35.00 0

Done

mmwDemo:/>chirpTimingCfg 6.0 20 0 16.00 61.00

Done

mmwDemo:/>frameCfg 1 0 3000.00 1 50.00 0

Done

mmwDemo:/>guiMonitor 2 2 0 0 0 1 0 0 1 1 1

Done

mmwDemo:/>sigProcChainCfg 32 8 2 0 4 4 0 0.1

Done

mmwDemo:/>cfarCfg 2 4 3 2 0 12.0 0 0.5 0 1 1 1

Done

mmwDemo:/>aoaFovCfg -40 40 -30 30

Done

mmwDemo:/>rangeSelCfg 0.1 20.0

Done

mmwDemo:/>clutterRemoval 1

Done

mmwDemo:/>compRangeBiasAndRxChanPhase 0.0 1.0 0.0 -1.0 0.0 1.0 0.0 -1.0 0.0 1.0 0.0 -1.0 0.0

Done

mmwDemo:/>adcDataSource 0 adc_data_0001_CtestAdc6Ant.bin

Done

mmwDemo:/>adcLogging 0

Done

mmwDemo:/>lowPowerCfg 0

Done

mmwDemo:/>factoryCalibCfg 1 0 40 0 0x1ff000

Done

mmwDemo:/>mpdBoundaryBox 1 -10.0 10.0 0 20.0 -1.0 3.0

Done

mmwDemo:/>sensorPosition 0 0 0 0 0

Done

mmwDemo:/>baudRate 115200

Done

mmwDemo:/>
127.0.0.1 - - [06/Jun/2023 19:04:31] "POST /visualizer/api/vs-core/setup-device HTTP/1.1" 200 -

Can we have any advice/comments on this, please?



Their environment is as follows.

==================

Visualizer version.: MMWAVE_L (Version: 05.02.00.02)

Cfg file which customer uses: MyPD.cfg (I attached it to this email)

Baud-rate: 115200

-----------

Maximum unambiguous range: 20 m

Sampling Rate: 5.0 MHz

Sweep time: 25.6 msec.

Bandwidth: 0.41 GHz

Chirp Start Freq.: 61.0 GHz

==================



Best regards,

Miyazaki

  • +1
    TI__Mastermind 20611 points

    Hello,

    So the demo is flashed to the IWRL6432BOOST EVM and after sending the configuration file there is no response in the visualizer, is that correct?

    It would be beneficial if the customer can run the same in debug mode with CCS to see if there is any error message. Please direct the customer to this guide for the CCS debug instructions.

    Also, is it only the configuration file that has been customized or has there been modifications made to the demo source code?

    Best Regards,

    Josh

  • 0 in reply to Josh Dye
    TI__Genius 10120 points

    Hello Josh,

    Thank you for your reply.

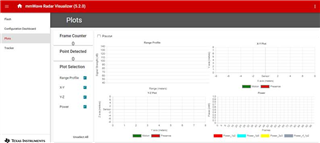

    First of all, please collect me some points because I have misunderstood. Customer is evaluating  “Presence And Motion Detection” Demo. I tried to this demo by default, and I confirmed this demo is working fine. And then, I re-tried to do this demo with customer’s config file. As the result, visualizer seems to stop as follows. But, it did not freeze. And then, I loaded the default configuration by pushing “Send Selected configuration” button, and I confirmed this demo is working fine again. This means, it seems customer’s cfg file has some issues. Customer does not modify demo source code. Can we have your expert’s advice/comments on this customer’s cfg file(0726.MyPD.cfg), please?



    Thank you and best regards,

    Miyazaki

  • 0 in reply to Takayuki Miyazaki
    TI__Mastermind 20611 points

    Hi Miyazaki-san,

    My apologies for the delay here. At first glance, I see no reason that this configuration file should cause the demo to fail. We will need to investigate further to find the problem here. I will attempt to replicate the issue on my end as well. Please expect a response early next week.

    Best Regards,

    Josh

  • 0 in reply to Josh Dye
    TI__Mastermind 20611 points

    Hello Miyazaki-san,

    Very sorry for they delayed response here. I believe this issue was resolved via email, is that correct? Can this thread be closed or are you still looking for support?

    Best Regards,

    Josh

  • +1 in reply to Josh Dye
    TI__Genius 10120 points

    Hi Josh,

    Yes, this issue was resolved with this config file(MyPD_with_minorState_update.cfg). It looks like the original cfg file did not have the “minorStateCfg” with the thresholds setup for the 20m config.

    If I receive further inquiries, I’ll put them into new e2e thread.

    Best regards,

    Miyazaki
