AWR2243BOOST: Range azimuth plot

Iulian Sava

Prodigy 70 points

Part Number: AWR2243BOOST

Hello,

I am unable to understand how to proceed with the range azimuth plot.

What i want is to reproduce the plot shown with the processing done with mmwave studio.

I have obtained the range fft and doppler fft corectly but i do not know that to do next.

Can you please give me directions? What is the process for obtaining the range angle?

Thanks,

Iulian

over 2 years ago

0 Kaushik Gowda over 2 years ago

TI__Mastermind 20605 points

Hi Lulian,

Customers are required to go through the MATLAB post processing script that derives the range-azimuth plot from the data and understand the same. Further support cannot be provided on the matter.

Regards,

Kaushik

0 Iulian Sava over 2 years ago in reply to Kaushik Gowda

Prodigy 70 points

Hi Kaushik,

Can you tell me how this kind of plot was made? What type of plot is?

0 Kaushik Gowda over 2 years ago in reply to Iulian Sava

TI__Mastermind 20605 points

Hi Lulian,

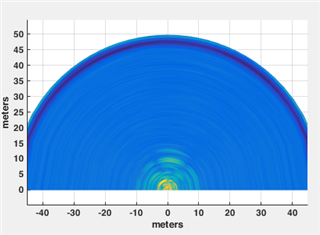

This is a range azimuth heat map. It is plotted for an energy spectrum across range and angle FFT. With respect to how it is plotted, please refer to the source of the post processing code.

Regards,

Kaushik
