AWR1843BOOST: want to know about pin Configuration file of AWR1843Boost

Miit Prajapati

Part Number: AWR1843BOOST
Other Parts Discussed in Thread: SYSCONFIG

Hello Team,

Greetings from Miit Prajapati.

I use AWR1843Boost module for my project, I want to know about a file in which all the pin of AWr1843Boost was configurated

pin like (ADC, transmitter pin, receiver pin, etc).

Please help my and give me information about it.

Thanks & Regards

Miit Prajapati.

over 2 years ago

0 aozer over 2 years ago

TI__Mastermind 30545 points

Hello,

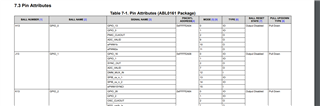

The pins are configured using the pinmux. You can see the default configuration of the pins in table 7-1 column 2 of the datasheet. The other available pinmux configurations are in column 3.

You can use the sysconfig tool to setup the pinmux code to enable the desired pinmux configuration.

https://www.ti.com/tool/SYSCONFIG

Regards,

Adrian

0 Miit Prajapati over 2 years ago in reply to aozer

Intellectual 280 points

Hello aozer,

Thanks for replying.

sysconfig tool is also a part of (code complier studio) IDE, As TI was mentioned these on its official site. In which section of IDE I found this tools..?

Thanks

Miit prajapati

0 Josh Wyatt over 2 years ago in reply to Miit Prajapati

TI__Guru* 91206 points

Dear Miit -

Thanks for your patience - Adrian has been out on vacation all this week.

Here again is link to sysconfig ==> https://www.ti.com/tool/SYSCONFIG
