AWR2944: CHIRP_START, CHIRP_END TIMING

radar_pete
Intellectual 400 points
Part Number: AWR2944

Hi,

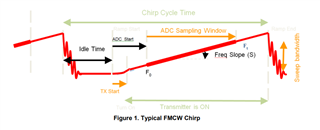

I'm just wondering what the timing is on CHIRP_START and CHIRP_END signals from the AWR2944? Is the pulse on CHIRP_START sent at the 'Ramp Start' time in the below diagram? Likewise is the pulse on CHIRP_END sent at the 'Ramp End' time in the below diagram? I can't find anything in any TI app notes relating to this.

www.ti.com/.../swra553a.pdf
