AWR2944: debug sbl uart uniflash by ccs,no symbols are defined

XiangLiping

Prodigy 230 points

Part Number: AWR2944
Other Parts Discussed in Thread: UNIFLASH

Hi,experts

1.i download ccs debug image

2.sop in qspi boot mode

3.launch ccs12.1,import ccs projects

4.add loop forever at the begging of main()

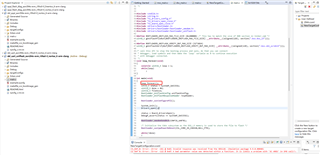

5.build the project, succss compile ,sbl_uart_uniflash_awr294x-evm_r5fss0-0_nortos_ti-arm-clang.out is ready,and connect r5f0_0,and load program,the result is that,"no symbols are defined"

so my queston is that:

1.how to debug sbl uart uniflash by ccs project

2.is anything else should be download to flash?

Thank you!

over 2 years ago

0 Pradipta Bandyopadhyay over 2 years ago

TI__Mastermind 32725 points

Hi,

I will compose a list of steps required for the debug and provide it to you in a couple of days.

Thanks,

Pradipta.

0 Pradipta Bandyopadhyay over 2 years ago

TI__Mastermind 32725 points

Hi,

1) The modified sbl_uart_uniflash code needs to be flashed onto the device.

2) Once it is flashed, you can connect to CCS and load the symbols (.out file onto the device and begin your debug)

The device needs to be in boot mode.

Thanks,

Pradipta.

0 XiangLiping over 2 years ago in reply to Pradipta Bandyopadhyay

Prodigy 230 points

for step 2,when i connect ccs,should i reset the cpu,or just load symbols without reset;

what boot mode,you mean SOP[2:0] = 001?(qspi mode)

0 Pradipta Bandyopadhyay over 2 years ago in reply to XiangLiping

TI__Mastermind 32725 points

Hi,

1) You can do a soft reset (option provided in CCS) and load the symbols.

2) I mean the SOP [2:0] = 101. [Flashing mode]

Thanks,

Pradipta.

0 XiangLiping over 2 years ago in reply to Pradipta Bandyopadhyay

Prodigy 230 points

if i flash sbl,SOP [2:0] = 101,then if i need debug sbl,SOP [2:0] = 001;is that right?

+1 Pradipta Bandyopadhyay over 2 years ago in reply to XiangLiping

TI__Mastermind 32725 points

Hi,

For debug also use SOP [2:0] = 101. Functional mode or SOP 001 will not be useful for debugging uart uniflash code.

Thanks,

Pradipta.
