AWR6843AOPEVM: 51441-1093 Connector

Berke ARSLAN

Part Number: AWR6843AOPEVM

Hello everyone,

I am using AWR6843AOPEVM board for in-cabin radar applications. There are two connectors on the board for LCD display named: 51441-1093 (10 pin, 0.5mm pitch)

I want to try them but couldn't find any LCD displays compatible for these connectors.

Does anyone know what should I use?

Any cable and LCD display monitor recommendations for these connectors will be appreciated.

Thanks.

over 2 years ago

0 Clinton Rodgers over 2 years ago

TI__Genius 13235 points

Hi,

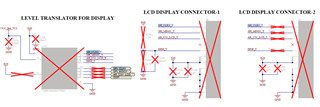

We do not populate these connections on the EVM, however you can find the SPI LCD pinouts in the EVM schematics. I have copied this section below for reference. Note that the level translator would also need to be populated to connect to the device.

Could you provide some more information on why you are trying to use this display? There may be other options available to accomplish something similar.

Link to schematics and BOM download: https://www.ti.com/lit/zip/swrr166

Above from: https://www.ti.com/tool/AWR6843AOPEVM

Thanks,

Clinton

0 Berke ARSLAN over 2 years ago in reply to Clinton Rodgers

Prodigy 20 points

Hi Clinton,

Thanks for your detailed answer.

Actually I want to use LCD display for vital signals monitoring. Also I have populated the level translator too, so I just need to find a compatible LCD display and cables for the full setup.

Thanks again.

0 Clinton Rodgers over 2 years ago in reply to Berke ARSLAN

TI__Genius 13235 points

Hi,

Thanks for the follow up. We do not have a particular LCD display recommendation, however we pin out these signals as a way for customers to develop this as part of their application.

Thanks again,

Clinton
