IWR6843LEVM: PCB & Prepreg

HJ Kim

Part Number: IWR6843LEVM

Hi,

I will try to make a development board by referring to your product.(IWR6843LEVM)

Can you tell us what kind of PCB material you used for that product?
Based on the design data provided by your company, we will use of ISOLA's FR408(2x1067) and 1x1652 and 2x1652 of PCL370HR.

Can I use that Model?
Also, What do I use model of Prepreg?

After reviewing, please reply.

Thank you.

over 2 years ago

0 Ankit Mohanty over 2 years ago

TI__Genius 9490 points

Hi,

We are looking into your query and will get back to you soon.

Regards

Ankit

0 Ankit Mohanty over 2 years ago

TI__Genius 9490 points

Hi,

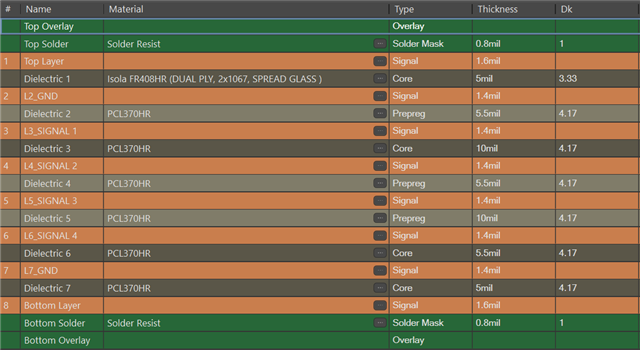

Please find the stack up details in the image below.

Regards

Ankit

0 HJ Kim over 2 years ago in reply to Ankit Mohanty

Prodigy 35 points

Hello,

Thank you for your kind. but I have a more question.

I saw that Layer table. but it don't matching ISOLA's Datasheet table.

For example, PCL370HR between 2 and 3 Layer, Dk=4.17, Thickness 5.5mil.

but ISOLA datasheet haven't that spec.

so I need your help, and I want exact model Number.

Have a good day.

+1 Ankit Mohanty over 1 year ago in reply to HJ Kim

TI__Genius 9490 points

Please find the correct stack up details below. The above layer stack up details have been updated.

Regards

Ankit
