IWRL6432BOOST: Power Consumption per SWRA766 - Tracking and Classification

Larry Arne

Part Number: IWRL6432BOOST
Other Parts Discussed in Thread: IWRL6432

Table 1 indicates 50 mW for "3+ persons tracking". I would like to confirm that measurement / duplicate that set-up.

I have a Boost board and ran the "human nonhuman classification" demo. It did a nice job tracking multiple people in its FOV. However, when I measured power consumption, I saw 1W+ going into the digital core supply. I had noticed the errata on the power measurement function and used a 6-digit DMM to measure the voltage drop across the sense resistor directly.

over 2 years ago

0 Ankit Mohanty over 2 years ago

TI__Genius 9630 points

Hi,

We are looking into your query & will get back to soon.

Regards

Ankit

0 Ankit Mohanty over 2 years ago in reply to Ankit Mohanty

TI__Genius 9630 points

Hi Larry,

Could you possibly point me to the errata you are referring to.

Regards

Ankit

0 Larry Arne over 2 years ago in reply to Ankit Mohanty

Prodigy 10 points

[FAQ] IWRL6432: Measuring Power Consumption on IWRL6432BOOST - Sensors forum - Sensors - TI E2E support forums

I saw mention of it in the power consumption App Note.

0 Ankit Mohanty over 2 years ago in reply to Larry Arne

TI__Genius 9630 points

Larry,

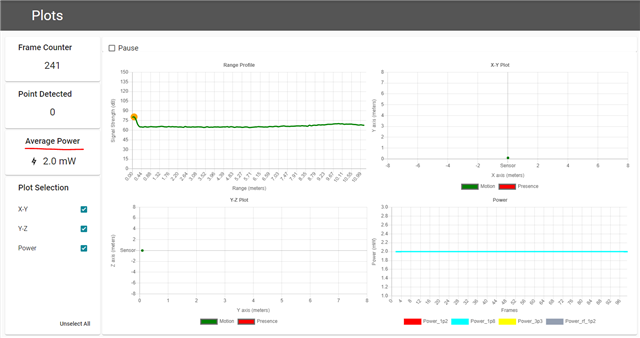

You can try using Low Power mmWave Visualizer. The visualizer tool enables you to read the averafe power.

Regards

Ankit

0 Larry Arne over 2 years ago

Prodigy 10 points

Ankit, thanks, but that does not really answer my question. Which demo do I use to recreate the 3+ persons tracking as described in table 1 in SWRA766? I tried the mmWave Industrial Visualizer and the FW mentioned in the human nonhuman classification demo, but when I measured the voltage drop across current sense resistor for the digital core, it showed about ~1 amp steady current draw.

0 Nathan Block over 1 year ago in reply to Larry Arne

TI__Mastermind 37785 points

Hi Larry,

What kind of timing are you using in your measurement? The IWRL6432 draws a lot of current when chirping, but that is only for a very brief time. Can you try to plot the power received over time?

Best,

Nate

0 David Pearson over 1 year ago in reply to Nathan Block

Prodigy 10 points

Hi Nathan Block

1. Do you have an answer for Larry's question: "Which demo do I use to recreate the 3+ persons tracking as described in table 1 in SWRA766? "

2. I will need to research the method Larry used to measure the power draw. Based on his statement "1 amp steady current draw" I expect this is an average value, measured with a multimeter..

0 Nathan Block over 1 year ago in reply to David Pearson

TI__Mastermind 37785 points

Hi David,

David Pearson said:
1. Do you have an answer for Larry's question: "Which demo do I use to recreate the 3+ persons tracking as described in table 1 in SWRA766? "

You can use the motion and presence detection demo with any of the tracking/classification configuration files.

David Pearson said:
2. I will need to research the method Larry used to measure the power draw. Based on his statement "1 amp steady current draw" I expect this is an average value, measured with a multimeter..

We've measured the power on the IWRL6432 pretty extensively and I'm quite confident there is a discrepancy here somewhere. We can work together to figure out why there is a difference in the power results. You are free to measure it yourself or recreate Larry's setup. Let us know when you have results here so we can get to the bottom of it.

Best,

Nate
