use mmWave Studio 3.0.0.14 to capture raw data by TDA2 EVM and MMWCAS-RF-EVM.

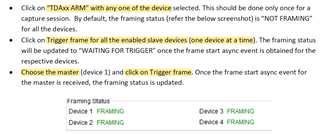

refer to mmwave_studio_cascade_user_guide.pdf.

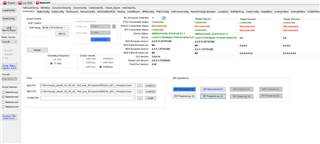

And the Framing status is NOT FRAMING

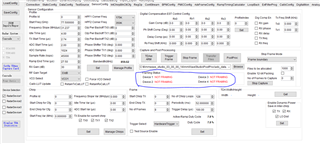

And the output is:
[18:50:27] [DeviceId-1] Frame start async event received!
[18:50:28] CAPTURE_RESPONSE_NETWORK_ERROR Async event recieved! Connection error! Please reboot the TDA board
[18:50:28] [RadarAPI]: ar1.RemoveDevice(2)
[18:50:28] [RadarAPI]: Status: Passed
[18:50:28] [RadarAPI]: ar1.PowerOff_mult()
[18:50:28] [RadarAPI]: Status: Passed
[18:50:29] [RadarAPI]: ar1.FullReset(1)
[18:50:29] [RadarAPI]: Status: Passed
[18:50:29] [RadarAPI]: ar1.SOPControl_mult(1,4)
[18:50:29] [RadarAPI]: Status: Passed
[18:50:29] TDA Capture Card Status : DISCONNECTED!
[18:50:36] Create Application Response from Capture Card timed out!!
[18:50:44] [RadarAPI]: ar1.StartFrame_mult(1)
[18:50:44] Status: Failed, Error Type: INVALID INPUT
GM: Constructor
GM: Tue Sep 05 18:41:07 2023
RSTD.Transmit("/Settings")
[18:41:07]
[18:41:07] ### Running Startup script: "C:\ti\mmwave_studio_03_00_00_14\mmWaveStudio\Scripts\Startup.lua" ###
[18:41:07] RSTD.SetAndTransmit ("/Settings/Scripter/Display DateTime" , "1")
[18:41:07] RSTD.SetAndTransmit ("/Settings/Scripter/DateTime Format" , "HH:mm:ss")
[18:41:07] Scripter ignored: Attempt to UnBuild() again or before Build.
[18:41:07] RSTD.SetVar ("/Settings/Clients/Client 0/Dll" , "C:\\ti\\mmwave_studio_03_00_00_14\\mmWaveStudio\\Clients\\\\LabClient.dll")
[18:41:07] RSTD.SetVar ("/Settings/Clients/Client 0/Use" , "TRUE")
[18:41:07] RSTD.SetVar ("/Settings/Clients/Client 1/Use" , "FALSE")
[18:41:07] RSTD.SetVar ("/Settings/Clients/Client 2/Use" , "FALSE")
[18:41:07] RSTD.SetVar ("/Settings/Clients/Client 3/Use" , "FALSE")
[18:41:07] RSTD.SetVar ("/Settings/Clients/Client 4/Use" , "FALSE")
[18:41:07] RSTD.SetVar ("/Settings/AL Client/AL Dll" , "C:\\ti\\mmwave_studio_03_00_00_14\\mmWaveStudio\\RunTime\\SAL.dll")
[18:41:07] RSTD.SetVar ("/Settings/Clients/Client 0/GuiDll" , "")
[18:41:07] RSTD.SetVar ("/Settings/AutoUpdate/Enabled" , "TRUE")
[18:41:07] RSTD.SetVar ("/Settings/AutoUpdate/Interval" , "1")
[18:41:07] RSTD.SetVar ("/Settings/Monitors/UpdateDisplay" , "TRUE")
[18:41:07] RSTD.SetVar ("/Settings/Monitors/OneClickStart" , "TRUE")
[18:41:07] RSTD.SetVar ("/Settings/Automation/Automation Mode" , "false")
[18:41:07] RSTD.Transmit("/")
[18:41:07] RSTD.SaveSettings(): Settings saved to "C:\Users\dinglei\AppData\Roaming\RSTD\config.xml"
[18:41:07] RSTD.Build()
[18:41:07] RSTD.SaveSettings(): Settings saved to "C:\Users\dinglei\AppData\Roaming\RSTD\config.xml"
[18:41:07] RSTD.Transmit("/")
[18:41:07] RSTD.AL_Build()
[18:41:07] RSTD.AL_LoadXml()
[18:41:07] RSTD.Transmit("/")
[18:41:07] RSTD.AL_Init()
[18:41:07] RSTD.Clients_Build()
[18:41:07] GM: Init
[18:41:07] GM: Loaded 'C:\ti\mmwave_studio_03_00_00_14\mmWaveStudio\Clients\\LabClient.dll'
[18:41:07] GM: 1 Guest (s) init
[18:41:07] GM: 1 Module(s) init
[18:41:07] GM: 2 Tab (s) init
[18:41:07] RSTD.Client_LoadXml()
[18:41:07] [RadarAPI]: ar1.selectRadarMode(0)
[18:41:07] [RadarAPI]: Status: Passed
[18:41:07] Matlab Runtime Engine is installed
[18:41:07] [RadarAPI]: Starting Matlab Engine..
[18:41:10] [RadarAPI]: Matlab Engine Started!
[18:41:11] [RadarAPI]: ar1.selectCascadeMode(0)
[18:41:11] [RadarAPI]: Status: Passed
[18:41:11] [RadarAPI]: ar1.LoadSettings('C:\Users\dinglei\AppData\Roaming\RSTD\ar1gui.ini')
[18:41:11] TESTING = false
[18:41:11] RstdNet: Port 2777: Listening..
[18:41:11]
[18:41:11] ***Script completed successfully.***
[18:41:16] [RadarAPI]: ar1.selectRadarMode(1)
[18:41:16] [RadarAPI]: ar1.selectCascadeMode(1)
[18:41:16] [RadarAPI]: Status: Passed
[18:41:16] [RadarAPI]: Status: Passed
[18:41:17] [RadarAPI]: ar1.SelectCaptureDevice("TDA2XX")
[18:41:17] [RadarAPI]: Status: Passed
[18:41:22] [RadarAPI]: TDAStatusCallback Event Registered
[18:41:22] [RadarAPI]: registerTDAStatusCallback Status: Passed
[18:41:22] [RadarAPI]: ar1.ConnectTDA("192.168.33.180", 5001, 3)
[18:41:30] [RadarAPI]: TDAStatusCallback Event Registered
[18:41:30] [RadarAPI]: registerTDAStatusCallback Status: Passed
[18:41:30] [RadarAPI]: ar1.ConnectTDA("192.168.33.180", 5001, 3)
[18:41:30] [RadarAPI]: Device 32 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
[18:41:30] [RadarAPI]: Device 32 : CAPTURE_RESPONSE_VERSION_INFO Async event recieved() with status 0. TDA Version : REL_VISION_SDK_03_07_01_00 Aug 5 2019 15:04:45[18:41:30] [RadarAPI]: Device 32 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
[18:41:32] [RadarAPI]: Device 1 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
[18:41:32] [RadarAPI]: ConnectTDACaptureCard Status: Passed
[18:41:32] TDA Capture Card Status : CONNECTED!
[18:41:34] [RadarAPI]: Device 1 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
[18:41:35] [RadarAPI]: Device 1 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
[18:41:35] [RadarAPI]: ar1.FullReset(1)
[18:41:35] [RadarAPI]: Status: Passed
[18:41:35] [RadarAPI]: ar1.SOPControl_mult(1,4)
[18:41:35] [RadarAPI]: Status: Passed
[18:41:36] [DeviceId-0] MSS power up done async event received!
[18:41:36] [RadarAPI]: ar1.PowerOn_mult(1, 0, 1000, 0,0)
[18:41:36] [RadarAPI]: Status: Passed
[18:41:42] [RadarAPI]: ar1.DownloadBSSFw_mult(1,"C:\\ti\\mmwave_studio_03_00_00_14\\rf_eval_firmware\\AWR2243_ES1_1\\radarss\\xwr22xx_radarss.bin")
[18:41:42] [RadarAPI]: ar1.DownloadBssFwOvSPI_mult(1, C:\\ti\\mmwave_studio_03_00_00_14\\rf_eval_firmware\\AWR2243_ES1_1\\radarss\\xwr22xx_radarss.bin)
[18:41:43] [RadarAPI]: Error: Download FW failed with error 64
[18:41:43] Not able to connect with the TDA board. Please check whether the Capture Card is connected to the network!
[18:41:47] [RadarAPI]: ar1.DownloadMSSFw_mult(1, "C:\\ti\\mmwave_studio_03_00_00_14\\rf_eval_firmware\\AWR2243_ES1_1\\masterss\\xwr22xx_masterss.bin")
[18:41:47] [RadarAPI]: ar1.DownloadMssFwOvSPI_mult(1, C:\\ti\\mmwave_studio_03_00_00_14\\rf_eval_firmware\\AWR2243_ES1_1\\masterss\\xwr22xx_masterss.bin)
[18:41:47] [RadarAPI]: Error: Download FW failed with error 64
[18:41:52] [RadarAPI]: ar1.SelectChipVersion("AR1243")
[18:41:52] [RadarAPI]: Status: Passed
[18:41:52] [RadarAPI]: ar1.SelectChipVersion("AR1243")
[18:41:52] [RadarAPI]: Status: Passed
[18:41:52] [RadarAPI]: ar1.deviceVariantSelection("XWR2243")
[18:41:52] [RadarAPI]: Status: Passed
[18:41:52] [RadarAPI]: ar1.frequencyBandSelection("77G")
[18:41:52] [RadarAPI]: ar1.SelectChipVersion("XWR2243")
[18:41:52] [RadarAPI]: Status: Passed
[18:41:52] Device Status : XWR2243/ASIL-B/SOP:4/ES:1.1
[18:41:52] [RadarAPI]: ar1.RfEnable_mult(1)
[18:41:52] [DeviceId-0] BSS power up done async event received!
[18:41:52] [RadarAPI]: Status: Passed
[18:41:59] [RadarAPI]: ar1.ChanNAdcConfig_mult(1, 1, 1, 1, 1, 1, 1, 1, 2, 0, 0, 1)
[18:41:59] [RadarAPI]: Status: Passed
[18:42:01] [RadarAPI]: ar1.RfInit_mult(1)
[18:42:01] [DeviceId-0] RF Init async event received!
[18:42:01] [RadarAPI]: Time stamp, Temperture: 9475,48; APLL Status, Update: 1, 0; SynthVCO1 Status, Update: 1, 1; SynthVCO2 Status, Update: 1, 1; LODist Status, Update: 1, 1; RxADCDC Status, Update: 1, 1; HPFcutoff Status, Update: 1, 1; LPFcutoff Status, Update: 1, 1; PeakDetector Status, Update: 1, 1; TxPower Status, Update: 1, 1; RxGain Status, Update: 1, 1; TxPhase Status, Update: 1, 1; RxIQMM Status, Update: 0, 0;
[18:42:01] [RadarAPI]: Status: Passed
[18:42:08] [RadarAPI]: Device 2 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
[18:42:09] [RadarAPI]: Device 2 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
[18:42:09] [RadarAPI]: ar1.FullReset(2)
[18:42:09] [RadarAPI]: Status: Passed
[18:42:09] [RadarAPI]: ar1.SOPControl_mult(2,4)
[18:42:09] [RadarAPI]: Status: Passed
[18:42:11] [DeviceId-1] MSS power up done async event received!
[18:42:11] [RadarAPI]: ar1.AddDevice(2)
[18:42:11] [RadarAPI]: Status: Passed
[18:42:17] [RadarAPI]: ar1.DownloadBSSFw_mult(2,"C:\\ti\\mmwave_studio_03_00_00_14\\rf_eval_firmware\\AWR2243_ES1_1\\radarss\\xwr22xx_radarss.bin")
[18:42:17] [RadarAPI]: ar1.DownloadBssFwOvSPI_mult(2, C:\\ti\\mmwave_studio_03_00_00_14\\rf_eval_firmware\\AWR2243_ES1_1\\radarss\\xwr22xx_radarss.bin)
[18:42:18] [RadarAPI]: Error: Download FW failed with error 64
[18:42:22] [RadarAPI]: ar1.DownloadMSSFw_mult(2, "C:\\ti\\mmwave_studio_03_00_00_14\\rf_eval_firmware\\AWR2243_ES1_1\\masterss\\xwr22xx_masterss.bin")
[18:42:22] [RadarAPI]: ar1.DownloadMssFwOvSPI_mult(2, C:\\ti\\mmwave_studio_03_00_00_14\\rf_eval_firmware\\AWR2243_ES1_1\\masterss\\xwr22xx_masterss.bin)
[18:42:22] [RadarAPI]: Error: Download FW failed with error 64
[18:42:27] [RadarAPI]: ar1.SelectChipVersion("AR1243")
[18:42:27] [RadarAPI]: Status: Passed
[18:42:27] [RadarAPI]: ar1.SelectChipVersion("XWR2243")
[18:42:27] [RadarAPI]: Status: Passed
[18:42:27] Slave1 Device Status : XWR2243/ASIL-B/SOP:4/ES:1.1
[18:42:27] [RadarAPI]: ar1.RfEnable_mult(2)
[18:42:27] [DeviceId-1] BSS power up done async event received!
[18:42:27] [RadarAPI]: Status: Passed
[18:43:32] [RadarAPI]: ar1.ChanNAdcConfig_mult(2, 1, 1, 1, 1, 1, 1, 1, 2, 0, 0, 2)
[18:43:32] [RadarAPI]: Status: Passed
[18:43:33] [RadarAPI]: ar1.RfInit_mult(2)
[18:43:33] [DeviceId-1] RF Init async event received!
[18:43:33] [RadarAPI]: Time stamp, Temperture: 66233,48; APLL Status, Update: 1, 0; SynthVCO1 Status, Update: 1, 1; SynthVCO2 Status, Update: 1, 1; LODist Status, Update: 1, 1; RxADCDC Status, Update: 1, 1; HPFcutoff Status, Update: 1, 1; LPFcutoff Status, Update: 1, 1; PeakDetector Status, Update: 1, 1; TxPower Status, Update: 1, 1; RxGain Status, Update: 1, 1; TxPhase Status, Update: 1, 1; RxIQMM Status, Update: 0, 0;
[18:43:33] [RadarAPI]: Status: Passed
[18:48:04] [RadarAPI]: ar1.DataPathConfig_mult(2, 512, 1216644097, 0)
[18:48:04] [RadarAPI]: Status: Passed
[18:48:06] [RadarAPI]: ar1.LvdsClkConfig_mult(2, 1,1)
[18:48:06] [RadarAPI]: Status: Passed
[18:48:07] [RadarAPI]: ar1.CSI2LaneConfig_mult(2, 1, 0, 2, 0, 4, 0, 5,0,3,0, 0)
[18:48:07] [RadarAPI]: Status: Passed
[18:48:11] [RadarAPI]: ar1.SetCSI2DelayConfig_mult(2, 0, 0, 0)
[18:48:11] [RadarAPI]: Status: Passed
[18:48:30] [RadarAPI]: ar1.DataPathConfig_mult(1, 512, 1216644097, 0)
[18:48:30] [RadarAPI]: Status: Passed
[18:48:32] [RadarAPI]: ar1.LvdsClkConfig_mult(1, 1,1)
[18:48:32] [RadarAPI]: Status: Passed
[18:48:33] [RadarAPI]: ar1.CSI2LaneConfig_mult(1, 1, 0, 2, 0, 4, 0, 5,0,3,0, 0)
[18:48:33] [RadarAPI]: Status: Passed
[18:48:33] [RadarAPI]: ar1.SetCSI2DelayConfig_mult(1, 0, 0, 0)
[18:48:33] [RadarAPI]: Status: Passed
[18:48:44] [RadarAPI]: ar1.ProfileConfig_mult(1, 0, 77.5, 4, 2, 27.5, 0, 0, 0, 0, 0, 0, 31.237, 2.74, 1024, 45000, 0, 0, 94)
[18:48:44] [RadarAPI]: Status: Passed
[18:48:50] [RadarAPI]: ar1.ProfileConfig_mult(1, 0, 77.5, 4, 2, 27.5, 0, 0, 0, 0, 0, 0, 31.237, 2.74, 1024, 45000, 0, 0, 94)
[18:48:50] [RadarAPI]: Status: Passed
[18:48:56] [RadarAPI]: ar1.ChirpConfig_mult(1, 0, 0, 0, 0, 0, 0, 0, 1, 1,1)
[18:48:56] [RadarAPI]: Status: Passed
[18:49:04] [RadarAPI]: ar1.ChirpConfig_mult(1, 0, 0, 0, 0, 0, 0, 0, 1, 1,1)
[18:49:04] [RadarAPI]: Status: Passed
[18:49:14] Test Source Already Disabled...!!!
[18:49:14] [RadarAPI]: ar1.DisableTestSource_mult(1,0)
[18:49:14] [RadarAPI]: Status: Passed
[18:49:14] [RadarAPI]: ar1.FrameConfig_mult(1, 0, 0, 8, 128, 52, 0, 2)
[18:49:15] [RadarAPI]: Status: Passed
[18:49:18] [RadarAPI]: ar1.ProfileConfig_mult(2, 0, 77.5, 4, 2, 27.5, 0, 0, 0, 0, 0, 0, 31.237, 2.74, 1024, 45000, 0, 0, 94)
[18:49:18] [RadarAPI]: Status: Passed
[18:49:20] [RadarAPI]: ar1.ChirpConfig_mult(2, 0, 0, 0, 0, 0, 0, 0, 1, 1,1)
[18:49:20] [RadarAPI]: Status: Passed
[18:49:27] Test Source Already Disabled...!!!
[18:49:27] [RadarAPI]: ar1.DisableTestSource_mult(2,0)
[18:49:27] [RadarAPI]: Status: Passed
[18:49:27] [RadarAPI]: ar1.FrameConfig_mult(2, 0, 0, 8, 128, 52, 0, 2)
[18:49:27] [RadarAPI]: Status: Passed
[18:50:25] [RadarAPI]: ar1.TDACaptureCard_StartRecord_mult(2, 1000, 0, adc_data, 0)
[18:50:25] Device 0 - Configuring TDA with Width : 4096 and Height : 128
[18:50:25] [RadarAPI]: Device 0 - setWidthAndHeight Status: Passed
[18:50:25] Device 1 - Configuring TDA with Width : 4096 and Height : 128
[18:50:25] [RadarAPI]: Device 1 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
[18:50:25] [RadarAPI]: Device 1 - setWidthAndHeight Status: Passed
[18:50:25] [RadarAPI]: Device 2 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
[18:50:25] Device 2 - Configuring TDA with Width : 0 and Height : 0
[18:50:25] [RadarAPI]: Device 2 - setWidthAndHeight Status: Passed
[18:50:25] Device 3 - Configuring TDA with Width : 0 and Height : 0
[18:50:25] [RadarAPI]: Device 3 - setWidthAndHeight Status: Passed
[18:50:25] Sending Frame Periodicity of 52 to TDA..
[18:50:25] [RadarAPI]: Status: Passed. Frame Periodicity sent to TDA
[18:50:25] [RadarAPI]: Device 32 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
[18:50:25] Sending Capture Directory with name /mnt/ssd/adc_data to TDA..
[18:50:25] [RadarAPI]: Status: Passed. Capture Directory sent to TDA
[18:50:25] [RadarAPI]: Device 32 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
[18:50:25] Sending File Allocation of 1000 files to TDA..
[18:50:25] [RadarAPI]: Status: Passed. File Allocation sent to TDA
[18:50:25] [RadarAPI]: Device 32 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
[18:50:25] Sending Enable Data Packaging (0 - 16-bit; 1 - 12-bit) with value of 0 to TDA..
[18:50:25] [RadarAPI]: Status: Passed. Enable Data Packaging sent to TDA
[18:50:25] [RadarAPI]: Device 32 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
[18:50:25] Sending Number of frames to capture with value of 0 to TDA..
[18:50:25] [RadarAPI]: Status: Passed. Number of frames to capture sent to TDA
[18:50:25] [RadarAPI]: Device 32 : CAPTURE_RESPONSE_ACK Async event recieved() with status 0
[18:50:26] [RadarAPI]: Status: Passed for notifying TDA about Creating Application
[18:50:27] [RadarAPI]: ar1.StartFrame_mult(2)
[18:50:27] [RadarAPI]: Status: Passed
[18:50:27] [DeviceId-1] Frame start async event received!
[18:50:28] CAPTURE_RESPONSE_NETWORK_ERROR Async event recieved! Connection error! Please reboot the TDA board
[18:50:28] [RadarAPI]: ar1.RemoveDevice(2)
[18:50:28] [RadarAPI]: Status: Passed
[18:50:28] [RadarAPI]: ar1.PowerOff_mult()
[18:50:28] [RadarAPI]: Status: Passed
[18:50:29] [RadarAPI]: ar1.FullReset(1)
[18:50:29] [RadarAPI]: Status: Passed
[18:50:29] [RadarAPI]: ar1.SOPControl_mult(1,4)
[18:50:29] [RadarAPI]: Status: Passed
[18:50:29] TDA Capture Card Status : DISCONNECTED!
[18:50:36] Create Application Response from Capture Card timed out!!
[18:50:44] [RadarAPI]: ar1.StartFrame_mult(1)
[18:50:44] Status: Failed, Error Type: INVALID INPUT
