IWR6843LEVM: How do I output H with GPIO when I detect movement in the antenna sensing area?

Hi,

We are looking into your question. An expert will respond here within 24 hrs.

Thanks,

Josh

Junehee Park said:

  - Azimuth Angle Adjustment

What does this mean?

Junehee Park said:

  - H output to pin J13 of IWR6843 when detecting movement within Azimuth angle

See our GPIO example under C:\ti\MMWAVE_L_SDK_05_03_00_02\examples\drivers\gpio\gpio_led_blink for a starting point.

You'll need to create a GPIO in sysconfig, then you'll be able to toggle it with the GPIO library functions.

Best,

Nate

Hi Nathan Block~

1. I want to adjust the angle and distance in the program as shown in the picture below. What should I refer to?

                      [ mmWave Demo Visualizer ]

2. Where can I download the SDK for the link you told me?

               [ TI mmWave SDK ]

Hi,

Junehee Park said:

1. I want to adjust the angle and distance in the program as shown in the picture below. What should I refer to?

Real-time tuning is not supported. You will need to adjust the tuning before the device begins transmitting.

Junehee Park said:

2. Where can I download the SDK for the link you told me?

https://www.ti.com/tool/MMWAVE-L-SDK

Thank you.

Best,

Nate

Hi~

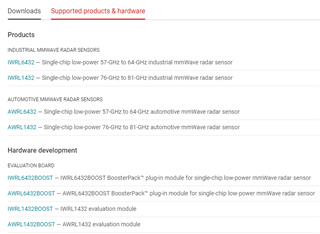

The SDK you told me does not support IWR6843L.

What are some examples of SDKs that support IWR6843L or AWR6843?

Please explain which part of the file should be modified.

Hi~

Additionally, what file variables should I modify to adjust FoV in the TI example program?

Hello,

Nate is currently out of office. He is expected to return tomorrow. Your patience is greatly appreciated.

Best Regards,

Josh

Hi~

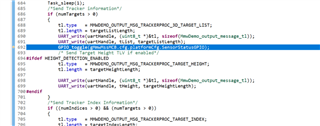

I'm trying to implement logic that turns the LED on/off when an object is detected within the FoV.

If there is a similar example file provided by TI, please recommend it.

And what steps should I take to download the recommended example file to AWR6843ISK?

Thanks~
