AWR2944EVM: AWR2944EVM Current Sensors

ismail cevrim

Part Number: AWR2944EVM
Other Parts Discussed in Thread: INA226

Hi TI,

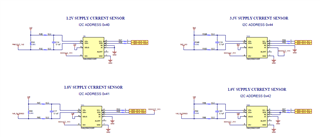

I see some current sensors on AWR2944EVM board. What is the cause of using them ? Does ADAS or Body Control Unit require to receive hardware safety data from radar ? I've left an image below about current sensors.

Thanks in advance.

Ismail.

over 2 years ago

0 E. Shareef over 2 years ago

TI__Genius 16410 points

Hello,

Each current sensor is for the different voltage rail.

-E. Shareef

0 ismail cevrim over 2 years ago in reply to E. Shareef

Prodigy 60 points

Hi Shareef,

I have known how they works. I have aimed to say that i just wonder that what is the reason to use them. For example, To provide safety requirements or to have failure detection ability that can be occur on radar sensor. As a long story short, what is the cause of using those current sensors on board ?

Regars.

+1 E. Shareef over 2 years ago in reply to ismail cevrim

TI__Genius 16410 points

The INA226 is a current shunt and power monitor over i2c interface. It senses current/power on common-mode bus voltages. Four ofi them are used for each Voltage rail and their corresponding current/power.

Hope this helps,

-E. Shareef
