AWR1843AOP: Altium to PADS Format Convert of 6843AOP EVK PCB Design File

Jack

Part Number: AWR1843AOP
Other Parts Discussed in Thread: IWR6843ISK,

Hi Radar Champ

One customer says they can't open the Altium Design File because the company only has PADS tools.

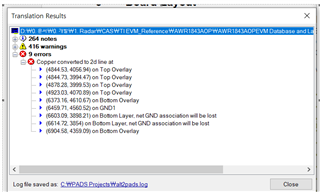

PAD Tool attempted to convert to PADS format using alt2pads.pads.exe utility but could not complete due to the following error.

I don't know the reason why it failed because it was not converted to PCB ASCII File format when Aitium Desing Saving. Could you share the saved in PCB ASCII File Format so that I can import in PADS?
Otherwise, please share the PCB file.

Thanks.

Regards,

Jack

over 2 years ago

0 E. Shareef over 2 years ago

TI__Genius 16310 points

Hello,

Would a DXF file work for your customer?

-E.Shareef

0 Jack over 1 year ago in reply to E. Shareef

Mastermind 9105 points

Hi Ehtesham

Please share DXF file firstly. However they still need PADS conversion.

Please help this topic as the biz potential is hugh related with HKMC, South Korea.

Thanks.

Regards,

Jack

0 E. Shareef over 1 year ago in reply to Jack

TI__Genius 16310 points

I am sending you DSF and PCB ASCII format.

PCB ASCI: PROC106B.pcb

DXF: https://e2e.ti.com/cfs-file/__key/communityserver-discussions-components-files/1023/PROC106B.DWG

Hope this helps,

E. Shareef

0 Jack over 1 year ago in reply to E. Shareef

Mastermind 9105 points

Hi E.Shareef

Thanks for your kind answer.

BTW. Customer is still unable to open your shared file above. both pcb and dwg files.

I supposed they have lack of tool resource. they just have PADS pcb tool only.

They still need the followings

- PADS importable design file by Altium : Current Altium file does not work from PADS import.

- Layout files for each floor in PDF format

- DXF file : They dont have application to open DWG. They may have No-AUTODESK too.

Can you also please provide PADS format export file or share contact point of IWR6843ISK EVK design team? by Mistral?

Thanks.

Regards,

Jack

0 E. Shareef over 1 year ago in reply to Jack

TI__Genius 16310 points

Hey Jack,

I will get in touch with Mistral on this. Give me a few days time.

-E. Shareef

0 Jack over 1 year ago in reply to E. Shareef

Mastermind 9105 points

Yes, Please!

Thanks for your kind help.

Since Many of customer still faces these Altium to PADS/OrCAD translation issue.

Also let us know which PADS version able to import Altium design file as Customer unable to import Altium design file from their PADS professional VX2.8.

Thanks.

Regards,

Jack

0 E. Shareef over 1 year ago in reply to Jack

TI__Genius 16310 points

Can you please confirm for me the name of the EVM you are looking for?

1843AOP EVM? or 6843ISK EVM? or 6843AOP EVM?

0 Jack over 1 year ago in reply to E. Shareef

Mastermind 9105 points

Hi Ehtesham

Sorry for make confused. It's the AWR1843AOP EVM

Thanks.

0 E. Shareef over 1 year ago in reply to Jack

TI__Genius 16310 points

Hello Jack,

I am sharing the AWR1843AOP Gerber files here. PADS has the capability to import these Gerber files.

GERBER: PROC106_Gerber.zip

Hope this helps,

E. Shareef
