PGA305EVM-034: external temperature measurement does't works (PTC)

Roger Schweizer

Part Number: PGA305EVM-034

I am trying to calibrate the PGA305EVM with an external thermistor (PTC) for temperature measurement.
Unfortunately this does not work.
I have the following configuration:

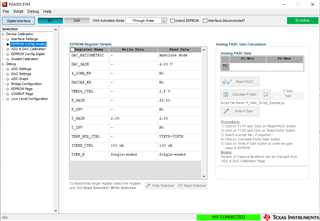

TEMP_MUX_CNTR: VINTP-VINTN
ITEMP_CTRL: 100uA

PTC = 2kOhm

What is wrong ?

Kind Regards

Roger

over 1 year ago

0 Roger Schweizer over 1 year ago

Prodigy 60 points

I have found the problem.
I have to connect the INT connection to GND then it works.

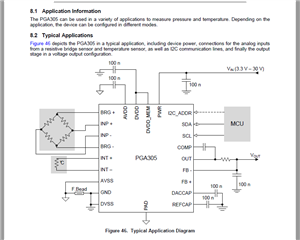

A bit confusing with the picture in the data sheet.

vs.

kind regards

Roger

+1 Bryan Lizon86 over 1 year ago in reply to Roger Schweizer

TI__Guru 53416 points

Hi Roger Schweizer,

Thanks for letting us know that the issue was resolved, I am glad it was relatively simple

-Bryan
