OPT3101: EVM calibration issue

Cherry Zhou

Part Number: OPT3101

Hi Team,

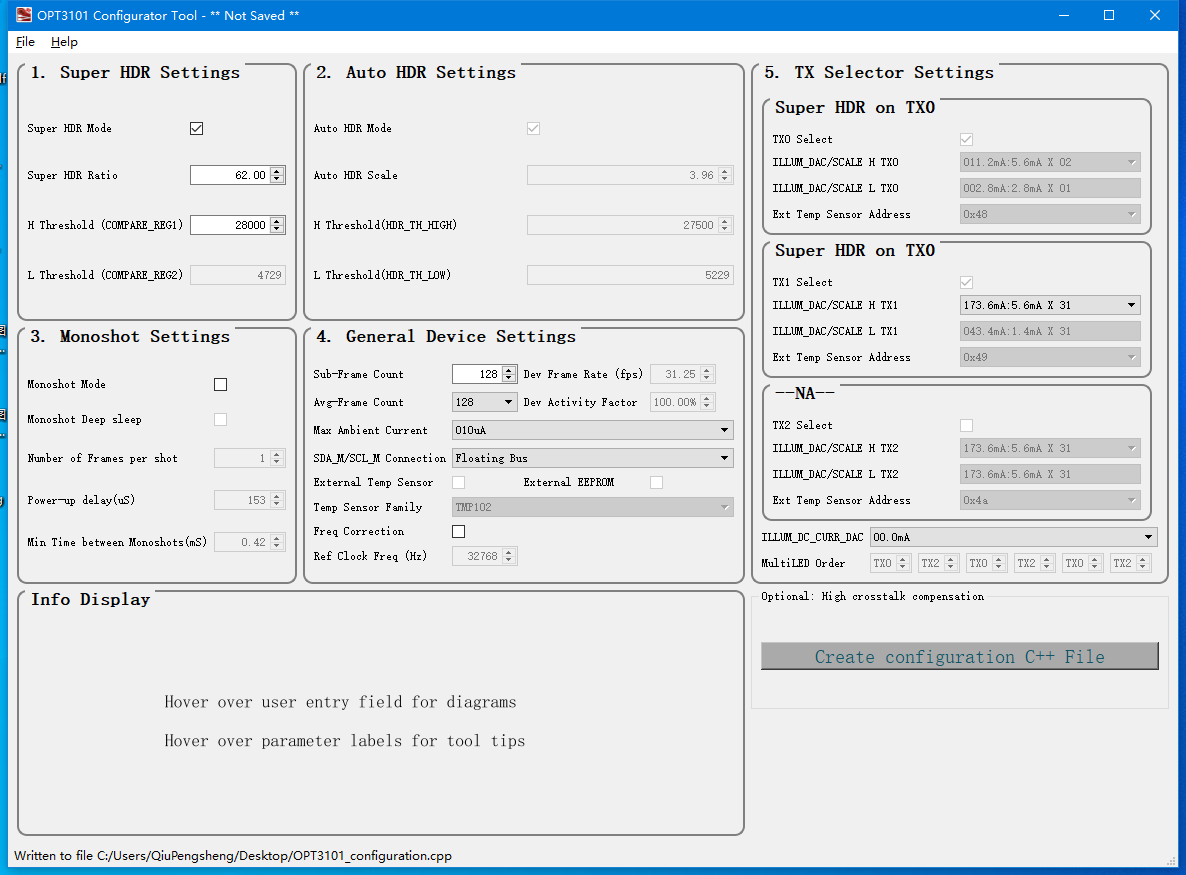

Use the OPT3101 Configurator Tool to configure the .CPP file in the SDK to Super-HDR mode as shown in figure below:

Open the INLAB_step_1 condition in the SDK to compile and download. When performing a 10mm, 20mm, 80mm, 120mm calibration with a white background, distance measurements beyond 230mm after calibration are abnormal and with a black background, distance measurements less than 80mm after calibration are abnormal.

The customer would like to know what background board should be used for calibration of INLAB_step_1 to ensure consistency? Could you help check this case? Thanks.

Best Regards,

Cherry

over 1 year ago

0 Brent Elliott over 1 year ago

TI__Expert 6800 points

Hi Cherry,

Definitely use a background with high reflectance i.e. a white background. How is the distances in OPT3101Coefficients.cpp in the SDK defined?

Thank you,

Brent Elliott

+1 Cherry Zhou over 1 year ago in reply to Brent Elliott

TI__Mastermind 22235 points

Hi Brent Elliott,

Thank you for the support.

The customer uses OPT3101EVM with MSP430F5529LP to test the entire calibration process, the OPT3101Coefficients.cpp file of the SDK uses default parameters with the distance 10 mm, 20 mm, 80 mm, 120 mm.

Thanks and regards,

Cherry

0 Gordon Varney over 1 year ago in reply to Cherry Zhou

TI__Genius 9380 points

Cherry,

Did Brent answer your question?

0 Cherry Zhou over 1 year ago in reply to Gordon Varney

TI__Mastermind 22235 points

Hi,

The customer just give some updates:

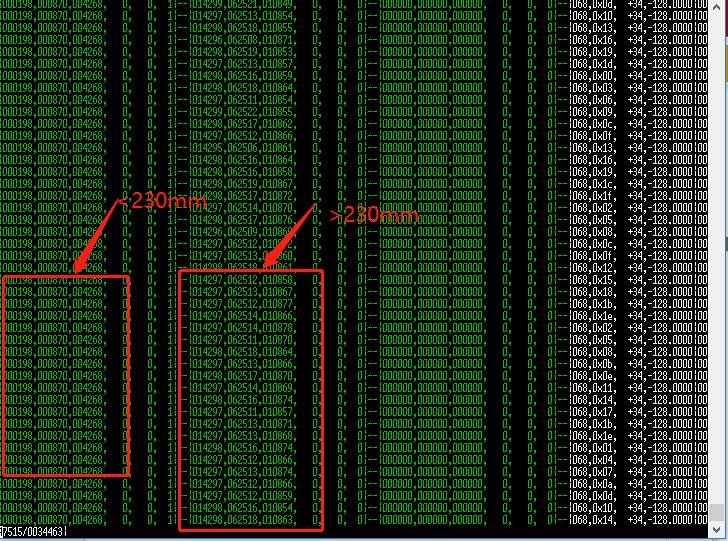

After calibration, the output data switches to the TX1 channel when the test distance exceeds 230 mm, causing the channel output distance to not be the normal value as shown in the figure:

Could you help look into it? Thanks.

Best Regards,

Cherry

0 Jalen Tate89 over 1 year ago in reply to Cherry Zhou

TI__Genius 9675 points

Hi Cherry,

Gordon will follow up with you on Monday.

Jalen

0 Gordon Varney over 1 year ago in reply to Jalen Tate89

TI__Genius 9380 points

Cherry,

Is the customer using the SDK code and an MSP430 board for the calibration? Take a look at the OPT3101Coefficients.cpp file of the SDK. To be honest the automated method using an MSP430 board and the SDK code is the best method of doing the calibration. Read the code, it will walk you through the entire process. It's p[ossible the customer is missing something in calibration that the automated version in the SDK will resolve.

0 Cherry Zhou over 1 year ago in reply to Gordon Varney

TI__Mastermind 22235 points

Hi Gorden,

May I know where can we find the automated version in the SDK?

Thanks and regards,

Cherry

0 Gordon Varney over 1 year ago in reply to Cherry Zhou

TI__Genius 9380 points

Cherry,

The SDK is the closest to an automated calibration you can get. I wasnt sure if the customer was using the SDK or trying to do the calibration manually. It looks like they are doing the calibration using the right tools.

Is the customer still having problems?
