AWR2944: Uniflash error case

edward hsu

Part Number: AWR2944
Other Parts Discussed in Thread: UNIFLASH,

Hello TI support team:

Uniflash with default "sbl_qspi.release.tiimage" and our mmw application FW injection error case occurred on device with"MX25V1635F NOR FLASH ".

UART cable connected with "Auxiliary Data Port" and SOP pin is connected.

How to complete FW injection on MX25V1635F empy flash? thank you!

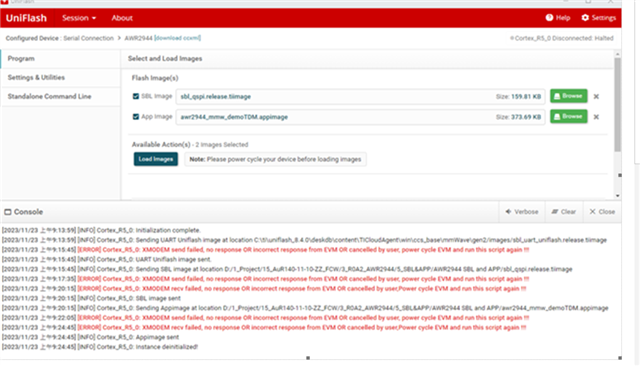

uniflash error

Auxiliary Data Port log:

"9800010200000000010402004157523239585800000000000200cdab010402000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000CC9800010200000000010402004157523239585800000000000200cdab010402000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000CC9800010200000000010402004157523239585800000000000200cdab010402000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000CC9800010200000000010402004157523239585800000000000200cdab010402000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000CC9800010200000000010402004157523239585800000000000200cdab010402000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000CC9800010200000000010402004157523239585800000000000200cdab010402000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000CC9800010200000000010402004157523239585800000000000200cdab010402000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000CC

Edward

over 1 year ago

0 Saswat Kumar over 1 year ago

TI__Mastermind 36015 points

Hello Edward,

Firstly, I hope that you are flashing in uniflash with the application port and not auxiliary port. Auxiliary port is only for receiving the data from the demo for AWR2944 on the visualizer.

From your query looks like you are using the auxiliary port. Can you please confirm this first?

Regards,
Saswat Kumar

0 Jeff Feng over 1 year ago in reply to Saswat Kumar

Prodigy 45 points

Hi Saswat Kumar

Please tell me AWR2944 application port is MSS_UARTA (B16 & C16)?

thanks

0 Saswat Kumar over 1 year ago in reply to Jeff Feng

TI__Mastermind 36015 points

Hello Jeff,

It will be easier for me if you can check a few steps and confirm if you following the same:
1) In device manager, check which COM port says application port. In the Uniflash tool also select the same application port
2) Is your device in SOP 5(flashing mode when you executing the Uniflash flashing?

Regards,
Saswat Kumar

0 Jeff Feng over 1 year ago in reply to Saswat Kumar

Prodigy 45 points

Hi Saswat

Continuing from the previous question, is the application port you mentioned MSS_UARTA (B16 & C16)?

thanks

0 Saswat Kumar over 1 year ago in reply to Jeff Feng

TI__Mastermind 36015 points

Hello jeff,

The application port can be identified in the below schematics:

Regards,
Saswat Kumar

0 edward hsu over 1 year ago in reply to Saswat Kumar

Prodigy 155 points

Hello Saswat Kumar:

Thanks for updated message.

Which action item we could active for FW injection on device with MX25V1635F empty flash?

Edward

0 Saswat Kumar over 1 year ago in reply to edward hsu

TI__Mastermind 36015 points

Hello Edward,

Can you first try step by step as I suggest and provide me feedback on each:

a) First flash the SBL_QSPI and the demo appimage and select the application COM PORT, please send me images so I can compare (from dev manager and what you select in UNIFLASH). Also, while flashing ensure that your serial ports are closed and no application other than UNIFLASH is accessing it

b) If it doesn't work, that means one of 2 things:

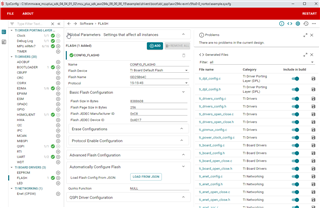

i) The flash commands need to be changes for this, you have to modify the syscfg in C:\ti\mmwave_mcuplus_sdk_04_04_01_02\mcu_plus_sdk_awr294x_09_00_00_15\examples\drivers\boot\sbl_qspi\awr294x-evm\r5fss0-0_nortos\example.syscfg :

With this change in the EVM it should work.

ii) If you are using a custom EVM you will have to check your schematics if there is any issue.

If using the TI EVM, which version are you using?

Regards,
Saswat Kumar

0 edward hsu over 1 year ago in reply to Saswat Kumar

Prodigy 155 points

Hello

How to send you images? I use "Insert" - > "Image/video/file" but it doesn't work.

Thank you!

Edward

0 Saswat Kumar over 1 year ago in reply to edward hsu

TI__Mastermind 36015 points

Hello Edward,

Please refer to the user guide, it has the steps mentioned in detail.
You can see the load images option.

Regards,
Saswat Kumar
