AWR1843BOOST: How to set up waveform by DFEDataOutputMode(frame, continuous, advanced frame)?

John

Prodigy 40 points

Part Number: AWR1843BOOST

Hi,

I'm developing it by referring to the MRR demo project.

DFEDataOutput Mode can be set to frame, continuous, and advanced frame mode.

Can you tell me how to set up waveform by mode and each meaning?

Also there are various settings in mmwave.h, where can I find the meaning and how to set each?

(I'm using the CCS v12.1 and radar toolbox 1.10.00.13, mmwave_sdk_03_06_00_00-LTS.)

over 1 year ago

0 Samhitha Bobba over 1 year ago

TI__Mastermind 22360 points

Hi John,

Refer to

mmWave SDK user guide located at C:\ti\mmwave_sdk_03_06_00_00-LTS\docs
mmWave Radar Interface Control Document (ti.com)

Regards,

Samhitha

0 John over 1 year ago in reply to Samhitha Bobba

Prodigy 40 points

Hi,

What is difference between frame mode and advanced frame mode?

Can I use 2 type of chirp in the burst when i set frame mode?

0 Samhitha Bobba over 1 year ago in reply to John

TI__Mastermind 22360 points

Hi John,

In advanced frame mode, user can configure multiple type of frames compared to legacy frame configuration where only one type of frame is allowed. Advanced frame configuration allows up to four sub-frames, with multiple bursts (upto 512) in each sub-frame. Each burst can consist of 512 unique chirps which are associated to one of the 4 profiles. In advanced frame mode, one burst is equivalent to one legacy frame configuration.

For more details, refer to (+) AWR1843BOOST: mm-wave demo: clarification on subframes and frame - Sensors forum - Sensors - TI E2E support forums.

Regards,

Samhitha

0 John over 1 year ago in reply to Samhitha Bobba

Prodigy 40 points

Hi Samhitha,

The information you provided helped me a lot. I have one more question for clarity.

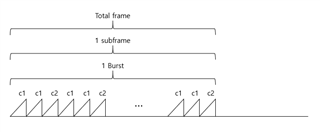

As shown in the picture below, I would like to use 1 subframe, 1 burst, and 2 types of chirp. Then should I use advanced frame mode instead of frame mode?

Thank you.

0 Samhitha Bobba over 1 year ago in reply to John

TI__Mastermind 22360 points

Hi John,

You can use legacy frame mode in this case.

Regards,

Samhitha
