AWR2944EVM: Can you provide antenna pattern?

Jason
Prodigy 90 points
Part Number: AWR2944EVM

Hello,

Can you provide antenna azimuth/elevation pattern files as CSV, mat, etc.?

Thanks,

Jason

  • 0
    TI__Mastermind 20605 points

    Hi Jason,

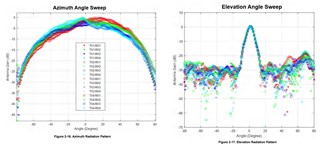

    The antenna pattern is provided in the AWR2944EVM Userguide. Posted the same below.

    I'm not sure what data it is that you require in a CSV or a MAT file, but for all your possible requirements, you should be able to look at the attached image and write an array as such for your required processing. Please let me know if you require more information or if I missed something.

    Regards,

    Kaushik

  • 0 in reply to Kaushik Gowda
    Prodigy 90 points

    Hi Kaushik

    I want to know the antenna beam pattern, not the antenna design.

    The user guide only shows antenna beam pattern graphs.

    Can I get a csv or mat file of the antenna beam pattern graphs above?

    Thanks,

    Jason

  • +1 in reply to Jason
    TI__Mastermind 20605 points

    Hi Jason,

    Thanks for clarifying. Unfortunately, we do not provide the data files for these plots. We expect customers to refer to the plots as they have been published in the user guide.

    Regards,

    Kaushik
