LM94021: Bare Die availability

Nischitha Kumari B

Prodigy 100 points

Part Number: LM94021

Tool/software:

Hello,

LM94021BIMGX/NOPB is listed under bare die https://www.ti.com/die-wafer-services/products.html#3278=Sensors&sort=1192;desc&.

But bond pad configuration data for the bare die is not available in the datasheet https://www.ti.com/lit/ds/symlink/lm94021.pdf?ts=1716791467133&ref_url=https%253A%252F%252Fwww.ti.com%252Fproduct%252FLM94021

Would you be able to provide us these requested details?.

Thanks,

Nischitha

over 1 year ago

0 Sakeenah Khan over 1 year ago

TI__Expert 3455 points

Hi Nischitha,

I am happy to help with the request. Let me check on the details and get back to you.

Best regards,

Sakeenah

0 Sakeenah Khan over 1 year ago in reply to Sakeenah Khan

TI__Expert 3455 points

Hello Nischitha,

Thank you for your patience.

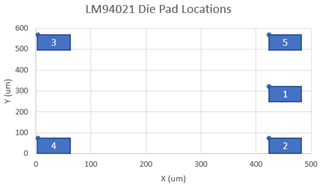

The bond pad size is 69um x 69um. Minimum bond pad pitch is 247um. Here are the coordinates of the upper left corner of each bond pad.

Pad 1: (424.57, 320.1)

Pad 2: (424.57, 73.15)

Pad 3: (4.42, 567.25)

Pad 4: (4.32, 73.15)

Pad 5: (424.57, 567.25)

Best regards,

Sakeenah Khan

0 Nischitha Kumari B over 1 year ago in reply to Sakeenah Khan

Prodigy 100 points

Thank you! Could you please provide me TI datasheet for the same.

Regards,

-Nischitha

0 Sakeenah Khan over 1 year ago in reply to Nischitha Kumari B

TI__Expert 3455 points

Hi Nischitha,

I was able to find the Die Datasheet to share. However unfortunately, it appears the bare die sale has been obsoleted. We will have another engineer from the field team reach out to you directly to discuss this further.

Best regards,

Sakeenah Khan

snao255.pdf

0 Nischitha Kumari B over 1 year ago in reply to Sakeenah Khan

Prodigy 100 points

Sure. Thanks!
