IWRL6432AOPEVM: How to flash image and debugging if the sensor area and expandable area are separated?

Daniel Cheng1

Mastermind 7095 points

Part Number: IWRL6432AOPEVM
Other Parts Discussed in Thread: IWRL6432AOP

Tool/software:

Hi Expert,

If the sensor area and expandable area are separated, can I still perform programming and debugging?

How to flash image and debugging if the sensor area and expandable area are separated?

Thanks

Daniel

over 1 year ago

0 Ankit Mohanty over 1 year ago

TI__Genius 9650 points

Hi Daniel,

It is recommended not to separate the expandable area and sensor area. Could you please share the use case requirement?

It is possible to perform programming but debugging over JTAG will not be possible after separating the sensor and the expandable area.

Regards

Ankit

0 ChaoChin Huang over 1 year ago in reply to Ankit Mohanty

Prodigy 220 points

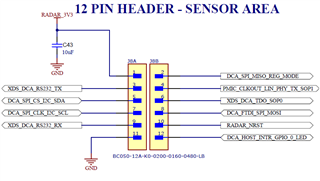

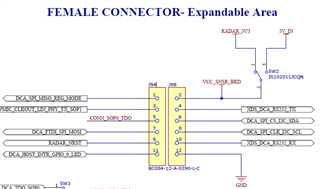

Can the sensor area be broken off and then programmed by connecting J8 and J9? It seems possible according to the circuit diagram

0 Ankit Mohanty over 1 year ago in reply to ChaoChin Huang

TI__Genius 9650 points

Hi,

Yes, the understanding is correct. It can be programmed by connecting J8 and J9 but 1.8V, 1,2V and 1.2V RF needs to be supplied externally as the connector J9 will only provide 3.3V supply. Since, IWRL6432AOP is working as 3 rail Power optimized topology, 1.8V, 1.2V and 1.2V RF needs to be fed externally from Test Points TP14, TP15, and TP16 externally.

Regards

Ankit
