TMP102: Alert pin function

Roy Chou1

Part Number: TMP102
Other Parts Discussed in Thread: TMP108, TMP119, TMP117, TMP116, HDC2080, HDC2010, TMP4718, TMP390

Tool/software:

Hi Team,

We would like to find the solution that can meet below requirement.

If the temp above the higher limit or under lower limit, the alert pin need to report low. Do we have the solution?

Regards,

Roy

over 1 year ago

0 Ren Schackmann over 1 year ago

TI__Mastermind 43785 points

TMP108 - 6 ball BGA

TMP116 / TMP117 / TMP119 - high accuracy family

HDC2010 / HDC2080 - humidity sensor family

TMP4718 - remote sensor

TMP390 - resistor programmable switch

thanks,

ren

0 Roy Chou1 over 1 year ago in reply to Ren Schackmann

TI__Genius 16090 points

Hi Ren,

Thank you for your information. I review the TMP116, but still has some questions.

Datasheet spec :

Our request : Do we have the part meet below requirement?

I'm not sure how to define these duration.

Regards,

Roy

0 Ren Schackmann over 1 year ago in reply to Roy Chou1

TI__Mastermind 43785 points

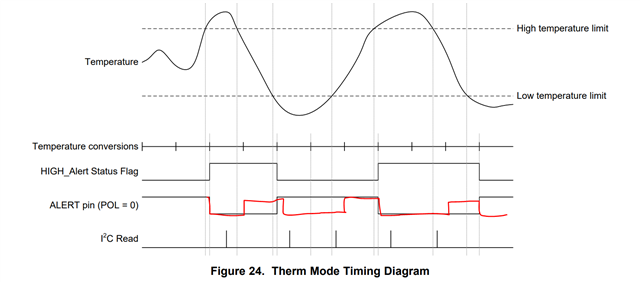

In Alert Mode, the TMP116 de-asserts ALERT when the MCU queries the TMP116 (known as servicing the interrupt.) You want to use THERM mode instead, which is shown in Figure 24.

thanks,

ren

0 Roy Chou1 over 1 year ago in reply to Ren Schackmann

TI__Genius 16090 points

Hi Ren,

In our application, we don't have MCU and so we need alert pin reporting low(or high) when temp above high limit or under low limit like below.

It looks like that TMP116 still can't meet our requirement. Do you have any suggestion?

Regards,

Roy

0 Ren Schackmann over 1 year ago in reply to Roy Chou1

TI__Mastermind 43785 points

TMP390 is the product that was really designed for this situation. The two outputs can be tied together.

TMP108 / HDC2010 / TMP4718 must be configured for Comparator mode after power-on.

ren
