MMWAVE-STUDIO: How to save the data captured after post proc

MUHAMMAD MUNIR

Part Number: MMWAVE-STUDIO
Other Parts Discussed in Thread: AWR1843BOOST

Tool/software:

right now actually i can save the data and the figure after post proc that means it can be read, but how can i saved the data or if it will save automatically how can it be find the file?

over 1 year ago

0 aozer over 1 year ago

TI__Mastermind 30715 points

Hello,

The data is saved in the specified .bin file in the PostProc folder. We have some basic examples of how to process the bin file in the below app note.

https://www.ti.com/lit/an/swra581b/swra581b.pdf

Also, we have some basic matlab examples in the below directory.

C:\ti\mmwave_studio<Version_Number>\mmWaveStudio\MatlabExamples

Regards,

Adrian

0 MUHAMMAD MUNIR over 1 year ago in reply to aozer

Prodigy 80 points

right now Im using xwr1843, is it same i need to have the mmwave SDK to read the data?

0 aozer over 1 year ago in reply to MUHAMMAD MUNIR

TI__Mastermind 30715 points

Hello,

No, SDK has nothing to do with processing the raw data capture. SDK is for developing embedded application on the radar chip.

Please review the mmwave studio user guide and watch the DCA1000 training video to understand about mmwave studio.

DCA1000 Training Video | Video | TI.com

Regards,

Adrian

0 MUHAMMAD MUNIR over 1 year ago in reply to aozer

Prodigy 80 points

I got this one the data in BIN file what does it mean? and how can i read it?

0 aozer over 1 year ago in reply to MUHAMMAD MUNIR

TI__Mastermind 30715 points

Hello,

I already gave you a link to an app note that will help.

https://www.ti.com/lit/an/swra581b/swra581b.pdf

I also gave you a location to example matlab scripts to help read the captured data.

C:\ti\mmwave_studio<Version_Number>\mmWaveStudio\MatlabExamples

Regards,

Adrian

0 MUHAMMAD MUNIR over 1 year ago in reply to aozer

Prodigy 80 points

okay thanks,

my adc data filewas saved here but what does it mean with the figure below? i got it from user guide that you gave to me before

0 aozer over 1 year ago in reply to MUHAMMAD MUNIR

TI__Mastermind 30715 points

Hello,

The data you captured is in the adc_data.bin file. It has nothing to do with CCS, so you should not be trying to use CCS. The documents I provided you explain how you can process this data. I cannot do all of this for you, you need to spend some time understanding it yourself and look through the documentation or search on E2E.

Regards,

Adrian

0 MUHAMMAD MUNIR over 1 year ago in reply to aozer

Prodigy 80 points

okay thank you,

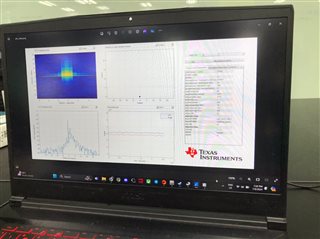

actually my problem right now we can got the data like figure below after post proc

so based on this figure how can i save and read data back?

0 aozer over 1 year ago in reply to MUHAMMAD MUNIR

TI__Mastermind 30715 points

As mentioned, the data is saved in the adc_data.bin file. You can post process it in MATLAB using the examples which have been provided as a starting point.

Regards,

Adrian

0 MUHAMMAD MUNIR over 1 year ago in reply to aozer

Prodigy 80 points

okay thanks, actually im using DCA1000 and AWR1843BOOST but in the file didn't have any example for 1843 , so how can i know the example for post process my data in MATLAB?

0 aozer over 1 year ago in reply to MUHAMMAD MUNIR

TI__Mastermind 30715 points

Hello,

You can modify the examples we have provided. Please spend some time working on this yourself, we are not going to do the work for you. We have provided you with sufficient information to get started.

Regards,

Adrian
