IWR6843: IWR6843 firmware update over CAN

Please let me know your inputs.

Hi

Thanks for your query. Please allow us a couple of days to respond

Regards

Hi Santosh,

How can I flash can sbl to radar? Using uniflash? And where can I get pc based can application?

Any document that I can refer to flash the application using sbl?

Thanks,

Manoj

Hi Santosh,

I found pc-based application called "CAN_Metaimage_Flasher" under the tools folder of "radar_toolbox_2_10_00_04" also I have "radar_toolbox_2_20_00_04". But in both the toolbox when I try to open "CAN_Metaimage_Flasher" it opens and closes automatically. Some black screen comes and disappears immediately.

Could you please help me in this.

Thanks,
Manoj

Hi Santosh,

Sure, I will try to run the executable in a command line with the meta image by referring the flow diagram

Thanks,
Manoj

Hi Santosh,

I flashed the CAN sbl binary(xwr18xx_sbl_demo.bin) in radar using UniFlash successfully. I have connected radar to pc and opened serial terminal (Real Term) and pressed that switch but i didn't get any messages on terminal. In my earlier message I have shared that thread link for reference in that also they have faced same issue. To debug the code, I don't have JTAG or any debugging tool. Please let me know your inputs.

Thanks,
Manoj

Hello Manoj.

Can you confirm if you have switched the device to functional mode after flashing the SBL binary?

Sincerely,

Santosh

Yes, I have switched the device to functional mode after flashing the SBL binary. And then connected to the terminal and pressed reset button but no debug messages I have seen on terminal.

Is there any linker file which is to be used specifically? Currently I am using "mss_can_sbl_linker.cmd" this linker file.

I tried putting some printf statement rather I have commented "if" statement in sbl.c file shown in below image to get the printf statements but still I am not able to get debug messages.

Thanks,
Manoj

Hello Manoj.

I just looked through the release notes and it looks like it was developed to support the 1843, which has different firmware than the 6843.  Can you try rebuilding the SBL application using the latest 6843 firmware, which can be found in SDK 3.6 under the firmware/radarss folder.

Sincerely,

Santosh

Hi Santosh,

Yes, Santosh you are right. firmware was developed to support the 1843, by referring to AWR6843AOPEVM: I'm trying to use CAN_SBL_18xx from radar tool box _02_10_00_04 to work on AWR6843OPEVM - Sensors forum - Sensors - TI E2E support forums this link I have ported it for 6843.

SDK 3.6 under the firmware/radarss folder contains only some binary files and release notes. I don't find 6843 firmware in it. Please find the below screenshot,

Thanks,
Manoj

Hello Manoj.

The file you have selected in the screenshot is the firmware.

Sincerely,

Santosh

So, I shall directly flash that binary in radar using uniflash? And is it a CAN bootloader binary?

Thanks,

Manoj

No.  You will need to rebuild the CAN project with the 6843 firmware to be able to run it on the 6843 device as the 1843 and 6843 firmwares are different.  Then you will flash the new CAN SBL image via uniflash.

Sincerely,

Santosh

Hi Santosh,

Sorry I am little confused here.

1. The highlighted file in my screenshot is a .bin file. So this .bin file I need to include in my project and rebuild it?

2. I have already built 1843 CAN sbl for 6843 by making required changes in it. Like selecting target as 6843 instead of 1843. Mux pins macros I have changed for 6843 etc. by following the another thread which is mentioned in my first message. Anything else I have to do apart from this?

Thanks,

Manoj

Hello Manoj.

To create the multicore image for the IWR6843, the MSS and BSS images are combined to form the final .bin file.  Currently when you build this project, you will be building it with the 1843 rprc binary, which is included from the SDK.  However, you will need to update this firmware to be the 6xxx rprc binary so that the combined image will run on the 6843.  I would recommend going into the projectspec and updating the postbuildstep to use the firmware from SDK 3.6, and also update all the libraries to use the 6843 libraries.  Then try rebuilding the project and seeing if it runs on the 6843.

Sincerely,

Santosh

Hi Santosh,

Thank you so much for clarification. I will try this and will let you know if I face any issues.

Thanks,

Manoj

Sounds good, please ping this thread if you have any other issues.

Sincerely,

Santosh

Hi Santosh,

I tried it. But still, it didn't work. Please find the attached images for your reference. Let me know if anything is wrong in it.

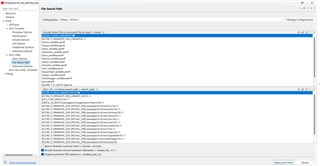

I have attached project explorer screenshot, warnings which I am getting after building project and libraries included for IWR6843.

Let me know if I am missing anything.

Thanks,
Manoj

Ok thank you Manoj.  Let me look into this and provide an update by the end of the day tomorrow.

Thank you for your patience.

Sincerely,

Santosh

Hi Santosh,

Any update on this?

Thanks,
Manoj

Hello Manoj.

Apologies for the delay.  I am still looking into this; I will provide an update by the end of the day Wednesday.

Sincerely,

Santosh

Hi Santosh,

No problem. Let me know the update by EOD Wednesday.

Thanks,
Manoj

Hello Manoj.

Can you also confirm that you have updated the pin muxing done in the SW to match that of the 6843 and not of the 1843 as that will also be different between the devices?

Sincerely,

Santosh

Hi Santosh,

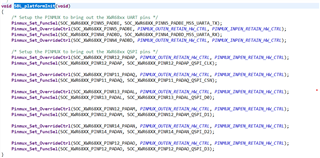

I am attaching pin muxing code part below,

Is this configuration for pins correct?

Thanks,
Manoj

Sure Santosh.

Thanks,
Manoj

No problem Manoj.

If you have any other questions, please feel free to post them on E2E.

Sincerely,

Santosh

Hi Santosh,

Once you confirm pin muxing then let me know.

Thanks,
Manoj

Manoj, can you confirm where you got the pin-muxing info from?  Is that the default from the CAN SBL demo?  Or from a 6843 demo?

Sincerely,

Santosh

Hi Krishan,

I got this pin muxing from CAN SBL demo code of 1843. So in that pin muxing instead of xwr18xx I have changed it to xwr68xx. So I have ported CAN SBL demo from 1843 to 6843.

Thanks,

Manoj

That looks correct to me.  For future pin-muxing references please refer to any 6843 examples for such information as it will be common amongst most 6843 demos.

Sincerely,

Santosh

Sure Santosh.

So, do you find any missing part because of which I am not able to get serial debug prints?

Please let me know.

Thanks,
Manoj

No, I did not see anything different.  These prints will not happen over CAN but over the serial terminal via UART.  Are you checking here as well or are you looking for the message over the CAN interface?

Sincerely,

Santosh

Hi Santosh,

Correct, it will happen over serial terminal via UART and I am looking for messages over UART using serial terminal pc application.

Thanks,

Manoj

Hi Santosh,

Here I am using sbl_xwr68xx.c file, so I believe pinmuxing is done correctly.

Could you please try at your end.

Thanks,
Manoj

Understood; I was just asking to check to see if there are any differences outside of the pinmuxing and the firmware for the 68xx and 18xx sbl code.  I will try it out on my end and see if I am able to get it working.  Have you tried debugging this application to see if it is getting stuck anywhere in the execution prior to getting to any of the print statements?

Sincerely,

Santosh

Hi Santosh,

Sorry, I don't have debugging tool so could not debug.

Thanks,
Manoj

If you are using a custom device, I would also recommended trying the application on a 6843 EVM + mmWave ICBOOST so that you can debug your software.  I am still looking into it on my end; I will have an update on the status of the application on my end by the end of day Monday.  In that time could you try setting it up on a 6843 EVM to see if the behavior is the same and if so, where the code is getting stuck?

Sincerely,

Santosh

Hi Santosh,

I tried on EVM. It gives me same behavior. It doesn't output data on serial. But I don't have debugging tool so I can't identify exactly where the code is getting stuck.

Did you get a chance to look into the same at your end?

Thanks,
Manoj

I am seeing similar behavior on my end; let me look into this further and I will provide an update by the end of the day Thursday.

Sincerely,

Santosh

Hello Manoj.

There seems to be an issue with the xwr68xx_sbl_demo.bin and we are looking into this issue; if you are able to acquire an ICBOOST EVM, please do so and test with the _mss.bin as that seems to work if loaded directly into memory via the debugger.  We will have an update for you regarding the xwr68xx_sbl_demo.bin by next week.

Sincerely,

Santosh

Hi Santosh,

Thank you for an update. Take your time. I will try to acquire ICBOOST EVM.

Thanks,

Manoj

Thank you Manoj for your patience.  Please also let me know if you are able to run it with the ICBoost in debug mode.

Sincerely,

Santosh

Hi Santosh,

I didn't get a chance to acquire ICBoost yet. But did you find any lead at your end since you were also facing the same issue.

Thanks,
Manoj

HI Manoj,

Santosh is out today. He will respond tomorrow. Thank you for your patience.

Best,

Nate
