IWR6843LEVM: What does the SOP mean in the TI-IWR6843L EVM User's Guide

Dave Wang

Part Number: IWR6843LEVM

Tool/software:

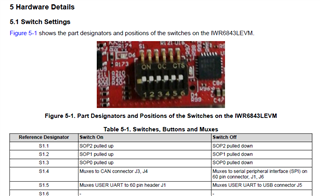

In Section 5 of the the User's Guide IWR6843LEVM:

Do you know the SOP0/1/2 pulled up/down means?

I found that when connected to DCA1000 and using the Adc_Data_Capture_Tool_DCA1000_CLI or studio_cli tool in radar toolbox, the settings of the switch S1 are also different.

11 months ago

0 Pedrhom Nafisi 11 months ago

TI__Mastermind 23247 points

Hello,

SOP stands for Small Outline Package, which is a type of surface-mount integrated circuit (IC) package. Pulling up/enabling the SOPs in different on/off states allows for different device modes. It is for this reason going from Flashing Mode to Functional Mode and vice versa requires a change in one of the SOP switches.

Best Regards,

Pedrhom

0 Dave Wang 10 months ago in reply to Pedrhom Nafisi

Prodigy 100 points

Got it, thank you very much for your reply, btw, do you know what the pattern of SOP0, SOP1, and SOP2 stands for?

0 Pedrhom Nafisi 10 months ago in reply to Dave Wang

TI__Mastermind 23247 points

Hello,

The main two modes that one would have interest in is functional and flashing modes. The third is for debugging. You can check the different modes on the EVM operational modes guide.

https://dev.ti.com/tirex/explore/node?a=1AslXXD__2.20.00.05&node=A__ACzleIuZ4g1GuBmtlq-cGg__radar_toolbox__1AslXXD__2.20.00.05

Best Regards,

Pedrhom

0 Dejan Micic 10 months ago in reply to Pedrhom Nafisi

Prodigy 50 points

SOP definitely means Small Outline Package, but not in this context. I'm also curious if anyone knows what SOP stands for in the context of signals (SOP0, SOP1).

0 Dejan Micic 10 months ago in reply to Dejan Micic

Prodigy 50 points

Probably "Setup OPerational modes". Right?

0 Dejan Micic 10 months ago in reply to Dejan Micic

Prodigy 50 points

SOP - Sense on power

"These pins on the device boundary are scanned by the bootloader firmware and choice of mode for bootloader operation is made"

0 Scott Morrill 9 months ago in reply to Dejan Micic

Prodigy 70 points

thank you SOP......Sense-On-Power, so many TI Launch Pad docs never actually define that acronym for you. I mean that I didn't get what the pins had been doing it just I couldn't define it in my mind SOP start-0n-pins, ugh, system operate. Maybe its just me but other micros just call them boot mode or boot strap.
