AWRL1432: Failed with MMWave_factoryCalibConfig

Chris Meng

Mastermind 37846 points

Part Number: AWRL1432

Tool/software:

Hi,

My customer made own AWRL1432 board, but failed with MMWave_factoryCalibConfig.

The return value of rl_fecssRfFactoryCal is 0, but failed in below if code.

MMWave_factoryCalibConfig()

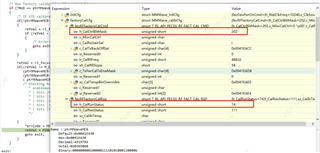

It seems some calibration is not PASS. ptrMMWaveMCB->factoryCalCfg.fecRFFactoryCalRsp.h_CalRunStatus is 74 which is not same as 202(0xCAU).

Same code can work ok on AWRL1432 ES2.0 EVM.

Customer has checked the 1.2V and 1.8V power rail and didn't see any drop during test.

Would you pls kindly advise what may cause the problem?

Thanks,

Chris

9 months ago

0 Jin Lee 9 months ago

TI__Intellectual 2532 points

Hi Chris,

Based on the run status, Tx power is not being properly calibrated. I'm looping in HW apps to advise here.

Could you share the specific demo and configuration being used?

Thank you,

Jin

0 Chris Meng 9 months ago in reply to Jin Lee

TI__Mastermind 37846 points

Jin,

Customer is running BSD demo v2.2 with default cfg in the package.

Thanks,

Chris

0 E. Shareef 9 months ago in reply to Chris Meng

TI__Genius 16640 points

Hello,

Do you have any experience working with mmWave Studio? I ask because I would like to run the TX outpower and the TX Ball break monitors to observe the health of the TX.

Thanks,

E. Shareef

0 Chris Meng 9 months ago in reply to E. Shareef

TI__Mastermind 37846 points

Shareef,

I don't think customer's board can connect to mmwave studio. As customer failed at init calibration, is it still ok to monitor the TX power and TX ball break at this condition? Can customer ignored current factory calibration error and monitor TX power and TX ball break?

Thanks,

Chris

+1 Chris Meng 9 months ago in reply to Chris Meng

TI__Mastermind 37846 points

Shareef,

It seems a power supply issue on customer's board. I will close this thread once got confirm from customer.

Thanks,

Chris

0 E. Shareef 9 months ago in reply to Chris Meng

TI__Genius 16640 points

Ok Chris,

Marking as resolved.

-E. Shareef
