AWR2944: Question for HWA's channel combining feature

Dennis Tsai
Prodigy 60 points
Part Number: AWR2944

Tool/software:

Hi TI's expert,

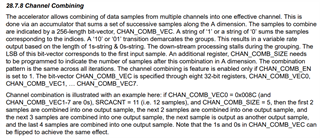

For the channel combining feature described at TRM 28.7.8 is not clear.

How can I set the registers if I need to combine data from four channels?

Please share some executable example.

Appreciated!!

BRs,

Dennis

  • 0
    TI__Mastermind 20880 points

    Hi Dennis,

    Currently we do not have any example for Channel combining. I can share few code snippets that can be used as a reference.

    The following piece of code sets the bits CHANCOMB_EN of the PREPROC register in the paramset.

    hwaParamCfg[paramsetIdx].accelModeArgs.fftMode.preProcCfg.chanCombEn = HWA_FEATURE_BIT_ENABLE;

    Also set the HWA common config mask to specify which fields are valid when HWA_ConfigCommon API is called.
    HWA_COMMONCONFIG_MASK_CHANCOMB_VEC_SIZE mask should be used to set channel combining vector and the channel combining size when HWA_ConfigCommon API is called.
    /* Config Common Registers */
obj->azimFFTCfg.hwaCommonConfig.configMask = HWA_COMMONCONFIG_MASK_STATEMACHINE_CFG |/* numLoops, paramStartIdx, paramStopIdx combined here */
                                        HWA_COMMONCONFIG_MASK_TWIDDITHERENABLE|
                                        HWA_COMMONCONFIG_MASK_DCSUB_SWVAL |
                                        HWA_COMMONCONFIG_MASK_CHANCOMB_VEC_SIZE|
                                        HWA_COMMONCONFIG_MASK_COMPLEXMULT_SCALEARRAY;

/* Configure the channel combining size register */
obj->azimFFTCfg.hwaCommonConfig.chanCombConfig.size = cfg->staticCfg.numSteerVecs - 1;

/* Configure channel combining vector */
for(i = 0; i < 8; i++)
{
    obj->azimFFTCfg.hwaCommonConfig.chanCombConfig.vector[i] = 0x33333333; // Sequence of 1100
    // The LSB of the bit-vector corresponds to the first input samples
}

/* Now configure the HWA common config registers by calling HWA_configCommon API */
retVal = HWA_configCommon(obj->hwaHandle, &obj->azimFFTCfg.hwaCommonConfig);
    The above configuration combines two consecutive samples from the membank. If you have the data present in the membank in the required format, then you can add the 4 consecutive samples by configuring channel combining vector accurately. It should follow '11110000' sequence.

    For example, chanCombConfig.vector[0] = 0xF0F0F0F0.

    Regards,

    Samhitha

  • 0 in reply to Samhitha Bobba
    Prodigy 60 points

    Hi Samhitha,

    Thanks for your reply. Is there any restriction on the data format to be combined? Can I combine the complex number or log2 format data?

    BRs,

    Dennis

  • +1 in reply to Dennis Tsai
    TI__Mastermind 20880 points

    Hi Dennis,

    Dennis Tsai said:
    Is there any restriction on the data format to be combined? Can I combine the complex number or log2 format data?

    Channel combining performs simple addition. If there are two samples a, b which are input to the channel combining block, then the output will be a+b. You can add two complex numbers or real numbers. When you say log2 format, if you mean log2(a+b) or log2(a) + log2(b) operations, then it's not possible.

    Regards,

    Samhitha

  • 0 in reply to Samhitha Bobba
    Prodigy 60 points

    Thanks Samhitha!
