LM60: BIZ

YUKI OOIZUMI

Part Number: LM60

Tool/software:

I wired this product according to the data sheet, but it did not work properly and more than 1A flowed through the product. This time, I did not wire it according to the data sheet, but swapped +Vs and GND, and it worked properly. In other words, there is an error in the data sheet, so I would like you to correct it. Thank you in advance.

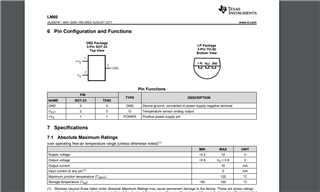

There is an error in the package on the right (TO-92).

7 months ago

0 Simon Rojas Avila 7 months ago

TI__Expert 7170 points

Hi Yuki,

Could you please share a picture of the configuration with labeled wires when the device is working properly?

Best regards,

Simon Rojas

0 YUKI OOIZUMI 7 months ago in reply to Simon Rojas Avila

Prodigy 10 points

This is the wiring when it is working properly.

Redwire:5V

Whitewire:GND

Greenwire:Vout

+1 Simon Rojas Avila 7 months ago in reply to Simon Rojas Avila

TI__Expert 7170 points

Hi Yuki,

I was able to see the pictures although I'm not sure why it is not showing on this thread.

I do not see any discrepancies between your connections and the datasheet. Keep in mind that the datasheet is showing a bottom view of the pinout where the curved portion of the package is on the bottom. With this in mind, if looking at the device from the top, then V+ would be on the right side and GND on the left--as shown in your picture.

Best regards,

Simon Rojas
