AWR2944P: How to enable OSC_CLK_OUT output?

Jack Xin

Part Number: AWR2944P
Other Parts Discussed in Thread: AWR2243

Tool/software:

We tried to enable OSC_CLK_OUT_ETH and OSC_CLK_OUT, but there is very little description about them in the TRM documentation

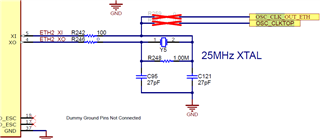

We hope to use this to replace the 25MHz XTAL, as shown below:

However, when measuring with an oscilloscope, there is no Clock output. How can we complete this function?

7 months ago

0 E. Shareef 7 months ago

TI__Genius 16520 points

Hello,

OSC_CLK_OUT should be enabled by default. Where are you probing for OSC_CLK_OUT pin?

0 Jack Xin 7 months ago in reply to E. Shareef

Prodigy 20 points

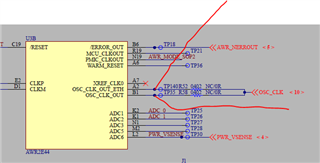

We pull the wires directly from A2 and B1 for measurement

0 E. Shareef 7 months ago in reply to Jack Xin

TI__Genius 16520 points

Let me double check this on an EVM and get back to you. Ideally the OSC CLK should enabled by default.

-E. Shareef

0 Jack Xin 7 months ago in reply to E. Shareef

Prodigy 20 points

Are there any test results?

0 E. Shareef 7 months ago in reply to Jack Xin

TI__Genius 16520 points

Hello Jack,

Allow me to get back to you on this by tomorrow

E. Shareef

0 E. Shareef 6 months ago in reply to E. Shareef

TI__Genius 16520 points

Hello

OSC_CLK is enabled by default.

0 Jack Xin 6 months ago in reply to E. Shareef

Prodigy 20 points

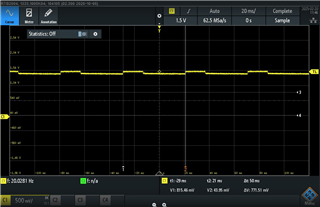

This is the wave pattern we measured.Could you please help me to post the measurement method and the measurement waveform?

0 E. Shareef 6 months ago in reply to Jack Xin

TI__Genius 16520 points

Hello,

We will respond to how the waveform is supposed to look shortly.

E. Shareef

+1 E. Shareef 6 months ago in reply to E. Shareef

TI__Genius 16520 points

Hello,

I stand corrected here. The OSC_CLKOUT and OSC_CLKOUT_ETH are NOT enabled by default on AWR2944x devices.

This signal is enabled by default on AWR2243. Below is the info on how this signal:

OSC_CLKOUT should be 1.4V to GND, single-ended 50MHz square-wave
OSC_CLKOUT_ETH should be a 1.8V to GND, single ended 25MHz square wave.

Both these signals cannot be enabled at the same time.

Regarding how to enable, please see below ICD: mmWave-Radar-Interface-Control_v3p39.pdf

Hope this helps,

E. Shareef

Sensors

Sensors forum

AWR2944P: How to enable OSC_CLK_OUT output?
